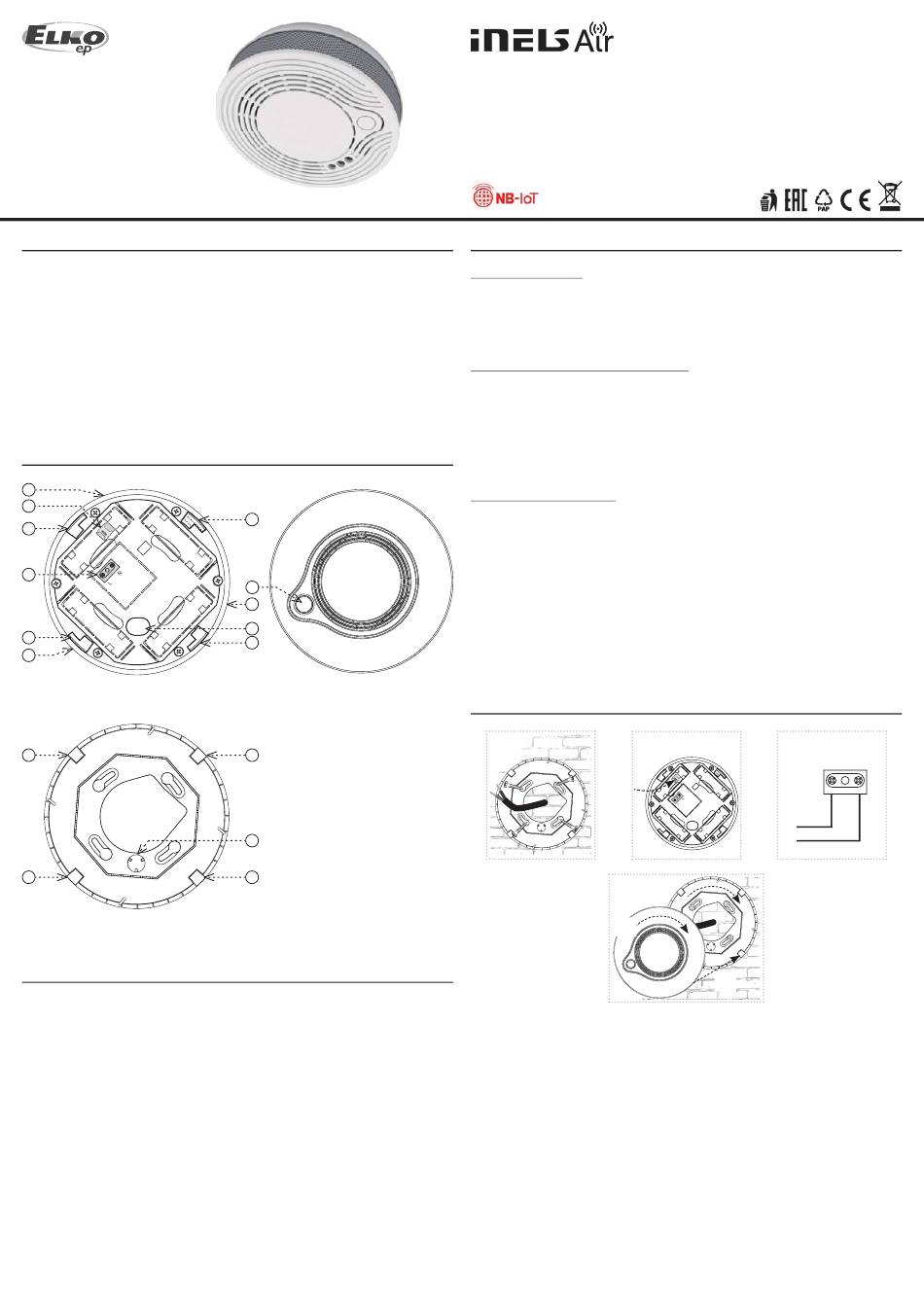

Elko Inels Air AirQS-100NB Manual

ELKO EP, s.r.o.
Palackého 493
769 01 Holešov, Všetuly
Czech Republic
Tel.: +420 573 514 211
e-mail: elko@elkoep.com
www.elkoep.com
Made in Czech Republic
02-60/2019 Rev.: 0

Characteristics

• AirQS-100 - monitors the CO content of the room and also measures the actual
2
temperature, humidity and light intensity in the room.
• Anti-sabotage: If access to the device is unauthorized, a message is immediately
sent to the server.
• Thanks to the wireless solution and NB-IoT communication, it can communicate
instantly to your chosen location and be operated immediately.
• Data is sent to the server from which it can be subsequently displayed as a smart-
phone, application, or Cloud notifi cation.
• Power supply 110-240 V AC.
Description
1
8
2
3
2
1
The underside of
the detector
5
5
The inner side of
the base
Cloud app assignment
It is done in your Smartphone application. Enter the relevant data located on the detec-
tor cover into the application.
2
7
1
4
2
The front of the
detector
5
1. Two-color LED position
2. Holes for locking segments
3. Supply voltage terminal
4. Tamper position
5. Secure segments
6. Probe for magnet scanning
6
tampermenty
7. Button SET
5
8. NanoSIM slot

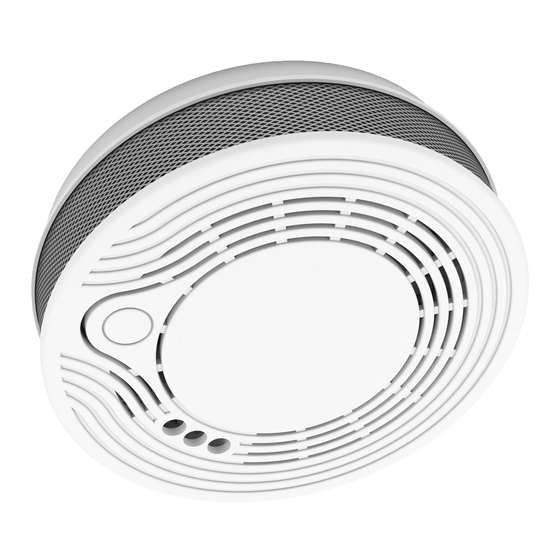

AirQS-100NB
Air quality sensor - carbon dioxide (CO
General instrucions
Internet of Things (IoT)
• The IOT wireless communications category describes the Low Power Wide Area
(LPWA). This technology is designed to provide full-range coverage both inside and
outside buildings, energy-saving and low-cost operation of individual devices. The
NarrowBand network is available to use this standard.
Information about the NarrowBand network
• The network provides two-way communication and the only one to use the licensed
LTE band. Our devices allow band 1 (2100MHz), Band 3 (1800MHz), Band 8 (900MHz),
Band 5 (850MHz), Band 20 (800MHz) and Band 28 (700MHz).
• It uses this SIM card technology for each device.
• The advantage of NarrowBand is the use of already built-up grids, which ensures suf-
fi cient reception outside and inside buildings.
• For more information on this technology, please visit www.vodafone.cz
Caution for proper operation:
• Products are installed according to the wiring diagram given for each product.
• For proper device functionality, it is necessary to have suffi cient coverage of the se-
lected network at the installation site.
• At the same time, the device must be registered in the network. Successful device reg-
istration on a given network requires a charge for traffi c.
• Each network off ers diff erent tariff options - it always depends on the number of mes-
sages you want to send from your device. Information on these tariff s can be found in
the current version of the ELKO EP pricelist.

Assembly

1
4
b)
1. Place the base at the desired location (on a fl at surface) so that the power supply is lo-
cated in the centre opening. You can use the base as a drilling template. Attach the base
with suitable bonding material * according to the substrate.
2. Carefully insert nanoSIM (the device must not be energized when inserting or replacing
nanoSIM!)
3. Connect the supply voltage to the detector clamp (by attaching the supply voltage, the
detector functionality message will be sent to the application).
4. Adjust the connected wire and place the detector on the base so that the projection
on the base faces the tamper position in the detector cover (a). Turn the detector clock-
wise (b).
* Suitable fi tting material can be, for example, a countersunk head screw, a screw Ø of
3 mm.
1 / 4
)
2
2 3
L
N
a)
EN
L N
