SmartSensor Leakage Wireless
Device User Guide
Commissioning instructions for the ELKO Smart system, devices and app.
02/2023
www.elko.no

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSensor and is the answer not in the manual?

Questions and answers

Related Manuals for Elko SmartSensor

Summary of Contents for Elko SmartSensor

  • Page 1 SmartSensor Leakage Wireless Device User Guide Commissioning instructions for the ELKO Smart system, devices and app. 02/2023 www.elko.no...
  • Page 2 Legal Information The ELKO brand and any trademarks of ELKO AS and its subsidiaries referred to in this guide are the property of ELKO AS or its subsidiaries. All other brands may be trademarks of their respective owners. This guide and its content are protected under applicable copyright laws and furnished for informational use only.

  • Page 3: Table Of Contents

    Table of Contents Safety information ..................4 SmartSensor Leakage Wireless ...............5 About the device..................5 Installing the device ..................5 Pairing the device ..................5 Pairing device manually.................6 Pairing device with auto scan..............8 Configuring the device ................9 Changing the device icon ..............9 Renaming the device ................10 Changing the device location ...............10...

  • Page 4: Safety Information

    Safety information Safety information Important information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

  • Page 5: Smartsensor Leakage Wireless

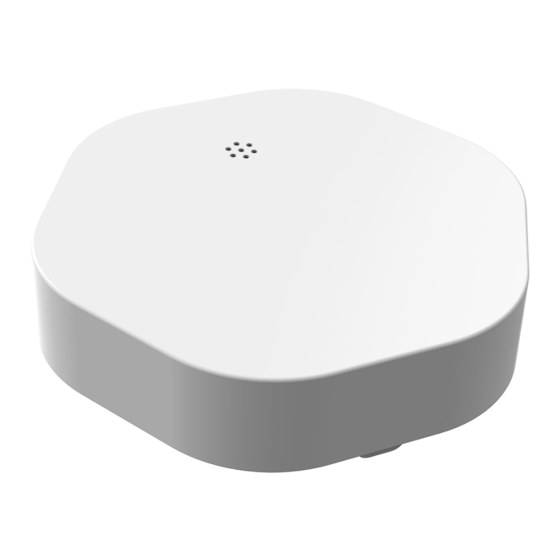

    The pads are close to the floor surface when the sensor is placed in its operating position. When the sensor is connected to the ELKO SmartHUB and detects water on the floor, the sensor sends out a sound alarm and reports the event to the app via ELKO SmartHUB.

  • Page 6: Pairing Device Manually

    To pair the device manually: 1. On Home page, tap +. 2. Tap , select the required ELKO SmartHUB on the slide-up menu. 3. Select an option to add the device(A): – Add Device with Install Code – Add Device without Install Code...
  • Page 7 How to pair device Short-press function key 3 times. 8. After a few seconds, a solid green LED indicates that the device has been successfully paired to the ELKO SmartHUB. 9. Tap Done when the pairing is successful. DUG_Sensor Leakage Wireless_ELKO-00...

  • Page 8: Pairing Device With Auto Scan

    NOTE: If you have multiple hubs, do Step 4 or proceed to Step 5. 4. Tap Select hub and select the ELKO SmartHUB from the slide-up menu. 5. Short press the setup/reset button 3 times (< 0,5 s) and wait for a few seconds until the device search is complete.

  • Page 9: Configuring The Device

    Configuring the device Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3.

  • Page 10: Renaming The Device

    Name Save Changing the device location You can change the device location using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the location. 2. At the top-right corner of the screen, tap 3.

  • Page 11: Removing The Device

    SmartSensor Leakage Wireless Removing the device You can remove a device from the device list using the ELKO Smart app, To remove the device: 1. On the Home page, tap All devices > Water Leakage Sensor. 2. Tap to display more details.

  • Page 12: Using The Device

    SmartSensor Leakage Wireless Using the device On the Home page, tap All devices > Water Leakage Sensor to access the control panel. On the Sensor control panel page, you can see the following: • Battery level (A) • Water leakage status (B) •...

  • Page 13: Creating An Automation

    Creating an automation An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smart app, you can create automations based on your needs. 1. On the Home page, tap the 2.
  • Page 14 SmartSensor Leakage Wireless 6. In the Add Condition menu, you can do either or all of the following options (C): – When weather changes - Select the various weather settings – Schedule - Set the time and day – When device status changes - Select the device and it’s function...
  • Page 15 SmartSensor Leakage Wireless 9. In the Add task menu, you can do either or all of the following options (F): – Run the device- Select the devices that you want to trigger. – Moment or Automation- Select the moment which you want to trigger or select the automation that you want to enable or disable.
  • Page 16 SmartSensor Leakage Wireless 4. Tap Water detection state > Detected and tap Next. 5. Tap Add task > Send notification and select Notifications (A). 6. Tap Next. Next Multiple items selectable 7. In the Automation Settings page, tap Save. Cancel...

  • Page 17: Replacing The Batteries

    SmartSensor Leakage Wireless 2. Tap Delete and tap Ok. NOTE: After deleting an automation, the device action can no longer be triggered. Replacing the batteries 1. Use a screwdriver to remove the six screws from the battery cover to access the batteries.

  • Page 18: Troubleshooting

    SmartSensor Leakage Wireless Troubleshooting Symptom Possible cause Solution The sensor triggers the automation/ The sensor may be undergoing an over-the- Wait for the firmware update to complete schedule, but does not show the status on air (OTA) firmware update. and then check that the sensor is reporting the app.
  • Page 19 Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners. • Zigbee ® is a registered trademark of the Connectivity Standards Alliance. • Apple ® and App Store ® are brand names or registered trademarks of Apple Inc. •...
  • Page 20 ELKO AS Sandstuveien 68, 0680 OsloPb 6598 Etterstad, 0607 Oslo Norway +47 67 79 39 00 support@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication. © 2023 – 2023 ELKO AS.
