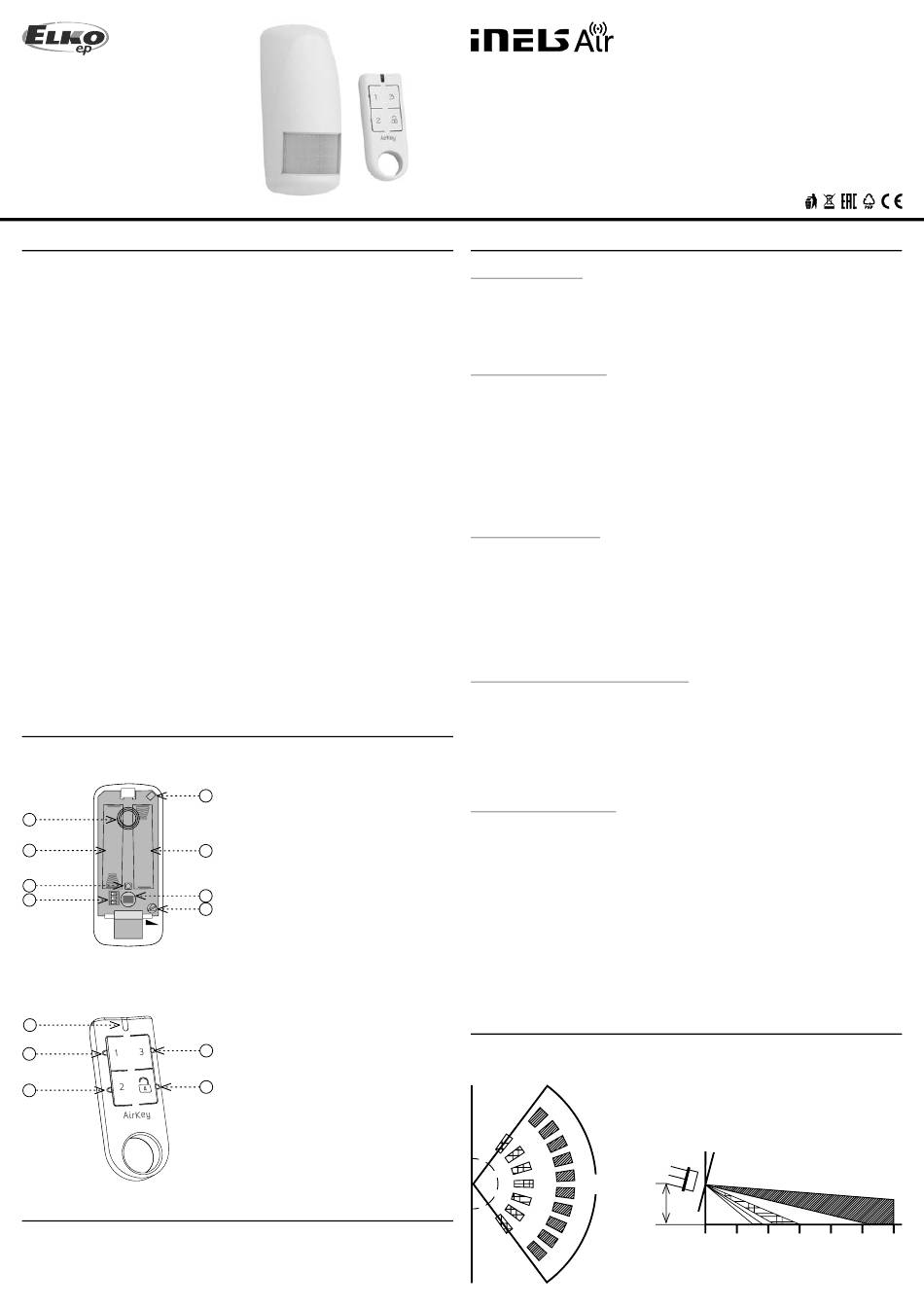

Characteristics

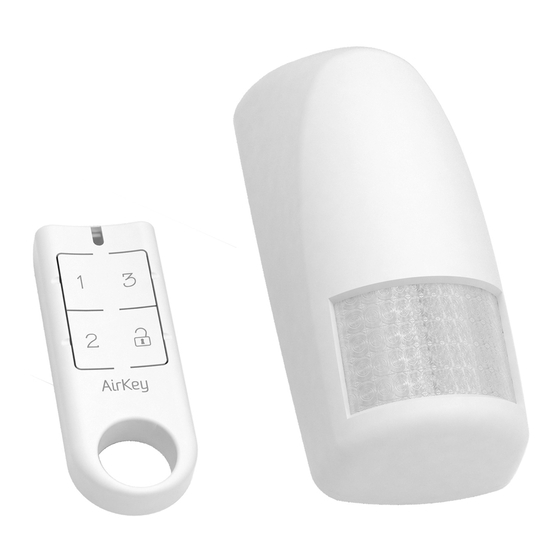

AirMD-100
• The PIR motion detector is used to detect people moving in the interior.
• PIR sensitivity settings to eliminate unwanted switching.
• The detector off ers a quick and comfortable solution for detecting motion in an
object. It's just a simple installation at the location.
• The Sigfox, LoRa or NB-IoT network can be used for message transmission.
• Anti-sabotage function (tamper): When unauthorized interference with the detec-
tor occurs (disassembly) it sends an information message to the server.
• Data is sent to the server from which it can be subsequently displayed as a smart-
phone, application, or Cloud notifi cation.
• Battery status information is sent as a message to the server.
• Power supply: battery 2x 1.5 V AA.
• The Disarm is done either with a message from the server or by using the AirKey
key fob that communicates with the detector wirelessly.
AirKey
• It is used to activate and deactivate the motion detector when you enter or leave
the monitored area.
• One detector can be matched up to 32 key fobs. The key fob can be paired with any
number of detectors.
• Designed in black and white with laser printing.
• Battery power supply (3V/CR2032 - included in the supply) with battery life of
around 5 years based on frequency of use.
Description
AirMD-100
+
1
2
+
3
4
SENS
AirKey
8
9
9
Cloud app assignment
It is done in your Smartphone application. Enter the relevant information on the product
cover into the application.
1. Antenna
5
2. Battery
3. Blue LED
4. DIP Switch
2
- DIP1: no function
- DIP2: no function
- DIP3: programming / deleting the
6
detector memory
7
5. Tamper
6. Motion sensor
7. Setting SENS component- sensitivity
adjustment of the PIR sensor
8. Transmitter indication
9. Control button
9
10. Control button DISARM
10
AirMD-100
AirKey
Motion detector
Key chain iNELS Air
General instrucions
Internet of Things (IoT)
• The IOT wireless communications category describes the Low Power Wide Area
(LPWA). This technology is designed to provide full-range coverage both inside and
outside buildings, energy-saving and low-cost operation of individual devices. Indivi-
dual networks - Sigfox, LoRa, NarrowBand - are available to use this standard.
Sigfox network information
• The network supports bidirectional communication but with a limited number of feed-
backs. It uses the free frequency band divided by Radio Frequency Zones (RCZ).
• RCZ1 (868 MHz) Europe, Oman, South Africa
• RCZ2 (902 MHz) North America
• RCZ3 (923 MHz) Japan
• RCZ4 (920 MHz) South America, Australia, New Zealand, Singapore, Taiwan
• Sigfox has more coverage across countries, so it is better suited for long distance mo-
nitoring.
• For more information on this technology, please visit www.sigfox.com.
LoRa network information
• The network is bidirectional and its communication uses free frequency band.
• 865 - 867 MHz
• 867 - 869 MHz
• 902 - 928 MHz
• The advantage of this network is the possibility of freely deploying individual stations
in local locations, thus strengthening their signal. It can therefore be used effi ciently in
company premises or, for example, in local parts of cities.
• For more information on this technology, please visit www.lora-alliance.org.
Information about the NarrowBand network
• The network provides two-way communication and the only one to use the licensed
LTE band. Our devices allow band 1 (2100MHz), Band 3 (1800MHz), Band 8 (900MHz),
Band 5 (850MHz), Band 20 (800MHz) and Band 28 (700MHz).
• It uses this SIM card technology for each device.
• The advantage of NarrowBand is the use of already built-up grids, which ensures suffi -
cient reception outside and inside buildings.
• For more information on this technology, please visit www.vodafone.cz
Caution for proper operation:
• Products are installed according to the wiring diagram given for each product.
• For proper device functionality, it is necessary to have suffi cient coverage of the selec-
ted network at the installation site.
• At the same time, the device must be registered in the network. Successful device re-
gistration on a given network requires a charge for traffi c.
• Each network off ers diff erent tariff options - it always depends on the number of me-
ssages you want to send from your device. Information on these tariff s can be found in
the current version of the ELKO EP pricelist.
Detection fi eld
Top view
105°
1 / 4
India
Europe
North America, Japan, Korea
Side view
12°
max.
2.2 m
0 2 4 6
The detection area is covered by three cones
EN
8 10 12 m
