Ingersoll-Rand X8I Detailed Description

Advanced system controller
Hide thumbs Also See for X8I:

Advertisement

Quick Links

Download this manual
Ingersoll Rand Automation

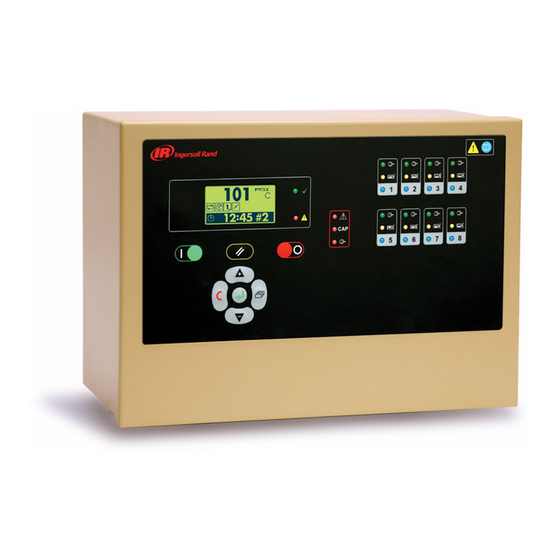

X8I Advanced System Controller
Detailed Description
TF-9
This document contains confidential and trade secret information, is the property of Ingersoll Rand Company, and is given to the receiver in confidence. The receiver by reception and retention
of the document accepts the document in confidence and agrees that, except as authorized in writing by Ingersoll Rand Company, it will (1) not use the document or any copy thereof or the
confidential or trade secret information therein; (2) not copy the document; (3) not disclose to others either the document or the confidential or trade secret information therein; and (4) upon
completion of the need to retain the document, or upon demand, return the document, all copies thereof, and all material copied therefrom.

Advertisement

loading
Need help?

Need help?

Do you have a question about the X8I and is the answer not in the manual?

Questions and answers

Related Manuals for Ingersoll-Rand X8I

Summary of Contents for Ingersoll-Rand X8I

  • Page 1 This document contains confidential and trade secret information, is the property of Ingersoll Rand Company, and is given to the receiver in confidence. The receiver by reception and retention of the document accepts the document in confidence and agrees that, except as authorized in writing by Ingersoll Rand Company, it will (1) not use the document or any copy thereof or the confidential or trade secret information therein;...
  • Page 2 The system pressure is controlled via a single point in the system. This is not a cascading pressure control scheme. The X8I features an Energy control mode that takes the guesswork out of manually programming the schedules and sequence of multiple compressor systems.
  • Page 3 Using the real-time clock feature and pressure schedule functionality, the X8I can be instructed to change among the tables at any time based on time of day and day of the week. This functionality allows the X8I to switch among multiple different system configurations without disruption to control.
  • Page 4 X8I front panel. Configurable Auxiliary Input/Output (I/O) Contacts The X8I is equipped with auxiliary I/O contacts that can be configured to control the X8I and the system components or to activate remote alarms.

  • Page 5: Installation

    It should be free of flow restrictions, excessive pressure drops and excessive demand surges. A common receiver tank is an excellent choice. The pressure transducer can be located up to 330 ft (100 m) from the X8I.
  • Page 6 Ingersoll Rand Automation Model X8I 6 System Automation X8I...

  • Page 7: Operation

    Compressors can be maintained off-line to minimize losses due to system leaks in pressurized systems idle during non-productive periods. Once the X8I is properly set up it will operate automatically. Every X8I comes preset from the factory in ENER mode and with typical default settings. For more information, please reference the X8I Quick Set-Up Guide.
  • Page 8 These products are supplied and ordered separately depending on the compressors to be connected. Compressor Interface Each air compressor in your system must be interfaced to the X8I. Interface methods may vary depending on the compressor type and/or local control configuration. Currently, all compressors with the exception of the recently introduced R-Series fixed- speed contact-cooled rotary compressor, will connect via either an ir-PCB (hardwire connection) or an ir-485/irV-485 Gateway (RS485 connection).
  • Page 9 The ir-PCB expansion module is suitable for wall mounting and must be located adjacent to the X8I unit (max 33 ft or 10 m).
  • Page 10 VSD box; in some cases, a CT is installed on the drive to determine compressor speed. Multiple VSD boxes can be connected to the X8I as long as the number of compressors does not exceed the maximum number of compressors (8). The VSD box connects to the X8I controller via the two-wire RS485 network.
  • Page 11 The I/O box connects to the X8I controller via a two-wire RS485 network utilizing the ir-485 protocol. System Automation X8I...
