Installation

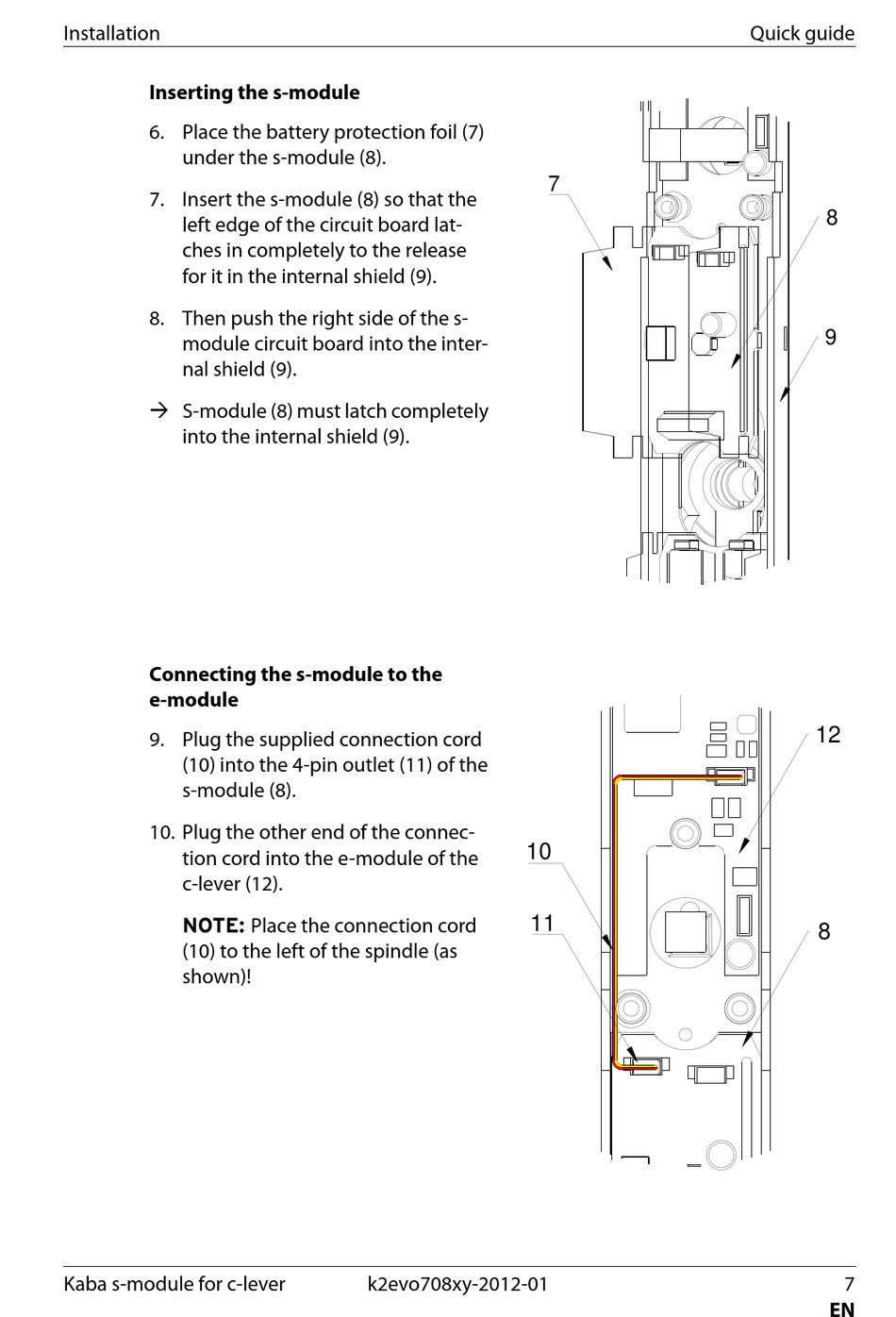

Inserting the s-module
6. Place the battery protection foil (7)
under the s-module (8).
7. Insert the s-module (8) so that the
left edge of the circuit board lat-
ches in completely to the release
for it in the internal shield (9).
8. Then push the right side of the s-
module circuit board into the inter-
nal shield (9).
 S-module (8) must latch completely
into the internal shield (9).
Connecting the s-module to the
e-module
9. Plug the supplied connection cord
(10) into the 4-pin outlet (11) of the
s-module (8).
10. Plug the other end of the connec-
tion cord into the e-module of the
c-lever (12).
NOTE: Place the connection cord
(10) to the left of the spindle (as
shown)!
