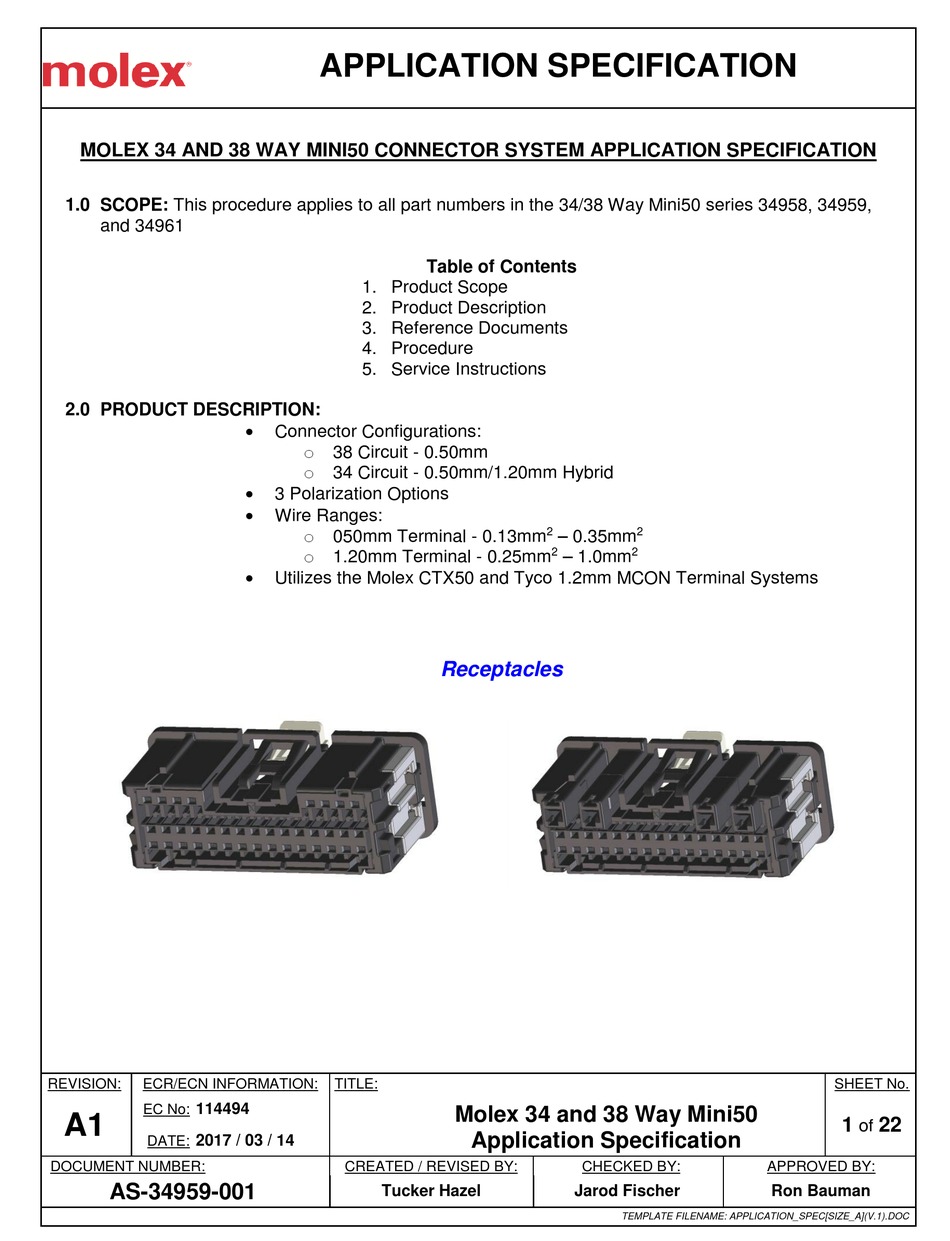

molex Mini50 series Application Specification

MOLEX 34 AND 38 WAY MINI50 CONNECTOR SYSTEM APPLICATION SPECIFICATION
1.0 SCOPE: This procedure applies to all part numbers in the 34/38 Way Mini50 series 34958, 34959,
and 34961
2.0 PRODUCT DESCRIPTION:
REVISION: ECR/ECN INFORMATION:
114494
EC No:
A1
2017 / 03 / 14
DATE:
DOCUMENT NUMBER:
AS-34959-001
APPLICATION SPECIFICATION
1. Product Scope
2. Product Description
3. Reference Documents
4. Procedure
5. Service Instructions

Connector Configurations:
o 38 Circuit - 0.50mm
o 34 Circuit - 0.50mm/1.20mm Hybrid

3 Polarization Options

Wire Ranges:
o 050mm Terminal - 0.13mm
o 1.20mm Terminal - 0.25mm

Utilizes the Molex CTX50 and Tyco 1.2mm MCON Terminal Systems
TITLE:
CREATED / REVISED BY:
Tucker Hazel
Table of Contents
– 0.35mm
2
– 1.0mm
2

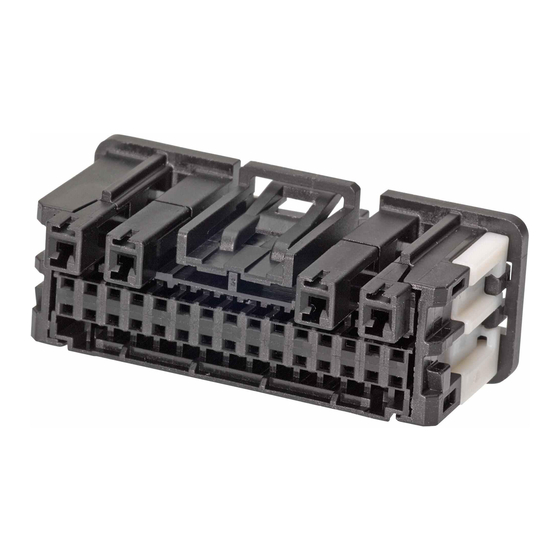

Receptacles
Molex 34 and 38 Way Mini50
Application Specification
CHECKED BY:
Jarod Fischer
2
2
APPROVED BY:
Ron Bauman
TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC
SHEET No.
1 22
of
