EXTreme PowerMass™ Stiffener Removal Tool
FEATURES
This tool is designed for removal and reinstallation of the top metal stiffener of a connector module.
%
SCOPE
Products: EXTreme PowerMass Right Angle Plug Assemblies (75555 series). See Product List below for specific
part numbers.
Product List
The following is a partial list of the product order numbers and their specifications this tool is designed to run.
Updates to this list are available on www.molex.com.
Assembly Series No.
And Description
75555
Right Angle Plug Assemblies
DESCRIPTION
The Stiffener Removal Tool consists of a slide that extends (to push the stiffener off the connectors) or retracts (to
pull the stiffener onto the connectors). A series of pins engage the holes in the stiffener for removal. The press

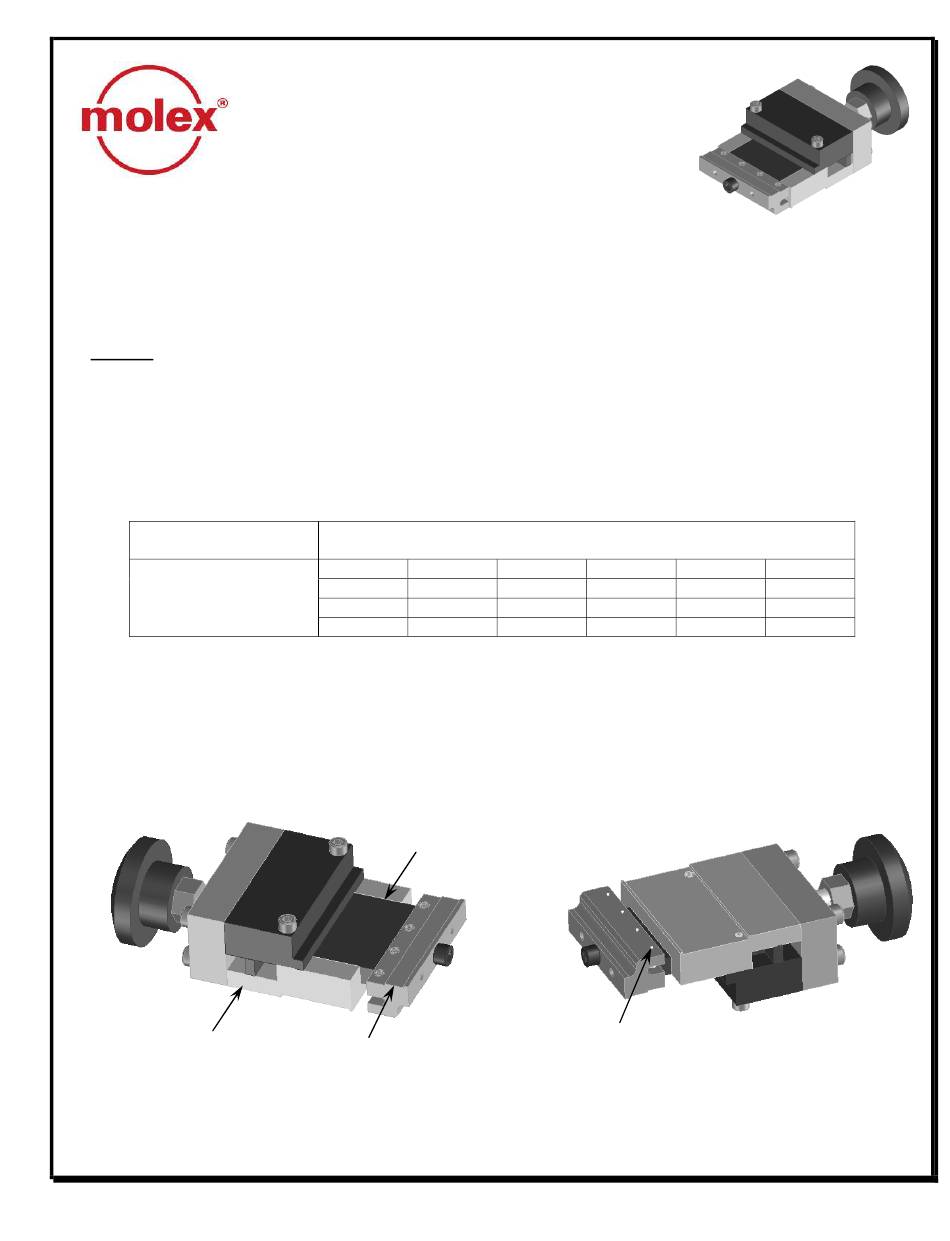

block drives the flat edge of the stiffener for reinstallation. See figure 1.
SLIDE BASE
Doc No: ATS-622023600
Revision: A
EXTreme PowerMass™ Right Angle Plug Assembly
Stiffener Removal Tool
Instruction Sheet
Part No. 62202-3600
75555-1000
75555-1002
75555-1007
75555-1008
75555-1026
75555-1027
75555-1100
75555-1102
SLIDE
PRESS BLOCK
Release Date: 05-09-08
Revision Date: 05-09-08
Assembly Order No.
75555-1003
75555-1004
75555-1009
75555-1010
75555-1031
75555-1032
75555-1108
Figure 1
REMOVAL PINS
UNCONTROLLED COPY
75555-1005
75555-1006
75555-1021
75555-1025
Page 1 of 4
