molex Micro-Lock Plus 2.0 Application Specification

Single row connectors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
【1. Application】
HARNESS
SIDE
ONBOARD
SIDE
※Please refer to Application Tooling Specification (ATS) for further details.
VERTICAL TYPE
― Before using ―
・
Be sure to read the following precautions before using connector.
・
Keep this manual handy for later reference.
・
The displays and illustrations shown in this manual are for illustrative purposes only and may differ
from the actual product.
・
The contents of this manual are subject to change without notice.
・If you find any mistake or there is anything that is not clear, please contact us.
THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
REVISION
REVISED
DESCRIPTION
CHANGE NO.
682239
REVISED BY
SOKUMURA01
REV APPR BY
AIDA
INITIAL RELEASE
INITIAL DRWN
KUSATO
INITIAL APPR
TKANEKO
PROCEDURE: 2090580010-ES

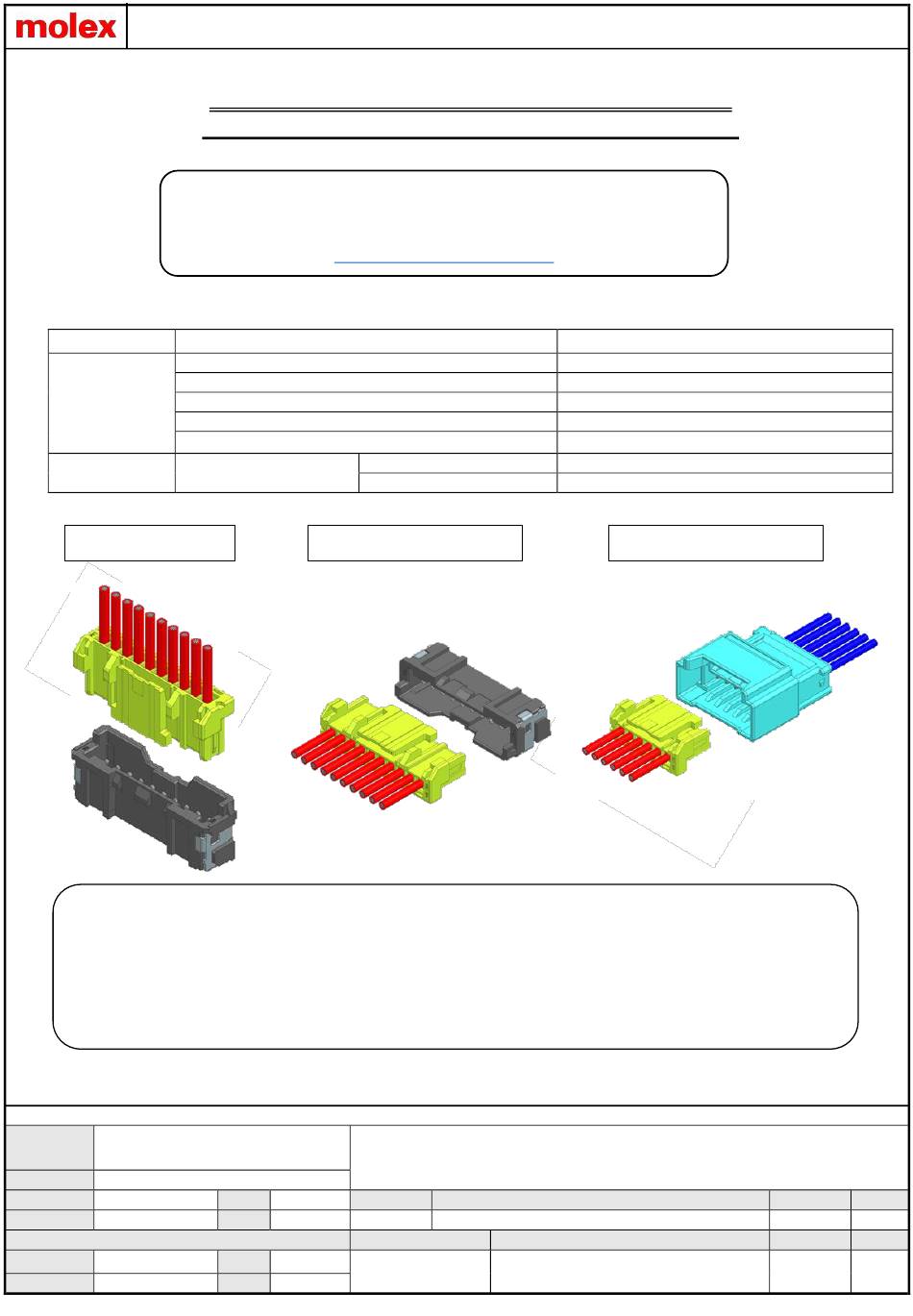

PRODUCT APPLICATION SPECIFICATION
APPLICATION SPECIFICATION
Micro-Lock Plus 2.0 SINGLE ROW CONNECTORS
This application specification is written in English and Japanese.
本取扱説明書は、英文及び和文で記載されております。
English 英文：Page 1～24
Japanese 和文：Page 25～49
Product Name
RECEPTACLE HOUSING
RECEPTACLE TERMINAL
PLUG HOUSING
PLUG TERMINAL
APPLICABLE WIRE (※)
PLUG ASSEMBLY
RIGHT-ANGLE TYPE
DATE
2021/02/09
DOC TYPE
DATE
2022/06/30
DATE
2016/04/20
GENERAL MARKET
DATE
2016/04/21
TEMPLATE: 2090580010-PAS-A4
VERTICAL TYPE
RIGHT-ANGLE TYPE
APPLICATION SPECIFICATION FOR
MICRO-LOCK PLUS 2.0 SINGLE ROW
DOC TYPE DESCRIPTION
PS
APPLICATION SPECIFICATION WORD
CUSTOMER
REVISION: A1
Part Number
505570 series (PKG: Plastic Bag)
505572 series (PKG: Reel)
213719 series (PKG: Plastic Bag)
213720 series (PKG: Reel)
AWG#22～26
505575 series (PKG: Embossed Tape)
505578 series (PKG: Embossed Tape)
WIRE TO WIRE TYPE
DOCUMENT NUMBER
5055700001
DOC PART
SERIES
A03
505570
REVISION
SHEET
E
1
49
OF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro-Lock Plus 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex Micro-Lock Plus 2.0

Summary of Contents for molex Micro-Lock Plus 2.0

  • Page 1 The contents of this manual are subject to change without notice. ・If you find any mistake or there is anything that is not clear, please contact us. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 2: Table Of Contents

    P-21～22 9-2. Un-mating process method･･･････････････････････････････････････････････････ P-22 9-3. Wiring after mating･･･････････････････････････････････････････････････････････ P-23～24 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 3: Application

    Fastener with terminal lance ※ Please refer to sales drawing for product form and its dimensions. 5055700001 PSD 000 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED...
  • Page 4 Electrical mating part ※ Please refer to sales drawing for product form and its dimensions. 5055780001 PSD 000 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED...

  • Page 5: Plug Crimp Terminal

    Housing ※ Please refer to sales drawing for product form and its dimensions. 2137190000-SD PSD 000 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...

  • Page 6: Instructions

    During handling, avoid shock or dropping products as it may cause damage. First-in, first-out of the stock is recommended. Keep product in original packaging before using. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED...

  • Page 7: Harness Process And Surface Mount Process Instruction

    19. When using a solder iron, please do not use excessive solder and flux. It may cause poor contact performance by solder wicking and flux wicking. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 8: About Use In The Machinery

    Please avoid using the product outdoors or under similar environment. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 9: The Confirmation Item Of Crimping Wire

    It may deteriorate insertion to housing and terminal retention force or cause contact failure. (Fig.4-3) × No Good Fig.4-3 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...
  • Page 10 It may deteriorate insertion to housing and terminal retention force or cause contact failure. (Fig.4-6) × × No Good No Good Fig.4-6 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 11 Locking of the terminal becomes insufficient and causes lowering of the terminal retention force. (Fig.4-10) × No Good Deformation (Crushed) Fig.4-10 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...

  • Page 12: Wire Bundling After Crimping And Package

    Buffer material (Air-packing) Packing box. Fig.5-1 Fig.5-2 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 13: Harness Processing (Crimping Wire Insertion Method In Receptacle Housing)

    (with force of around 1.6～2.4N). (Fig.6-1) 10 mm Fig.6-1 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...
  • Page 14 No Good × Having an angle No Good Fig.6-3 Inappropriate insertion direction THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 15 In this case, please be sure to change with a new terminal. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 16: Repair Of Crimp Terminal

    ② Jig with sharp end like needle ① Fig.6-6 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 17 Pull out wire Step 1 Terminal lance Insert jig Fig.6-7 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 18: Banding Of Harness

    ※Please do not drop the product or hit it against other objects. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 19: Recommended Packaging Of Cable Harness And Assemblies

    Connector band at the center with vinyl string Air packing Fig.8-1 A bunch of harness THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...
  • Page 20 (Fig.8-2 ②) Fig.8-2 Packing situation THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 21: Mating Process Method

    (Vertical & Right-Angle Type) (Vertical & Right-Angle Type) Good No Good Fig.9-1-1 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 22 ※When releasing lock, please push bar for releasing lock with flat part of finger, not only with fingertip (nail tip). If fingernail is too long, it might catch lock protection wall. THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION...

  • Page 23: Wiring After Mating

    Good × Fig.9-3-2 Condition wires are bent excessively or tension is added No Good THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...

  • Page 24: Revised By Sokumura01 Date 2021/02/09

    Fig.9-3-5 Condition wires are bent excessively or tension is added No Good × Fig.9-3-6 Wiring toward more than 2 directions No Good THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW...
  • Page 25 ―はじめに― ・本コネクタを御使用頂く前に必ず御一読頂き十分に理解した上、正しくご使用下さい。 ・本書はいつでも参照できるように、お手元に大切に保管して下さい。 ・本書中の表示及びイラストは印刷の為、実物と異なることが御座います。 ・本書の内容に関しては、予告無しに変更する場合が御座います。 ・本書の内容については、万全を期して作成致しておりますが、万が一御不審な点や誤りなど、お気付き のことが御座いましたら弊社まで御連絡下さい。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 26 9-1. 推奨挿入方法･･･････････････････････････････････････････････････････････････ P-46～47 9-2. 推奨抜去方法･･･････････････････････････････････････････････････････････････ P-47 9-3. 嵌合後の電線の引き回しについて･････････････････････････････････････････････ P-48～49 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 27 するためのロック機構。 抜去時にロック解除動作を必要とする モールドランス ハウジングから端子を抜けないように引っ掛ける部分 ※ 製品形状及び寸法については弊社製品図面を参照願います。 5055700001 PSD 000 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 28 嵌合後にプラグアセンブリとハーネス側が抜け ないようにポジティブロックを係止する部分 端子 嵌合相手と電気的接続をするための部品 ※ 製品形状及び寸法については弊社製品図面を参照願います。 5055780001 PSD 000 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 29 リセプタクルハウジングが 抜けないように ポジティブロックを係止する部分 ハウジング ※ 製品形状及び寸法については弊社製品図面を参照願います。 2137190000-SD PSD 000 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 30: 使用上の注意事項

    ② 製品保管の際には外力が掛からないよう保管願います。(納入状態からの詰め替え等)製品の噛み込み、 変形・破損等の原因となります。 ③ 製品の移動時及び搬送時には落下や衝撃による外力を加えないように御注意願います。 製品の噛み込み、変形・破損等の原因となります。 ④ 在庫品は先入れ・先出しを実施して下さい。 ⑤ 使用前まで弊社実施の梱包形態を維持して下さい。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 31: ハーネス及び実装作業時に於ける注意事項

    弊社の推奨基板パターン寸法を変更して設計を行なう際は、致命的な不良の原因にもなりますのであらかじめ ご相談下さい。 ⑯ コネクタ嵌合状態で基板の持ち運び等コネクタに負荷が掛かる作業は行わないようにして下さい。コネクタ 破損等の原因となる場合が御座います。 ⑰ 基板実装後に基板を直接積み重ねない様に注意して下さい。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 32: 機器内での使用について

    コネクタに無理な外力が加わらないように、電線に緩みを持たせ、余裕を持たせる処置をして下さい。 ⑦ コネクタの嵌合を取り外す際は、必ずロックを解除して行って下さい。 電線はまとめて軽く掴み、指全体で確実にロックを解除し、取り出して下さい。 ⑧ 治具等を使用し、圧着端子を抜いた場合には、ランスが変形し強度が低下し端子を再装着後の端子保持力が 低下します。そのため、圧着端子のリペアの際には新しいハウジングを必ずご使用下さい。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 33: 定格・性能規格について

    ① 本製品は人命に関わるような状況下で使用される機器、あるいはシステムに用いられることを目的として設計、 製造されたものではありません。本製品を医療用、航空宇宙用、原子力等の特殊用途への組込みの御使用に ついては弊社に確認の上、御使用下さい。 ② 自動車、船舶等への御使用を検討される場合は、必ず事前に御連絡下さい。 (仕様条件によって使用可能であるか検討させて頂きます。) ③ 室外またはそれに相当する環境下での御使用は避けて下さい。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 34: 端子圧着加工について

    ② ベンドダウン ハウジングへの挿入性及び保持力の低下、また電気的に接触しないなどの接触信頼性低下の原因となります。 (Fig.4-3) × 不可 Fig.4-3 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 35: Ps Application Specification Word A03 505570

    ハウジングへの挿入性及び保持力の低下、また電気的に接触しないなどの接触信頼性低下の原因となります。 (Fig.4-6) × × 不可 不可 Fig.4-6 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 36 Fig.4-9-2 ターミナルランスの変形(潰れなど) ハウジングの係止が不十分となり保持力の低下の原因となります。(Fig.4-10) × 不可 変形(潰れ) Fig.4-10 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 37: 圧着後の電線結束および梱包について

    ※梱包箱底面および上面には、緩衝材等を敷いて下さい。また、段積みによる荷重等の負荷が端子へ 直接長時間加わらない様に、緩衝材を敷く等の御配慮をお願い致します。(Fig.5-2) 結束加工品は交互に重ねる 緩衝材（エアパッキン等） 梱包箱 Fig.5-1 Fig.5-2 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 38: リセプタクルハウジングへの圧着端子装着(ハーネス作業)方法

    ③ 端子ランス部が、リセプタクルハウジングの中央に向かうように持ち、端子が突き当たる位置まで (1.6～2.4N 程度の力で)ゆっくりと真っ直ぐ装着して下さい。(Fig.6-1) 10 mm 端子挿入方向 Fig.6-1 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 39 回転方向（例 5°） 不可 × 斜め方向 不可 Fig.6-3 不適切な装着方向 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 40 ※端子が不完全装着の場合、端子のランス係止部にモールドランスが引っ掛からない状態になり、 端子が保持出来なくなります。 ※モールドランスが正規の位置に戻っていない箇所(不完全装着状態：Fig.6-5 参照)では、モールドランスが 最も変形している状態です。そのため、この状態のハーネス品は、端子を再挿入したとしても、 モールドランスが変形し、正規の位置に戻らず、保持力が低下する場合が御座います。 このような場合は、必ずリセプタクルハウジングを取り替えて頂くよう、お願い致します。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 41: 圧着端子のリペアについて

    また、拡大鏡等を使うなどして、十分御注意の上、作業を行って下さい。(Fig.6-6) ※端子を無理に引き抜くことは、必ず避けて下さい。 ※リペアの際、端子のランス係止部の変形や傷を付けないように御注意下さい。 ② 針などの治具 ① Fig.6-6 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 42 ターミナルランスを持ち上げる 電線を引き抜く ① ターミナルランス 治具を挿入する 治具 Fig.6-7 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 43: ハーネス結束について

    電線一本（又は特定の数本）に負荷が掛かる状態 Fig.7-2 不適切なハーネス結束状態 注意事項 ※ハーネス品同士が絡まっている場合、無理に引っ張らないで下さい。 過度な力が加わり端子が抜ける等の不具合が生じ、コネクタが破損する場合があります。 ※製品を落としたり、他のものにぶつけたりしないで下さい。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 44: ハーネス梱包について

    常に下がった状態になることで、ロック部変形等による性能不良の原因となります。 また、可動部(モールドランス・ロック部)破損の原因となり、コネクタの性能不良の原因となります。 コネクタ エアパッキン ビニール紐で中央部を束ねる Fig.8-1 ハーネス加工品一束の状態図 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 45 注意事項 ※ハーネス加工品の束を梱包箱に入れる際、積み重ねによる荷重等の負荷がコネクタに長時間加わ らない様に、箱に合わせた形で製品を交互(十字型)に重ね合わせて下さい。(Fig.8-2 ①) ※梱包箱底面には、緩衝材等を敷いて下さい。また、段積みによる荷重等の負荷がコネクタに長時間 加わらない様に、緩衝材を敷く等の御配慮をお願い致します。(Fig.8-2 ②) Fig.8-2 梱包状態図 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 46: 推奨挿入方法

    まっすぐ挿入 不可 良好 (バーティカル,ライトアングル 共通) (バーティカル,ライトアングル 共通) Fig.9-1-1 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 47: 推奨抜去方法

    Fig.9-2 注意事項 ※特定の数本のみ電線を摘んで抜去しないで下さい。 限定された端子に過度な負荷が集中し、コネクタの破損及び端子が抜ける可能性が御座います。 ※抜去時は、ロックを完全に解除して下さい。本製品は、コネクタの抜け防止をポジティブロックに 依存している構造となっております。ロックが完全に解除していない状態で、無理に抜こうとした場合 コネクタが破損します。 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.

  • Page 48: 嵌合後の電線の引き回しについて

    ○ Fig.9-3-1 電線にたわみを持たせた状態 良好 × Fig.9-3-2 電線を極端に曲げる又は、突っ張った状態 不可 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
  • Page 49 × Fig.9-3-5 電線を極端に曲げる又は、突っ張った状態 不可 × Fig.9-3-6 2 方向以上での電線引き回し状態 不可 THIS DOCUMENT CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION REVISION REVISED APPLICATION SPECIFICATION FOR DESCRIPTION MICRO-LOCK PLUS 2.0 SINGLE ROW CHANGE NO.
