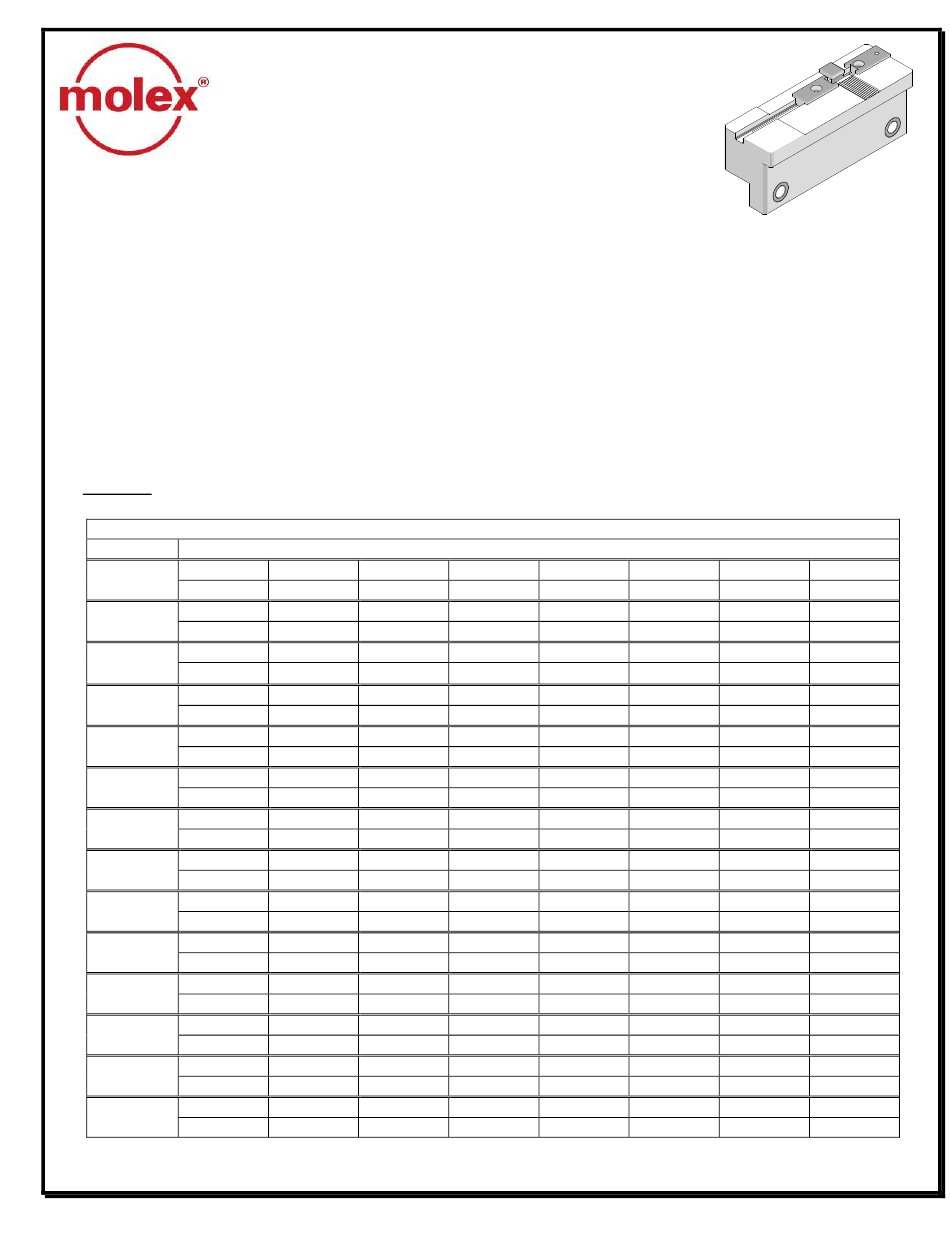

molex Milli-Grid Dual row 87568 Series Operating Instructions

IDT Ribbon Cable Hand Tool Module
FEATURES
%
This IDT Ribbon Cable Module is used with the 63600-0478 Pistol Power Handle and the 11-31-3337 Power
Adapter. It is also used in the 62100-3200 Manual Press.
%
It is a simple design for easy termination of flat ribbon cable into the Molex 2.0mm Mill-Grid™ IDT Dual Row
connector, 87568 Series, with or without the optional polarizing key and locking ramp.
%
The tool is easily adjusted for circuit sizes from 10 to 50.
%
An adjustable cable stop allows the operator to consistently produce quality "Feed-To", "Feed-Through", or
"Daisy Chain" type harnesses.
%
The module by itself measures 32mm (1.26") by 37mm (1.45") by95mm (3.74") and weights 0.22 kg (0.50 lb).
SCOPE

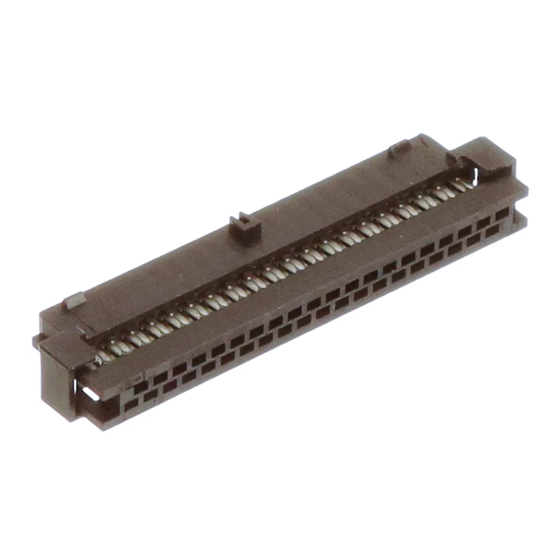

Products: 2.00mm (.079") Pitch Mill-Grid™ Cable-to-Board Receptacle, Dual Row, IDT
Circuit Size
87568-1011
10
87568-1012
87568-1243
12
87568-1244
87568-1443
14
87568-1444
87568-1643
16
87568-1644
87568-2011
20
87568-2012
87568-2243
22
87568-2244
87568-2411
24
87568-2412
87568-2643
26
87568-2644
87568-3043
30
87568-3044
87568-3411
34
87568-3412
87568-3643
36
87568-3644
87568-4011
40
87568-4012
87568-4411
44
87568-4412
87568-5011
50
87568-5012
Doc No: ATS-621002000 Release Date: 09-25-98
Revision: F
IDT Ribbon Cable Module
Operating Instruction for
2.0mm Milli-Grid™ Dual row 87568 Series
Order No. 62100-2000
Series number 87568
87568-1043 87568-1053
87568-1044 87568-1054
87568-1263 87568-1273
87568-1264 87568-1274
87568-1463 87568-1473
87568-1464 87568-1474
87568-1663 87568-1673
87568-1664 87568-1674
87568-2043 87568-2063
87568-2044 87568-2064
87568-2263 87568-2273
87568-2264 87568-2274
87568-2443 87568-2463
87568-2444 87568-2464
87568-2663 87568-2673
87568-2664 87568-2674
87568-3063 87568-3073
87568-3064 87568-3074
87568-3443 87568-3463
87568-3444 87568-3464
87568-3663 87568-3671
87568-3664 87568-3672
87568-4043 87568-4063
87568-4044 87568-4064
87568-4443 87568-4463
87568-4444 87568-4464
87568-5043 87568-5063
87568-5044 87568-5064
Revision Date: 08-13-08
Receptacle Order Number
87568-1063 87568-1073
87568-1064 87568-1074
87568-1281 87568-1283
87568-1282 87568-1284
87568-1481 87568-1483
87568-1482 87568-1484
87568-1681 87568-1683
87568-1682 87568-1684
87568-2073 87568-2081
87568-2074 87568-2082
87568-2281 87568-2283
87568-2282 87568-2284
87568-2473 87568-2481
87568-2474 87568-2482
87568-2681 87568-2683
87568-2682 87568-2684
87568-3081 87568-3083
87568-3082 87568-3084
87568-3473 87568-3481
87568-3474 87568-3482
87568-3673 87568-3682
87568-3674 87568-3683
87568-4073 87568-4081
87568-4074 87568-4082
87568-4473 87568-4481
87568-4474 87568-4482
87568-5073 87568-5081
87568-5074 87568-5082
UNCONTROLLED COPY
87568-1081 87568-1083
87568-1082 87568-1084
87568-1293
87568-1294
87568-1493
87568-1494
87568-1693
87568-1694
87568-2083 87568-2093
87568-2084 87568-2094
87568-2293
87568-2294
87568-2483 87568-2493
87568-2484 87568-2494
87568-2693
87568-2694
87568-3093
87568-3094
87568-3483 87568-3493
87568-3484 87568-3494
87568-3684 87568-3694
87568-3693
87568-4083 87568-4093
87568-4084 87568-4094
87568-4483 87568-4493
87568-4484 87568-4494
87568-5083 87568-5093
87568-5084 87568-5094
87568-1093
87568-1094
87568-7003
87568-7004
Page 1 of 4
