1.0 Scope

This document will describe the installation instructions for

2.0 Procedure

Tools required: 110 punch down tool, cable jacket stripper tool, cable clippers and wire clippers
1.

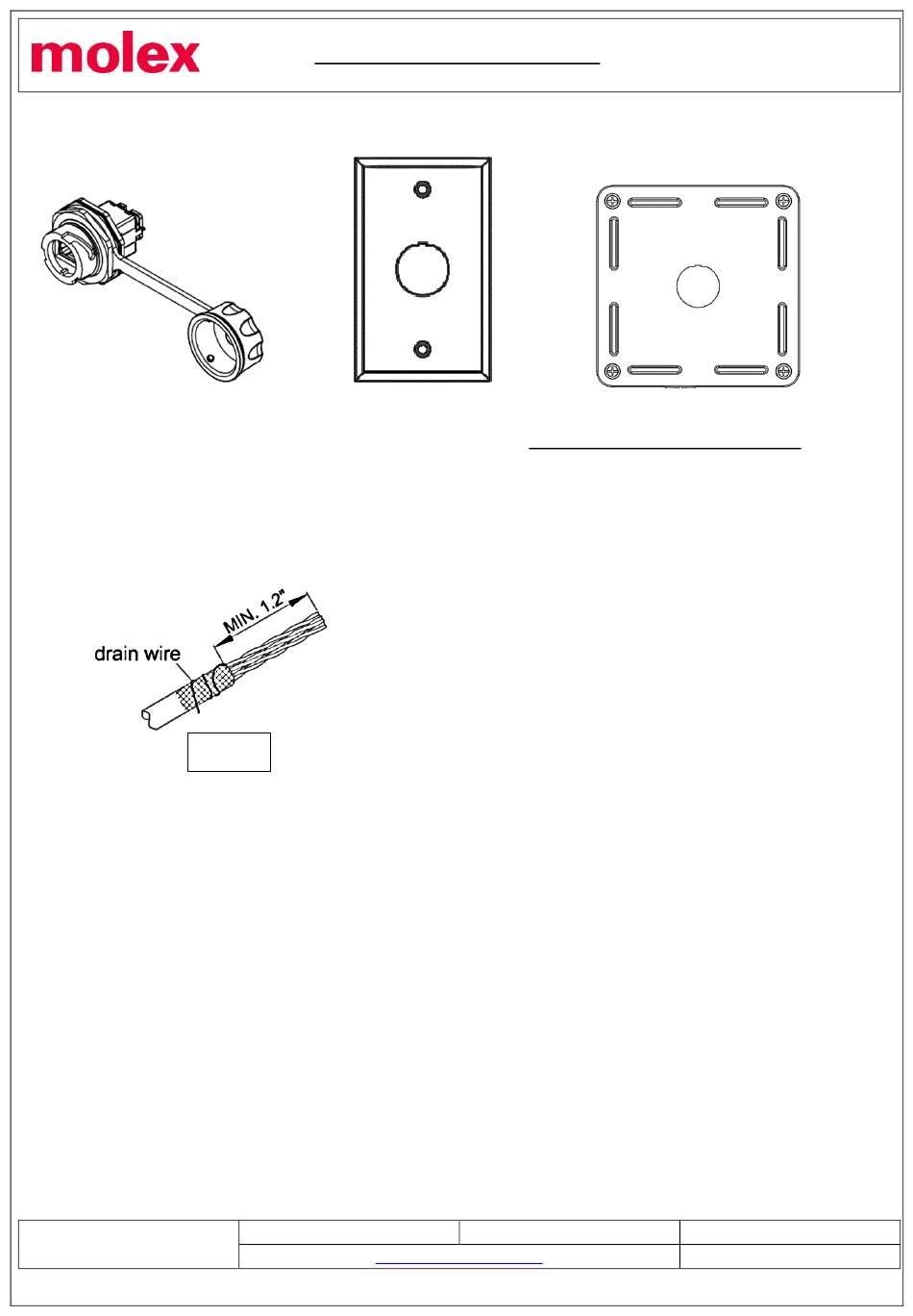

Strip of 1.2"/ 30mm of jacket from the cable with the cable jacket stripper (Fig 1.)
2. U/FTP cable preparation
a. Unwrap and remove 3 of the twisted pair's foils with wire clippers
b. Wrap the remaining 1.2"/30mm foil off the 4
conductive surface of the foil is facing out)
c. Wrap the drain wire around the foil and the cable sheath
3. F/UTP cable preparation
a. Unwrap the overall foil from the cable
b. Remove the cellophane wrap from the cable
c. Cut the central spline with wire clippers
d. Wrap 1.2"/30mm of foil down the length of the cable jacket (ensure that the conductive surface of the
foil is facing out)
e. Wrap the drain wire around the foil and cable sheath
