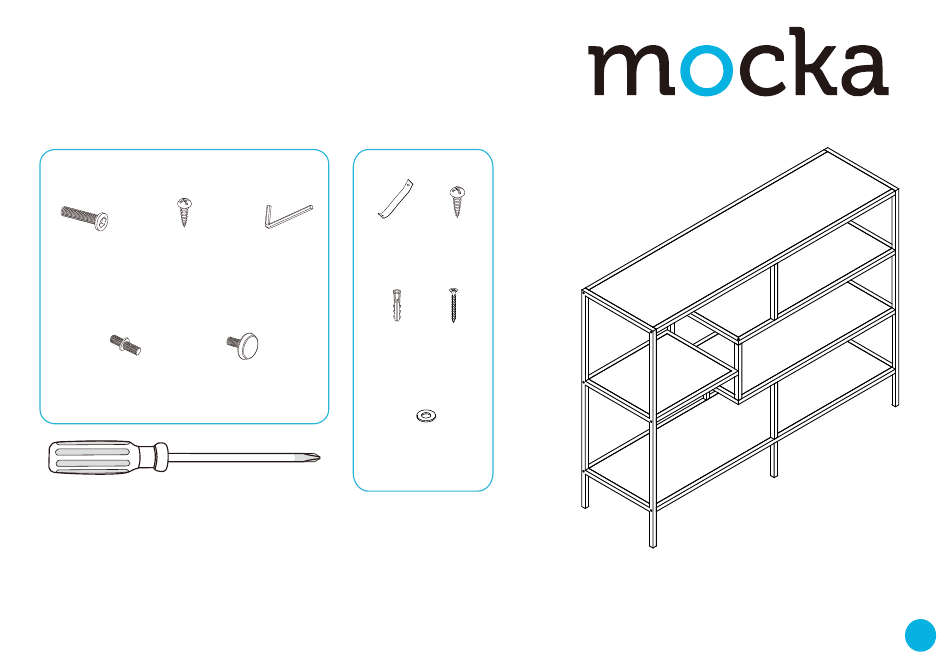

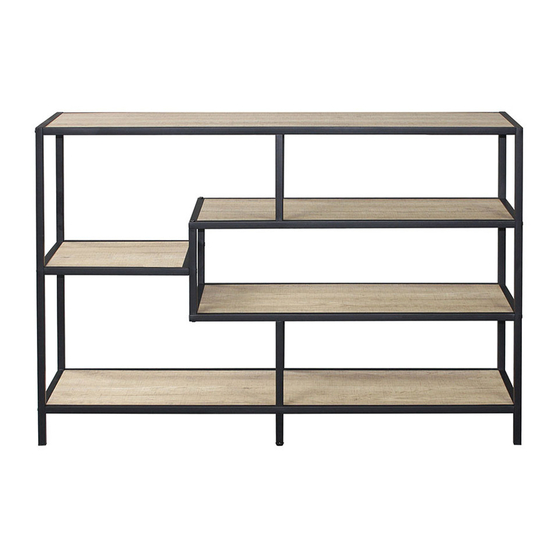

Milton 5 Shelf Plant Stand
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
screw
bolt
x22
x26
D
bolt
x6
Hardware Supplied
Phillips
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
V
C
safety
strap x2
Allen Key
x1
X
E
wall
anchor
x2
adjuster
x2
Wall Strap
W
screw
x2
Y
wall
screw
x2
Z
washer
x4
Maximum weight limit per shelf is 10kg
Indoor Use Only
