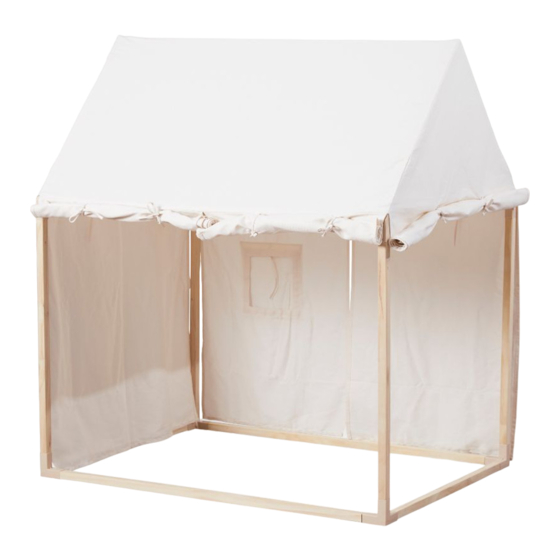

Mocka Safari Tent Assembly Instructions

Mocka Safari Tent

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

long pole

medium pole

left elbow

right elbow

Hardware Supplied

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

short pole

bottom elbow

top elbow

WARNING:

Keep all assembly parts and packaging materials

out of reach of children.

Retain packaging information for future reference.

Adult assembly required.

Age recommendation 18m +

Table of Contents

Do you have a question about the Safari Tent and is the answer not in the manual?

Page 1 Hardware Supplied WARNING: Keep all assembly parts and packaging materials out of reach of children. Retain packaging information for future reference. Adult assembly required. Age recommendation 18m + mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 2 Attach 1 x long pole (A) to 1 x short pole (B) and secure with 1 x botom Attach 1 x long pole (A) and 1 x short pole (B) to assembled frame as elbow (E). shown and secure with 2 x bottom elbows (E). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 3 Attach 4 x medium poles (B) to assembled frame as shown. Attach 2 x large poles (A) to assembled frame and secure with 2 x left elbow (I) and 2 x right elbow (H). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 4 Assembly Instructions Attach 4 x medium poles (D) to assembled frame as shown. Attach 1 x long pole (A) to assembled frame and secure with 2 x top elbows (J). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
Page 5 Ensure all elbows and poles are fastened. Once assembled lift Place cover over frame as shown. You’re done, enjoy! furniture into place, do not drag. Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
