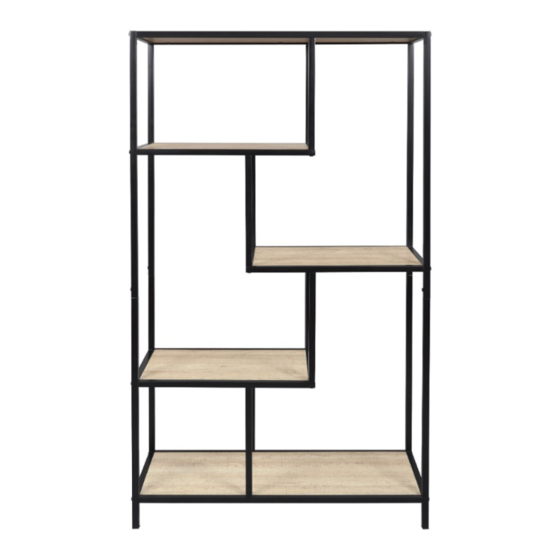

Milton Medium Plant Stand
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
screw
x23
x4
E
D
bolt
bolt
x8
x22
Hardware Supplied
Phillips screwdrivers
required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
V
C
safety
strap x1
Allen Key
X
x1
wall
anchor
x1
Z
washer
x2
Wall Strap
W
screw
x1
Y
wall
screw
x1
Maximum weight limit per shelf is 10kg
Indoor Use Only
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Milton Medium Plant Stand and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Milton Medium Plant Stand

  • Page 1 The fixing device provided should fit most wall types, but please note that different wall materials may require different fixing devices from those supplied. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Milton Medium Plant Stand Assembly Instructions Panel Layout 3 10 3 11 3 12 mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 [3] and [4] to panel [1] and secure with 5x screws [B]. Attach 1x safety strap (V) and 1x washer (Z) to panel [3] and secure with 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach panels [6] to panel [5] and secure with 2x bolts (D) as shown. Attach panels [6] to panel [3] and [4] and secure with 2x bolts (D) as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Attach panel [5] to panels [6] and secure with 2x bolts (E). Tighten with Attach panel [5] to panels [6] and secure with 2x bolts (E). Tighten an Allen Key (C). with an Allen Key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach panel [5] to panels [6] and secure with 2x bolts (E). Tighten Attach panels [11] and [12] to panels [6] and secure with 2x bolts (E). with an Allen Key (C). Tighten with an Allen Key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 Attach panels [7] and [8] to panels [1] and [2] and secure panel [9] to panel [10] and secure with 2x bolts (A). Tighten with with 8x bolts (E). Tighten with an Allen Key (C). an Allen Key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 (V). Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
