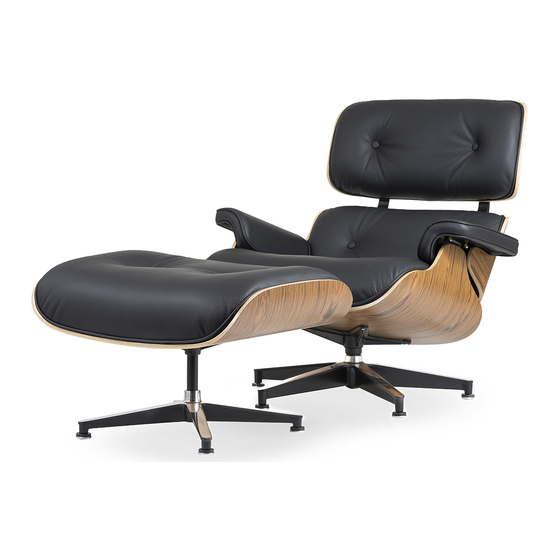

Replica Eames Lounge Chair & Ottoman
ASSEMBLY INSTRUCTIONS
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
legs
cylinder
x2
x2
E
F
chair
chair back
seat x1
rest x1
I
J
steel
30mm
bracket x2
bolt x8

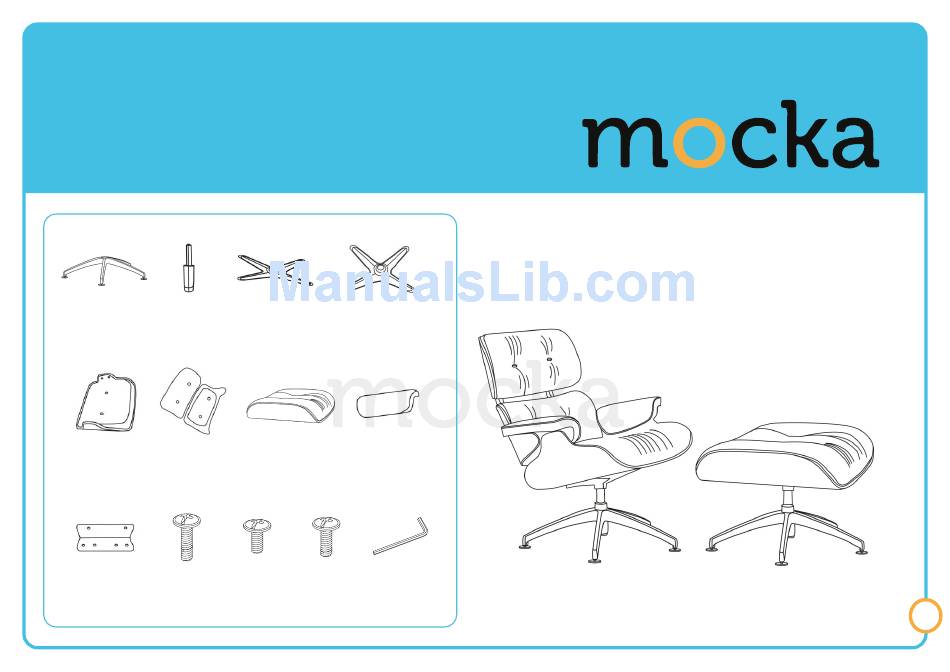

Hardware Supplied
mocka.co.nz | mocka.com.au
C
D
ottoman
chair
base x1
base x1
G
H
arm
ottoman
rest x2
cushion x1
K
L
M
15mm
20mm
allen
bolt x8
bolt x4
key x1
1
Advertisement
Table of Contents
Related Manuals for Mocka Replica Eames Lounge Chair & Ottoman
Summary of Contents for Mocka Replica Eames Lounge Chair & Ottoman
- Page 1 30mm 15mm 20mm allen bracket x2 bolt x8 bolt x8 bolt x4 key x1 Hardware Supplied mocka.co.nz | mocka.com.au...
- Page 2 (C) as shown. Fit legs (A) onto the cylinder (J). Tighten with the allen key (M). (B) and press down to fit into place. Carefully turn the ottoman over onto its feet. Ottoman weight limit = 110kg. mocka.co.nz | mocka.com.au...
- Page 3 [R] steel brackets (I) as shown. Secure using 8x 15mm bolts bolts (L) and tighten with the allen key (M). Zip tabs to the back on each (K) and tighten with the allen key (M). side. mocka.co.nz | mocka.com.au...
- Page 4 Roll the chair onto its front and attach the chair base (D) using 4x Attach the short cylinder (B) to the chair base (D). Attach the legs (A) 30mm bolts (J). Tighten with the allen key (M). onto the bottom of the cylinder (B) as shown. mocka.co.nz | mocka.com.au...
- Page 5 Turn the chair over onto its feet ensure it is steady before use. Chair Check the bolts regularly to ensure they are tight so the chair remains weight limit = 160kg. nice and sturdy. You’re done, enjoy! mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au...
