Summary of Contents for UR FOG FAST 01 NEW

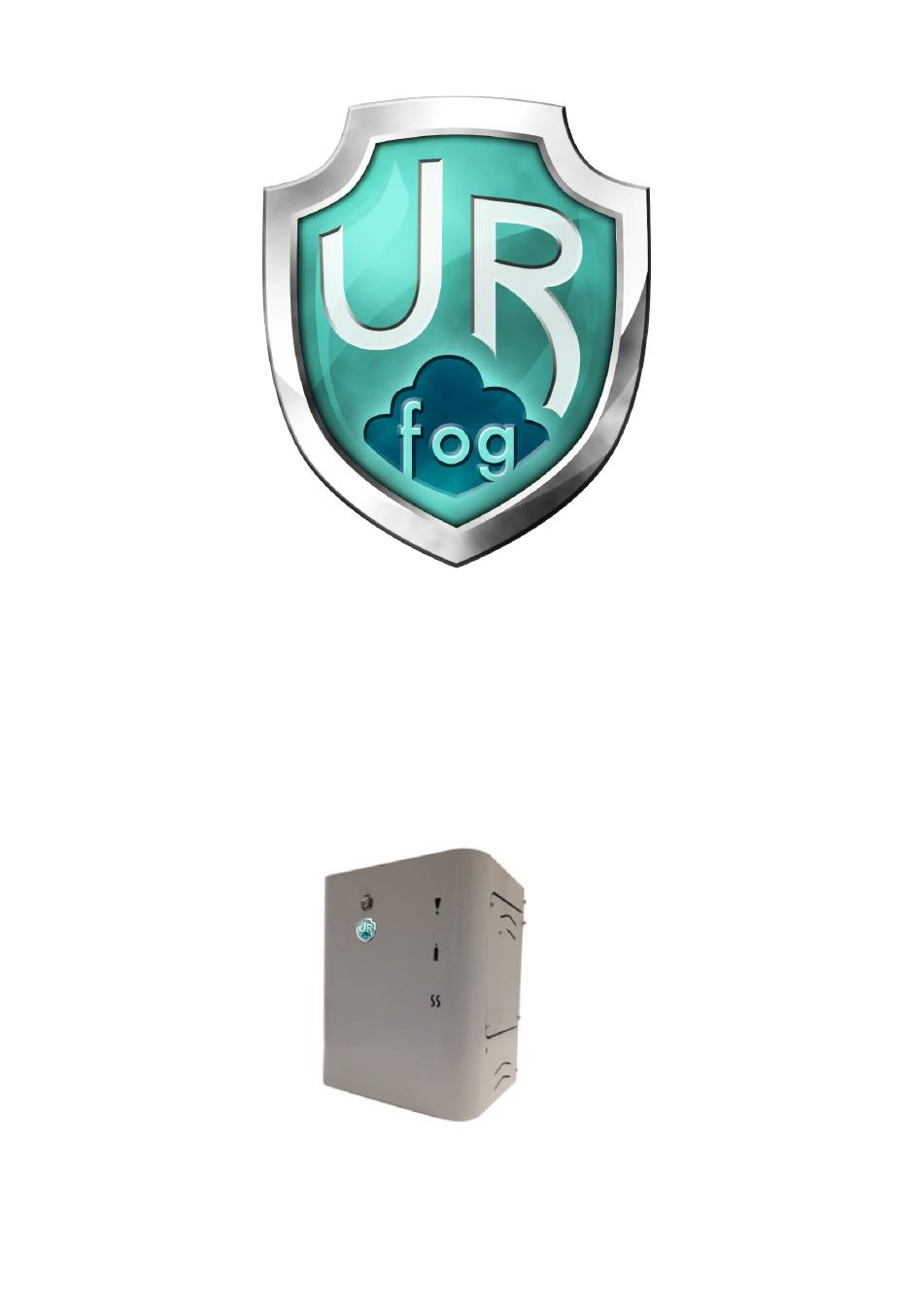

- Page 1 INSTALLATION AND USE MANUAL FAST 01 NEW mod. ENGLISH MANUAL Installation and use manual FAST 01 NEW 220V Page 1 of 21...
-
Page 2: Package Contents
1. The machine FAST 01 NEW, 2. 2 charged fog fluid cylinders of 600 ml. 3. A window transparency in order to indicate the device is installed. 4. Installation and use manual. Installation and use manual FAST 01 NEW 220V Page 2 of 21... -
Page 3: Presentation Of The Product
CONDITIONS OF USE AND WARNINGS The fog generated by UR Fog does not create particular problems or injuries for a human being for a short stay in a fogged room if the system is used according to the manufacturer’s recommendations. Generated fog is certified as safe for people and animals from an authorized international certification company and is proved that it does not leave any residual. - Page 4 11. Never direct the fog jet towards an object or a wall less than 2 meters away and if possible increase the suggested minimum distance. Thanks to the power of the jet, UR Fog reaches and exceeds more than 10 meters away in the first 3 seconds from the point where the machine is installed.
-
Page 5: How To Activate The System
Inside it is possible to see the front part of the electronic circuit, from here on called PCB. Installation and use manual FAST 01 NEW 220V Page 5 of 21... -
Page 6: Technical Specifications
Ground connection Neutral 220V Phase 220V IF YOU NEED TO REPLACE THE FUSE, USE THE ONE WITH EXACTLY THE SAME SPECIFICATIONS. IF IN DOUBT, ASK YOUR AUTHORIZED DEALER Installation and use manual FAST 01 NEW 220V Page 6 of 21... -
Page 7: Battery Power
2 hours and 30 minutes, or until the temperature of the heat exchanger (heating system) will allow, Fast 01 may produce fog. The maximum current drawn from UR Fog on this input is 230 mA. Arming input By connecting this input to positive, Fast 01 is armed, blue frontal led is switched on and when the machine reaches proper temperature it means that it is ready for shooting. - Page 8 If the shot command is given when the heat exchanger in not in temperature (maybe after an electrical failure) or in the 20 seconds inhibition time after arming, it will not change its state. Installation and use manual FAST 01 NEW 220V Page 8 of 21...
-
Page 9: Connection Examples
Example of connection of the UR Fog outputs with balanced inputs of an antitheft - Example of connection UR Fog inputs with outputs of a central alarm In the diagram above the control panel, as example, provides to UR Fog power supply between 11 and 14V DC 250 mA max. - Page 10 Maximum applicable power on the outputs is 100mA - Example of connection of the UR Fog outputs with inputs of an antitheft normally opened The UR Fog outputs are normally opened and connected with input zones of the alarm control panel opened According to the diagram above: when there is an empty cylinder the entrance area L3 will detect an alarm;...
-
Page 11: Frontal Leds
In this diagram, putting the resistance value required by the alarm control panel used in the terminal UR Fog, with not used outputs the central will see the correct resistance, while following the activation of an output, you will have a pull-down causing the alarm of the corresponding zone. - Page 12 If you want to get a visibility of one meter after 60 seconds as required by EN50131-8 standards, which is used as a reference by all manufacturers of Fog Cannons, you need to double the value reported in M3 column. Installation and use manual FAST 01 NEW 220V Page 12 of 21...
- Page 13 Attention: Before opening the side doors, make sure the alarm control panel is in "service" mode, so that the opening of "anti-sabotage or tamper" circuit will not cause any alarm. Installation and use manual FAST 01 NEW 220V Page 13 of 21...
-
Page 14: Maintenance
MAINTENANCE UR Fog generators do not require special care, however, it recommended an annual inspection by qualified and authorized personnel, taking into account the following: - The charged cylinders have a predetermined duration of 3years. - The expiry date is printed on the top of the cylinder. - Page 15 LED. Don not switch off the electronic board before 30 minutes, because in this case time count will start from zero again. In case, after this procedure, the machine is still in alarm status, contact the technical support Installation and use manual FAST 01 NEW 220V Page 15 of 21...
- Page 16 We recommend to throw away the batteries into appropriate containers for recycling Heavy metals contained in the batteries are recyclable Empty cylinders are aluminum and steel Metals are easily retrievable Installation and use manual FAST 01 NEW 220V Page 16 of 21...
- Page 17 Verify, once the alarm is on, that there is a tension of 12 Wiring error V at least between - GND(5) + SHOOTS(4) Installation and use manual FAST 01 NEW 220V Page 17 of 21...
- Page 18 When setting shooting time, the buzzer does not P3 Jumper left in “RESET” See shooting time settings in paragraph 13 sound and LEDs do not position flash Installation and use manual FAST 01 NEW 220V Page 18 of 21...
- Page 19 17 Warranty and Conditions of Use UR Fog warranty lasts for two years and is handled directly from the dealer or authorized installer, so please contact your supplier to take advantage of warranty with the copy of the purchase document including the serial number of the machine.
- Page 20 MAINTENANCES DATE BATTERY EXCHANGE CYLINDERS EXCHANGE SIGNATURE Installation and use manual FAST 01 NEW 220V Page 20 of 21...
- Page 21 DICHIARAZIONE DI CONFORMITA' DECLARATION OF CONFORMITY COSTRUTTORE: UR Fog srl, sede legale: Via Giacinto Collegno 11 - 10143 - Torino - Italy Sede operativa: Via Toscana 38 - 10153 -Torino - Italy MANUFACTURER: UR Fog srl, Legal office: Via Giacinto Collegno 11 - 10143 - Torino - Italy Operation and delivery to: Via Toscana 38 - 10153 - Torino –...
