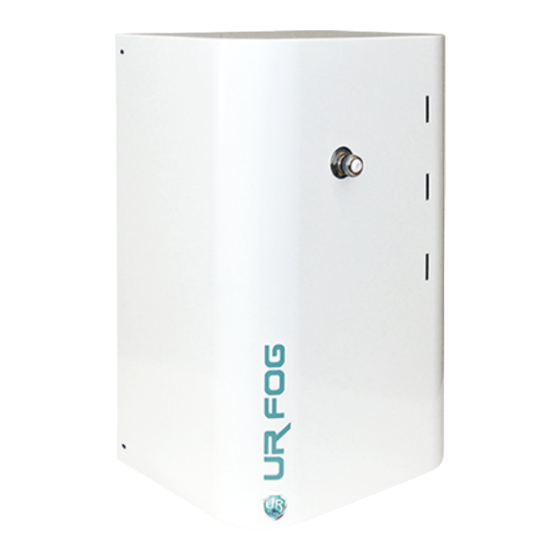

- Page 1 INSTALLATION AND USE MANUAL FAST PRO PLUS FAST 03 1C PRO PLUS FAST 03 2C PRO PLUS FAST 02 2C PRO PLUS ENGLISH MANUAL Installation and use manual models FAST PRO PLUS 120 v/230 v rev. 22/08/2021 page 1 of 23...
-
Page 2: Table Of Contents
WARNING!! All UR FOG fogging systems should only be used with UR FOG-branded fluids. It is strictly forbidden to use any fluid not previously authorized in writing by UR FOG srl. SUMMARY Package contents page 2 Introduction of the product... -
Page 3: Introduction Of The Product
CONDITIONS OF USE AND WARNINGS The fog generated by UR Fog does not create particular problems or injuries for a human being for a short stay in a fogged room if the system is used according to the manufacturer’s recommendations. -
Page 4: Installations Tips For Fogging Systems
13. UR Fog continues to be effective for up to 2 hours without 220V and 110V main power thanks to the insulation system which maintains the temperature in the heating system. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS * Industrial standard as from other FAST 03 PRO PLUS FAST 02 PRO PLUS manufacturers Weight without tanks and battery 11,8 Kg 15,0 Kg Max fog emission in a single shot 200 m 400 m Total fog emission capacity 1200 m (1C) - 2400 m (2C) -
Page 6: How To Activate The System
HOW TO ACTIVATE THE SYSTEM It is always recommended to fix the fog generator to a wall even when it is placed on a flat surface. The optional bracket, mainly recommended for ceiling installation, can also simplify standard installation, by allowing to use back holes for the passage of cables. Remember to use the fixing screw placed in the cylinders compartment. -
Page 7: Mains Power And Power Supply Connections
MAINS POWER AND POWER SUPPLY CONNECTIONS 230V and 110V power source supplies energy only to the heating system. The electronic board and the cylinder’s pump are supplied from the alarm system and batteries. The heating element is of 300W, at the very beginning power consumption is about 270W and in some minutes it goes down reaching average consumption is about 37W - 42W. -
Page 8: Description Of Input And Output Connections
While connecting the machine to the mains power, it is raccomended to never disconnect existing ground cable. The fact of disconnecting or modifing existing cables voids the warranty and can cause troubles or accidents related to the temperature control. Connect ground cable from the system to the screw on the metal sheet. - Page 9 INPUTS + 12V Power input The power supply is connected to those inputs. INPUT SIGNALS A By connecting this input to positive, FAST PRO PLUS is armed, blue frontal LED is switched on and when the machine reaches proper temperature it means that it is ready for shooting. S Putting this input to positive, if FAST PRO PLUS is hot and armed, starts fog emission for the set time In case of alarm, opening ARM input, the fog emission stops immediately, even if the time set wasn’t reached.
-
Page 10: Connection Examples
PUMP PRO PLUS In the diagram above the control panel, as example, provides to UR Fog power supply between 11 and 14V DC 250 mA max. The ON/OFF output of this alarm is an Open Collector NPN opened when the system is off and it is stably closed to negative as long as the system turned on. - Page 11 B - Esempio di collegamento degli ingressi di FAST PRO PLUS con una centrale di antifurto dotata di uscite a relè +12V INPUT GND INPUT ARM INPUT SHOOT INPUT EMPTY OUT RELÈ ON/OFF FAULT OUT TAMPER OUT CONFIRM OUT RELÈ ALARM +12V OUT GND OUT...
- Page 12 Example of connection of FAST PRO PLUS outputs with balanced inputs of an antitheft In this diagram, by putting a resistance with a value required by the alarm control panel +12V INPUT used, in UR Fog terminal with not used GND INPUT ARM INPUT outputs the central will see the correct SHOOT INPUT resistance.
- Page 13 G - Example of connection of FAST PRO PLUS outputs with antirobbery connection. ANTI-ROBBERY SHOOT ANTI-ROBBERY VALIDATION ANTIROBBERY COMMAND COMMAND Using the special connector and enabling the option antirobbery closing the Jumper W2, you will obtain the immediate emission of the fog for the seconds that you have set (paragraph13) even if the fogging system is not armed.
-
Page 14: Front Leds Meaning
MEANING OF FRONT LEDS BLUE LED When on it means the machine is armed and, if hot, it’s ready to shoot. FAULT When flashing means something is wrong. (See paragraph 16 “DEFECTS AND POSSIBLE SOLUTIONS“) RED LED EMPTY RESERVE When on when at least one cylinder is empty or it is in reserve (only 1C model) (See paragraph 13 INSTALLATION, EXCHANGE AND CYLINDERS RESET) GREEN LED... - Page 15 N.B. To correctly dimension the machines it is needed to verify that the saturation of the area occurs in faster time than the one supposed for the theft. SHOOTING TABLE FAST 03 PRO PLUS (2C and 1C) m³ Seconds m³ Seconds m³...
-
Page 16: Nozzle Tamper
NOZZLE TAMPER The check of the obstruction of the nozzle is done with a little air flow, while a sensor check the pressure of the internal circuit. In case the sensor detect an increase of the internal pressure, means that there is an obstruction inside the nozzle. As consequence of the detection, if the generator is armed will occur a brief shot of 1 second in order to free the nozzle and to avoid another obstruction. -
Page 17: Installation, Exchange And Cylinders Reset
“anti-sabotage or tamper” circuit does not cause any alarm. MAINTENANCE UR Fog generators do not require special care, however, it is recommended the support of qualified and authorized personnel for periodic annual monitoring, taking into account the following:... - Page 18 Checking of the pneumatic circuit and the pressure control system THE TEST CAN BE DONE JUST BY QUALIFIED PERSONNEL Before starting the test of the pressure control it’s necessary: - to remove the cylinder - to be sure that the nozzle is cold - to be sure that the nozzle tamper pump is activated The pneumatic seal test must be done within a few seconds when the machine for nozzle tamper control is turned on, as the nozzle temperature...
-
Page 19: Reset From Fault Conditions (Blue And Red Leds)
RESET FROM FAULT CONDITION (BLUE and RED LEDS) This process is useful to discriminate false interpretations of faults caused by electrical shocks or serious problems on power supply from thermal loop problems. 1) Serious fault signal occurs with a first phase when the buzzer emits a continuous sound for 20 minutes and blue led flashes, the output FAULT immediately switch (if the generator is disconnected and connected again you can go directly at point 3). -
Page 20: Faults And Possible Solution
FAULTS AND POSSIBLE SOLUTION DEFECT FOUND POSSIBLE CAUSE POSSIBLE SOLUTION When you connect the When the machine is cold or has just emitted fog, not a fault machine you hear a relay until the exchanger has reached the working clicking cyclically temperature, a relay is activated with the triac to decrease the consumption. - Page 21 Verify that the alarm, once activated has tension on Wiring error connectors of at least 12 V between GND(5) + SHOOTS(4) Try to reset. See paragraph 13. In case of unsuccessful Overvoltage power line restore the PCB can be damaged, contact the assistance (110/220 V) service.
-
Page 22: Warranty
WARRANTY The warranty of UR Fog is two years and is handled directly from the dealer or authorized installer, so please contact your supplier to take advantage of warranty with the copy of the purchase document that contains the serial number of the machine. -
Page 23: Maintenance
MAINTENANCE DATE BATTERY EXCHANGE CYLINDER EXCHANGE SIGNATURE It is mandatory to fill out this table in accordance with the law... - Page 24 N.B. Ask for the PDF module writing to: support@urfog.com UR Fog S.r.l. Via Toscana 38 - 10099 San Mauro Torinese - Italy...
