- Page 1 Original User Manual FUXTEC FX-MS152 / FX-MS162...
- Page 2 ORIGINAL USER MANUAL Petrol Brush Cutter/Grass trimmer FX-MS152 / FX-MS162 Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come.
-
Page 3: Table Of Contents
Original User Manual FUXTEC FX-MS152 / FX-MS162 TABLE OF CONTENTS 1. TECHNICAL DATA .................... 4 2. SYMBOLS AND SAFETY INSTRUCTIONS ON THE DEVICE ......5 3. INTENDED USE AND GENERAL SAFETY INSTRUCTIONS ......8 4. HINTS FOR ACCESSORIES ................10 5. -
Page 4: Technical Data
Original User Manual FUXTEC FX-MS152 / FX-MS162 20. EC DECLARATION OF CONFORMITY ............29 We are continually striving to improve our products. Therefore technical data and illustrations may change! 1. Technical Data Type FX-MS152 FX-MS162 Engine air-cooled; 2-stroke air-cooled; 2-stroke Cubic capacity 51.7cm... -
Page 5: Symbols And Safety Instructions On The Device
Original User Manual FUXTEC FX-MS152 / FX-MS162 2. Symbols and safety instructions on the device WARNING! IMPROPER OPERATION MAY LEAD TO SERIOUS INJURY READ AND UNDERSTAND THIS USER MANUAL BEFORE USE. ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND HEAD PROTECTION WEAR FOOT PROTECTION. - Page 6 Original User Manual FUXTEC FX-MS152 / FX-MS162 NO SMOKING AND OPEN FLAMES NEAR THE DEVICE WARNING: DANGER OF HOT COMPONENTS ALWAYS SWITCH OFF THE DEVICE AND ENSURE THAT THE CUTTING TOOL IS STOPPED BEFORE CLEANING, REMOVING OR ADJUSTING IT. WARNING:...
- Page 7 Original User Manual FUXTEC FX-MS152 / FX-MS162 Prolonged use of the device exposes the user to shocks that can lead to white finger disease (Raynaud's syndrome) or carpal tunnel syndrome. This condition reduces the hand's ability to sense and regulate temperature, causes numbness and heat sensations, and can lead to nerve and circulatory damage and tissue death.
-
Page 8: Intended Use And General Safety Instructions
Original User Manual FUXTEC FX-MS152 / FX-MS162 3. Intended use and general safety instructions This device may only be used for mowing or trimming grass, weeds, and undergrowth. Never use it for other purposes, as this can cause serious injuries! Correct safety instructions must be followed. - Page 9 Original User Manual FUXTEC FX-MS152 / FX-MS162 position. ● Children must not have access to the device. Spectators should stand at least 15 meters away from the working area. ● Keep hands and feet away from the nylon cutting head or metal blade during operation.
-
Page 10: Hints For Accessories
Original User Manual FUXTEC FX-MS152 / FX-MS162 4. Hints for accessories ● Make sure that your product is only equipped with original accessories. Only use original parts that are specified by the manufacturer. The use of any other accessories or attachments may cause injury to the user and damage to the device. -
Page 11: Notes On Working With The Metal Blade
Original User Manual FUXTEC FX-MS152 / FX-MS162 severe enough that the operator loses control of the device. A cutter blade kick- back can occur without warning if the cutter blade encounters an obstacle that becomes blocked or jams. This is more likely in areas where it is difficult to see the material being cut. - Page 12 Original User Manual FUXTEC FX-MS152 / FX-MS162 WARNING DANGER Also, wear head, eye, face and hearing protection, and safety shoes. Do not wear rings, jewelry or loose, dangling clothes that could get caught in the device. Do not wear footwear with unprotected toes and do not work barefoot or without leg protection.
-
Page 13: Putting On The Shoulder Harness
Original User Manual FUXTEC FX-MS152 / FX-MS162 6. Putting on the shoulder harness The shoulder strap is equipped with a quick- release device (see picture). You can quickly remove the shoulder strap by pulling on the quick-release device. Read the manual carefully. Be thoroughly familiar with the control and correct use of the device. -
Page 14: Component Overview
Original User Manual FUXTEC FX-MS152 / FX-MS162 7. Component overview Nylon thread head Cutting blades Shield Drive axle U-Handle Auxiliary handle Accelerator handle Throttle lock* Start/stop switch 10. Gas interlock** 11. Throttle 12. Tank 13. Exhaust pipe 14. Connector 15. Locking screw 16. -
Page 15: Mounting The Device
Original User Manual FUXTEC FX-MS152 / FX-MS162 8. Mounting the device Attaching the handle The handle must be fitted before use. Follow the illustrations below for correct installation. Mounting the handle tube for use Place cup B up and down on the shaft tube, screw both cups and the shaft tube together. - Page 16 Original User Manual FUXTEC FX-MS152 / FX-MS162 Installing the protective shield Install the protective shield with the opening facing downwards towards the gearbox housing. Tighten the holder of the guard so that the blade guard does not move or slide down during operation.
- Page 17 Original User Manual FUXTEC FX-MS152 / FX-MS162 Installation of the lawn trimmer (thread spool) Step 1: Insert the key (1) into the hole in the gearhead so that the gear shaft is locked. Unscrew and remove the nut. Since it is a safety nut, please make sure that there is a left-hand thread here.
- Page 18 Original User Manual FUXTEC FX-MS152 / FX-MS162 FUEL MIXTURE Mix fuel with 2-stroke oil in a container provided for this purpose. Note the following the mixture table on the following page for the correct fuel/oil ratio. Shake the tank to ensure complete mixing.
-
Page 19: Cold Starting The Engine
Original User Manual FUXTEC FX-MS152 / FX-MS162 9. Cold starting the engine Place the device on a firm and flat surface. Slide the engine stop switch down. Set the choke lever upwards to "COLD START." Press the carburetor pump about 8-10 times (until petrol flows in the line) Pull out the starter rope with a short-stroke until resistance is felt (about 100mm). -
Page 20: Warm Start Of The Engine
Original User Manual FUXTEC FX-MS152 / FX-MS162 NOTE: If the engine does not start after repeated attempts, please read the troubleshooting chapter. NOTE: Always pull the starter cord straight out. Pulling the starter at an angle will cause the rope to rub against the eyelet. The oblique pulling can cause the starter cable to fray or break. - Page 21 Original User Manual FUXTEC FX-MS152 / FX-MS162 Whirling objects can cause serious injury to users or bystanders and damage the device. If an object is accidentally knocked, immediately stop the ENGINE and check the device. Never run the device with damaged or defective parts.
-
Page 22: Replacing Nylon Thread
Original User Manual FUXTEC FX-MS152 / FX-MS162 or weeds with the tip of the thread. Replacing Nylon Thread 1. Switch off the engine. 2. Place the trimmer on the ground so that the drive axle with the coil is exposed and remove the nylon head. -
Page 23: Maintenance Schedule
Original User Manual FUXTEC FX-MS152 / FX-MS162 Maintenance schedule Regular checks and adjustments must be made to ensure that the petrol engine maintains its performance. Periodic maintenance also provides a long service life. See the following table for the regular maintenance cycle. - Page 24 Original User Manual FUXTEC FX-MS152 / FX-MS162 Cleaning the air filter CAUTION: Never run the engine without the air filter. A dirty air filter puts pressure on engine performance, increases fuel consumption, and makes starting more difficult. If you notice a loss of engine power: 1 Remove the screw on the filter cover and take out the filter.
-
Page 25: Storage Of The Device
Original User Manual FUXTEC FX-MS152 / FX-MS162 WARNING The spark plug must be screwed down tightly; otherwise, the engine runs hot and is damaged. Sharpen the shielded knife 1. Remove cutting blade (E) from a protective shield (F). 2. Clamp the knife in a vice. -
Page 26: Troubleshooting
Original User Manual FUXTEC FX-MS152 / FX-MS162 Troubleshooting 1. Difficulties during commissioning Situation Cause Solution Clean the spark plug. Carbon deposit between the Adjust the gap Spark plug diodes of the spark plug 0.6~0.7mm, replace No ignition spark the spark plug... -
Page 27: Customer Service
Carburetor leaking Carburetor gasket is worn out Replace carburetor or gasket If no troubleshooting solves the problem, please contact the FUXTEC customer service. Only use original parts approved by the manufacturer. Otherwise, there is a risk of danger. Customer Service Have your purchased device repaired only by qualified personnel and only with original spare parts. -
Page 28: Warranty
Original User Manual FUXTEC FX-MS152 / FX-MS162 Warranty The warranty period is 24 months from the date of purchase. Please keep your proof of purchase in a safe place. Excluded from the warranty are wearing parts and damage caused by improper use, use of force, technical modifications, use of incorrect accessories or non-original spare parts, and repair attempts by non-qualified personnel. - Page 29 Original User Manual FUXTEC FX-MS152 / FX-MS162 EC Declaration of Conformity We hereby declare, FUXTEC GMBH KAPPSTRAßE 69, 71083 HERRENBERG, GERMANY that the device described below, by its design and construction and in the version marketed by us, complies with the relevant essential health and safety requirements of the EC directives.
- Page 30 Original User Manual FUXTEC FX-MS152 / FX-MS162...
Need help?
Do you have a question about the FX-MS152 and is the answer not in the manual?
Questions and answers

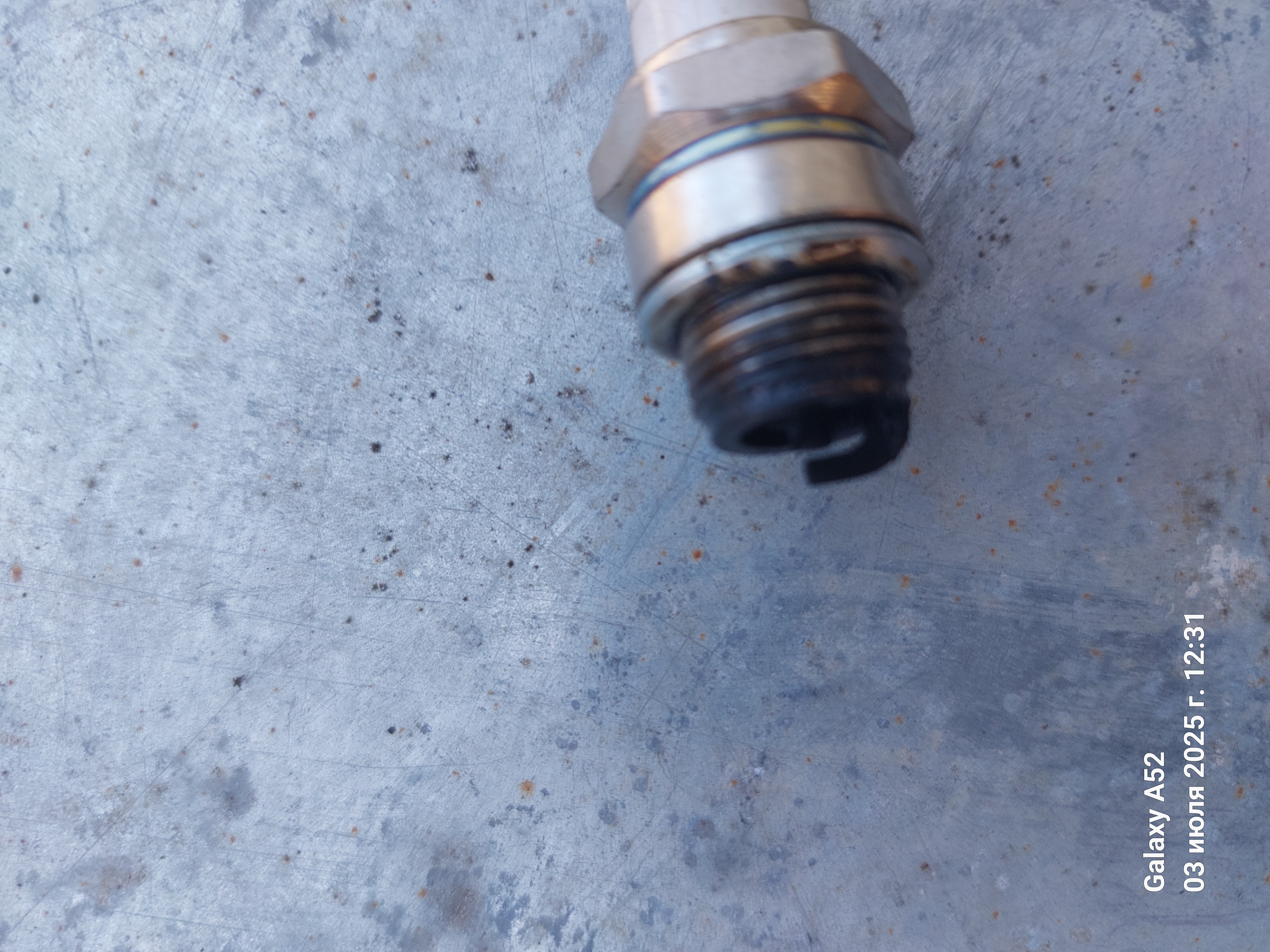

Через 1-2 часа работы глохнет, свеча черная, приходится менять.
