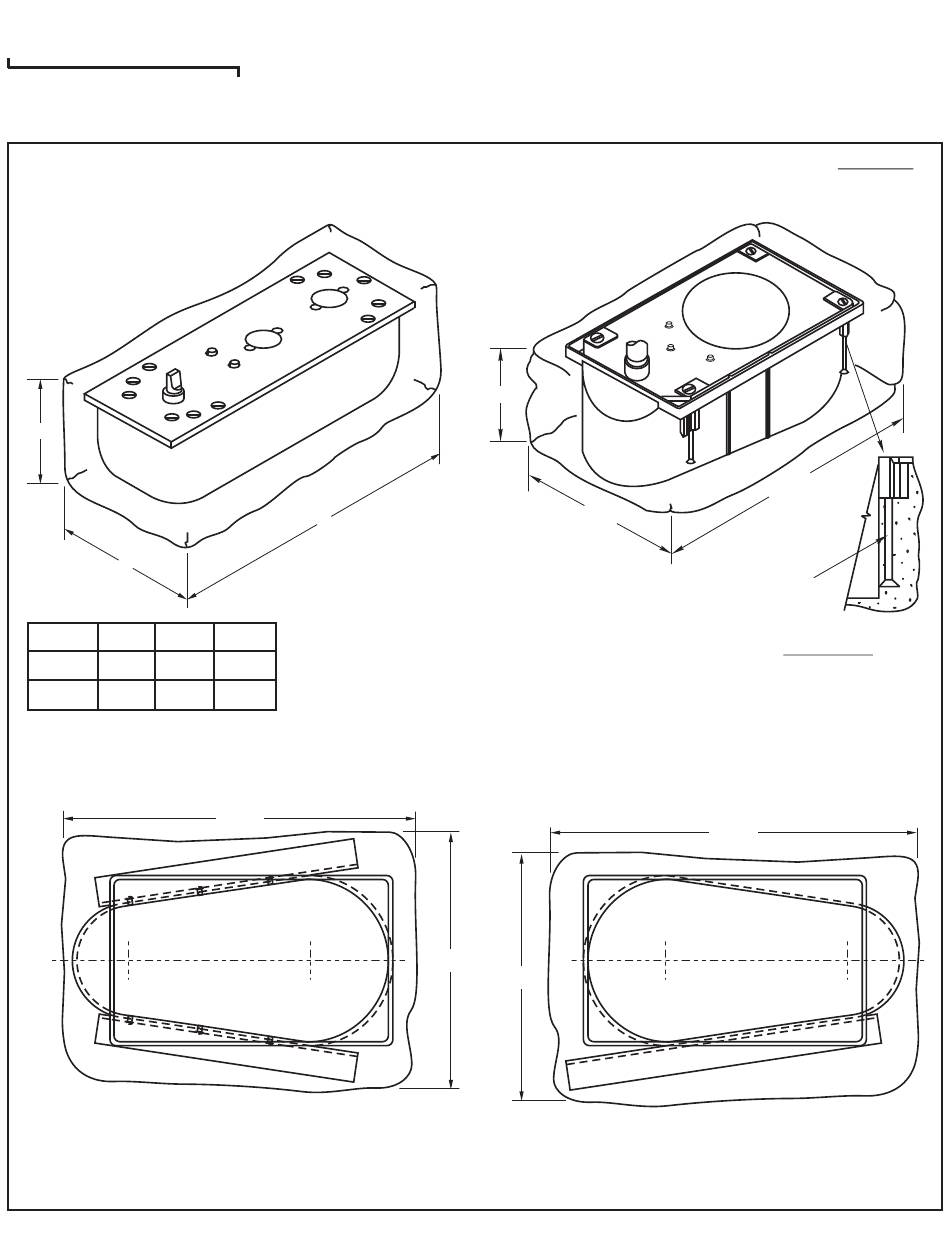

30/40 Cement Case
A
B
B
Closer
A
No. 30
4
7
4-1/2
7-1/2
No. 40
79501 Cement Case
4-1/2" Deep
Note:
1. Do not scale drawing.
2. Dimensions given in inches. Conversion from inches to metric: inch x 25.4.
3. If necessary to prevent cement from entering foundation case, apply duct tape to
seal the gap between closer and foundation case.
40016 (03-09)
®
Installation Instructions
Blocking Instructions
Check template for location of rough hole.
C
C
15-1/2
18
12-1/2
40016 (03-09)
25-28 Cement Case
4-1/2
7-1/2
1101 Cement Case
4-1/2" Deep
Concrete pour should not go past expansion joint.
4" to outside of building/5-1/2 to inside.
10-1/2
9-1/2
www.rixson.com
185 Quick Spotter
For use with
Closer Models 25, 26, 27,
28,
Cement Cases 79501 & 1101
Figure 1
12-1/2
COVER
ANCHORS
COMPLETELY
WITH CEMENT
Figure 1A
12-1/2
866-474-9766 Technical Department
30, & 40
5/88
Advertisement
Related Manuals for Assa Abloy RIXSON 185 Quick Spotter
Summary of Contents for Assa Abloy RIXSON 185 Quick Spotter
- Page 1 RIXSON 185 Quick Spotter ® For use with Closer Models 25, 26, 27, Installation Instructions ASSA ABLOY 30, & 40 40016 (03-09) Cement Cases 79501 & 1101 Blocking Instructions Figure 1 Check template for location of rough hole. 30/40 Cement Case...
- Page 2 Kit includes: 4 ea 1/4 -20 x 3/4 Flat Head Phillips Screws 4 ea #10-24 x 5/16 Round Head Phillips Screws 4 ea #10-24 x 3/4 Hex Washer Head Screws 2 ea Straps 1 Spindle locator 3/4 offset 1 Spindle locator 2-3/4 center hung 1 Bubble level No.
- Page 3 No. 25-27 Offset Closers Right Hand Shown Strap 3/4 Offset Only Strap Leveling Screw Mounting Screw Concrete Anchor (if needed) Spindle Locator Leveling Screw Level Spindle Leveling Screw Leveling Screw Concrete Anchor (if needed) No. 26-28 Center Hung Closers Strap Strap Leveling Screw Mounting...
- Page 4 (See Figure 1A on page 1) Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 1988, 2009, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
