Panduit CDE2 Instructions

Modular tor switch inlet duct

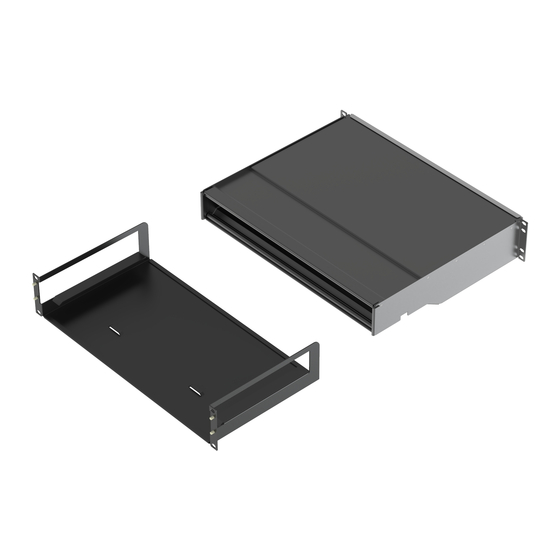

(1) Switch Ducting

(with hinged Perforated Door)

FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

Modular ToR Switch Inlet Duct

(CDE2)

INSTRUCTIONS CM429A

Component Guide

(1) Switch Support Bracket

Page 1 of 4

Cisco Nexus 2000 Series Switch

(reference)

CDE2

(installed in Net-Access

Server Cabinet)

#2 Philliips Screwdriver

5/16" Socket Wrench

3/8" Socket Wrench

1/4" Socket Driver

(1) Hardware Kit

(not shown)

Table of Contents

Do you have a question about the CDE2 and is the answer not in the manual?

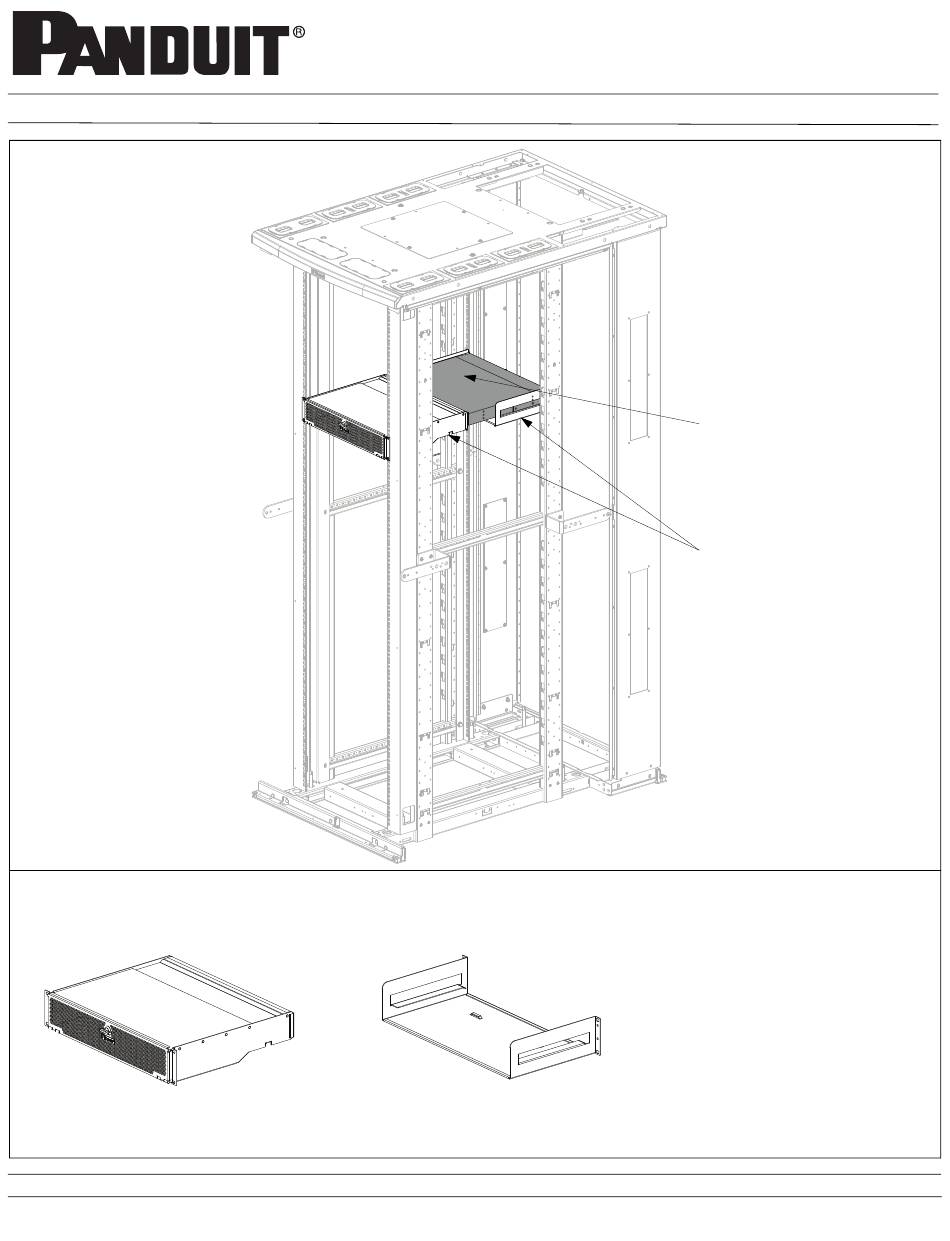

Page 1 Modular ToR Switch Inlet Duct (CDE2) INSTRUCTIONS CM429A © Panduit Corp. 2010 Cisco Nexus 2000 Series Switch (reference) CDE2 (installed in Net-Access Server Cabinet) TOOL LIST #2 Philliips Screwdriver 5/16” Socket Wrench 3/8” Socket Wrench 1/4” Socket Driver Component Guide...
Page 2 Switch Ducting and Switch Support Bracket components of CDE2 require two (2) rack spaces for installation. Switch Ducting and Switch Support Bracket are to be installed at the same vertical rack position. CDE2 components are to be installed prior to switch installation and are designed to support the switch.
Page 3 5/16” socket wrench) per rail. Ensure that hex head grounding screws fasten into grounding cage nuts. (2) #12-24 Hex Head Switch Support Grounding Screws Bracket Grounding Cage Nuts (use 5/16” socket wrench) (green) REAR OF CABINET (2) #12-24 Phillips Screws FRONT OF Cage Nuts CABINET (installed) For Technical Support: www.panduit.com/resources/install_maintain.asp Page 3 of 4...
Page 4 1 RU Switch (reference; port side of switch faces Hot Aisle) REAR OF CABINET Positioning Flange (4) #10-32 Acorn Nuts (use 3/8” socket wrench) For Instructions in Local Languages E-mail: and Technical Support: cs@panduit.com Fax: www.panduit.com/resources/install_maintain.asp (708)444-6448 www.panduit.com Page 4 of 4...
