Summary of Contents for Panduit PN380

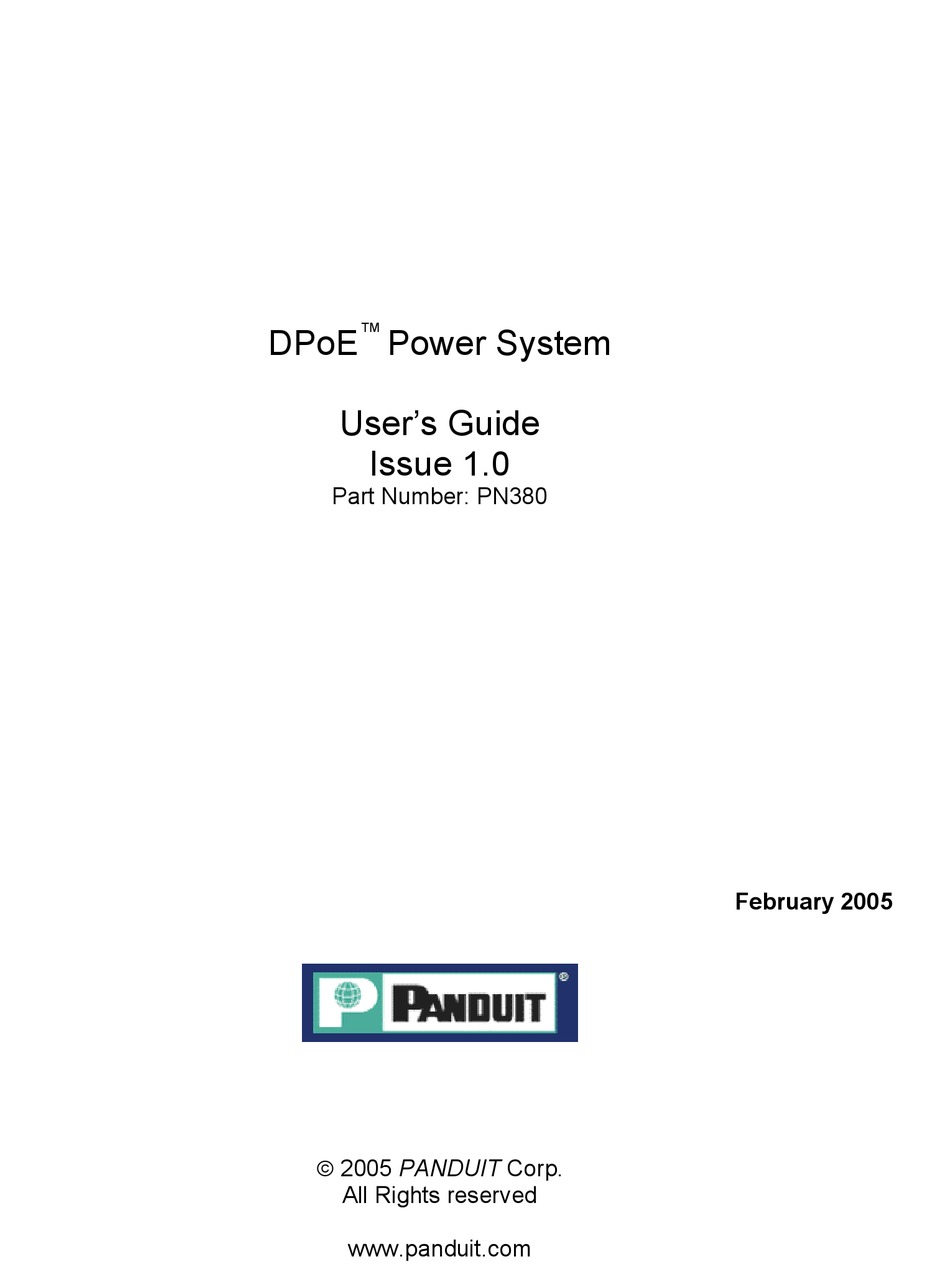

- Page 1 ™ DPoE Power System User’s Guide Issue 1.0 Part Number: PN380 February 2005 2005 PANDUIT Corp. All Rights reserved www.panduit.com...
-
Page 2: Safety Warnings
Unless otherwise specified, all products presented in this user's guide are warranted against defects in material and workmanship for a period of one year from the date of invoice by PANDUIT® Corp. to the initial purchaser. During the warranty period PANDUIT Corp. will, at its discretion, either repair or replace products that prove to be defective. - Page 3 PANDUIT Corp. specifically disclaims the implied warranties of merchantability and fitness for a particular purpose. The remedies provided herein are Buyer's sole and exclusive remedies. PANDUIT Corp. shall not be liable for any direct, indirect, special, incidental or consequential damages, whether based on contract, tort or other legal theory.
-
Page 4: Table Of Contents
Figure 11: Short Circuit & Current Limit ...12 Figure 12: Connecting the NIC Card to the DPoE Power Patch Panel Management Port ...13 List of Tables Table 1: DPoE Power Components Available from PANDUIT Corporation...2 Table 2 : Package Contents...3 Part Number: PN380... - Page 5 Table 4: Recommended AC Circuit Breaker and Wire Sizes……………………………………..…4 Table 5: Minimum Recommended DC AWG for 90° C Cabling for Unprotected Outputs ...7 Table 6: Recommended Torque Settings ...7 Table 7: PANDUIT Corporation Contact Information ...8 Table 8: Troubleshooting ...12 Table 9: NIC Default Settings ...13...
-
Page 6: Overview

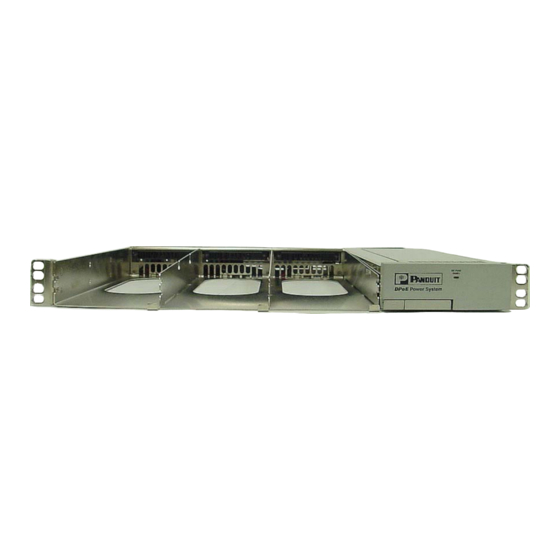

Powered Devices (PD) connected to the panel. In these cases, or in cases of multiple DPoE Power Patch Panels, a larger power system is often required. One option is to use the PANDUIT DPoE Power Patch Panel Power System, herein referred to as the DPoE Power System. -
Page 7: Installation
For connection and mounting torque requirements see Table 6: Recommended Torque Settings. PANDUIT Corp. does not recommend shipping the chassis with the rectifiers installed. Rectifiers should be shipped in their separate boxes. -
Page 8: Package Contents
Package Contents The DPoE Power system chasses (PANDUIT part number DPoEPWRCM or DPoEPWRCU) are shipped with the following included items. Item DPoE Power System User’s Guide Cord Brackets Screws with integrated washers Nuts Screws with integrated washers CD-ROM NOTE: GMT fuses, which are installed as part of installing the DPoE Power System, are NOT included with the shipment. -
Page 9: Dc Output Wiring Sizing
The National Electric Code table 310.16 provides ampacity values for various sizes, bundles, and insulation temperature rated wire. Rectifiers Maximum Maximum Input Rated AC Voltage Current (A) 17.6 Part Number: PN380 N+1 DC Out Circuit 90° C Breaker Minimum Minimum Wire Gauge value (A) (AWG) to use at 30°... -
Page 10: Connecting To A Dpoe Power Patch Panel
Each DPoE Power Patch Panel is shipped with a keyed power connector harness and two butt splices (PANDUIT part number BSV14X) for use in connecting the panel to the power source. The butt splices included with the DPoE Power Patch Panel will support 14 - 16 AWG solid or stranded wire. -
Page 11: Figure 3: Connecting To A Dpoe Power Patch Panel
1 & 2). The DPoE Power Patch Panel supports an optional redundant B- feed power option, but the terminals and wire leads are not attached to the power harness. Contact PANDUIT Technical Support for more information about connecting the redundant B-Feed power. WARNING: The power supply connections on the DPoE Power Patch Panel are polarized. -
Page 12: Torque Settings
Prior to unpacking the DPoE Power System, note any physical package damage that could indicate potential damage to the contents. After removing DPoE Power System from the boxes and packing material, inspect for shipping and/or other damage. Any problems should be reported to PANDUIT technical support. -
Page 13: Power Plant Mounting And Wiring
Table 7: PANDUIT Corporation Contact Information PANDUIT Technical Support For Installation Instructions in Local Languages and Technical Support Worldwide Subsidiaries and Sales Offices Have all tools, wire, cables, hardware, etc., within easy reach. To the extent possible, ensure a clean (free of debris, dust, foreign material, etc.) work environment. -
Page 14: Figure 5: Cord Bracket
Securing Screw Figure 6: Chassis (Rear View) - AC Connections Figure 7: Securing Cord Bracket to Chassis Figure 5: Cord Bracket #4-40 Screws Part Number: PN380 Cord Bracket IEC320 AC cord... -
Page 15: Dc Output
(1/4” single hole lug with a max tongue width of 0.63” or less). Terminal lugs (such as PANDUIT part number LCA4-14-L for use with #3 or #4 AWG stranded wire or #2 AWG solid wire) and crimping tools (such as the PANDUIT part numbers CT-1550, CT-1551, CT-1570, or CT-1700) are available from PANDUIT Corp. -
Page 16: Ethernet Connections
The rectifier will power up and configure itself. It will start in high fan speed mode and reduce the speed according to the ambient and plant conditions within 10 seconds. Figure 10: Installing or Removing Rectifiers Latch Button LEDs (AC OK, DC OK, ALM) Part Number: PN380 Latch Handle (in Open Position) -
Page 17: Short Circuit And Current Limit
Fuse Open NIC Information The PANDUIT DPoE Power System Chassis can be ordered with or without the NIC card. (PANDUIT part number DPoEPWRCM includes the NIC card. PANDUIT part number DPoEPWRCU does not). The NIC card allows the DPoE Power System to communicate with the management system. If a chassis is ordered and installed without a NIC card, it can be easily field upgraded to add the NIC card. -
Page 18: Nic Card Settings
This following information is only applicable to chasses with NIC cards. The NIC card can be connected via a standard straight through RJ45 patch cord (such as PANDUIT part number UTPCH3 or UTPSP3), through a hub or router, or via a crossover cord for direct connection. - Page 19 High temperature High temperature value at which the controller will trigger alarm threshold a HIGH TEMP alarm. (For systems using the NIC card (NIC card only) only.) Part Number: PN380 Default Setting 30 min. 52 VDC 42 VDC Disabled 35° C 72 mV/°C...
- Page 20 Parameter Description High temperature The temperature value at which the controller will release alarm release (NIC a HIGH TEMP alarm. (For systems using the NIC card Card only) only.) Password Administrator/User Part Number: PN380 Default Setting 93 °C 5001...
