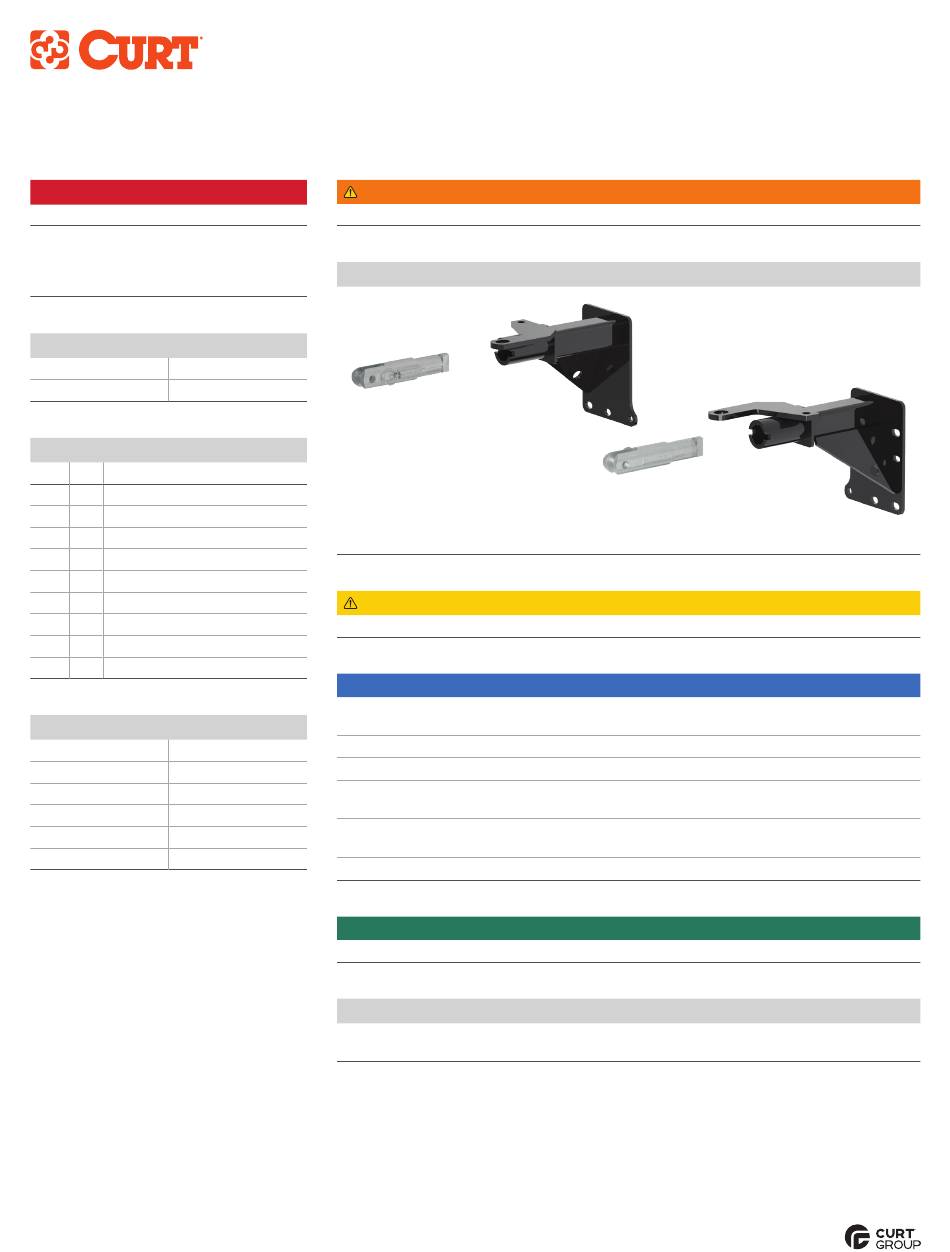

Curt Manufacturing 70103 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Difficult
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Installed Attachment Tabs
Height 20"
Width 37-1/4"
Parts List
Item Qty Description
1 1 Tow bar base plate, driver
2 1 Tow bar base plate, passenger
3 2 Tow bar mounting tab
4 2 Safety cable, 7,500 lbs.
5 2 Conical washer, 1/2"
6 2 Hex bolt, 1/2"-13, 5", grade 8
7 2 Round hole spacer, 2" x 1/4"
8 2 Quick link, 1/2"
9 2 Socket plug
Tools Required
Torque wrench Drill
Socket, 3/4" Drill bit, 1/4"
Socket, 8mm T27 Torx bit
Socket, 10mm Flat screwdriver
Socket, 15mm Wrench, 3/4"
Socket, 16mm --
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR).

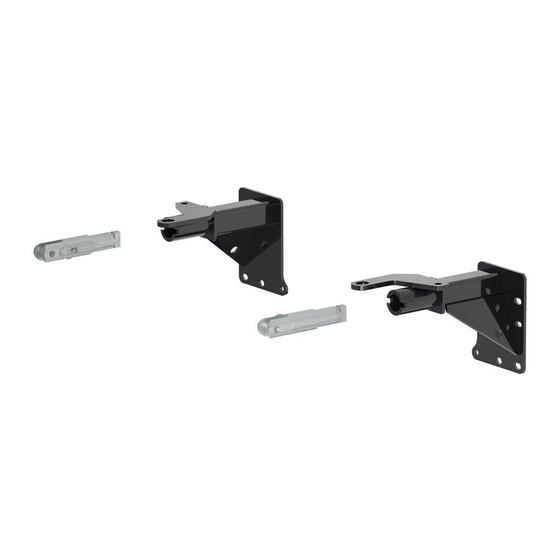

Product Photo
Not pictured: Safety cables, quick links and socket plugs
CAUTION
Take care when cutting any plastic or metal as injury may occur if done improperly.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires front fascia panels to be temporarily removed. The tow hooks and
frame rail extensions will not be reinstalled and should be returned to the vehicle owner.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
If equipped, we recommend removing the base plate attachment tabs when not in use.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• 70103-INS-RC • 04/14/2020 • ECN6926 • PAGE 1
70103
