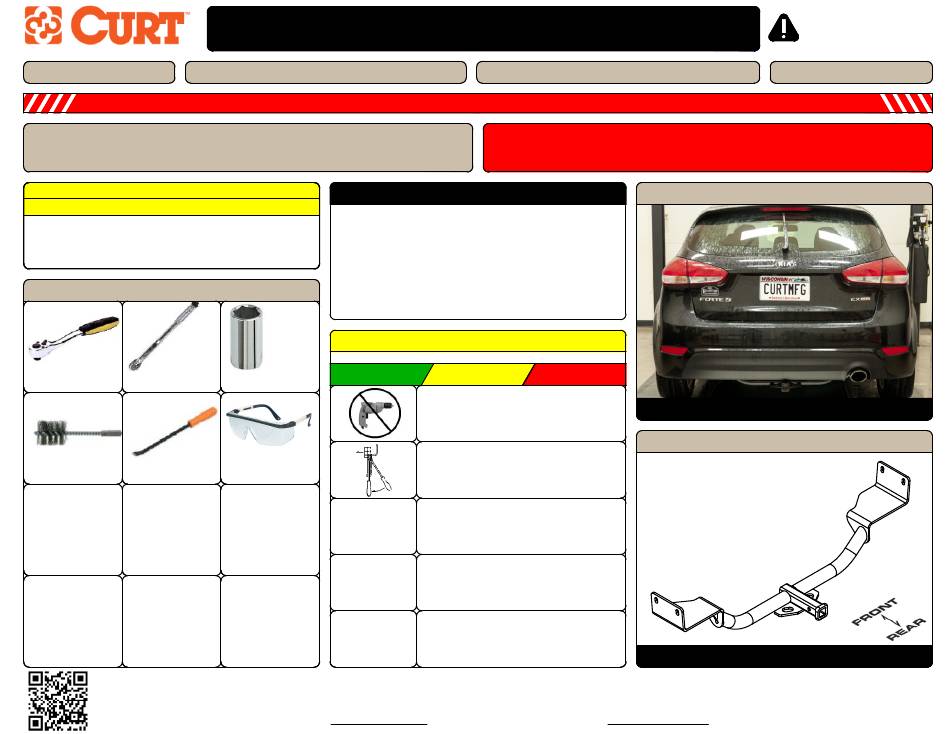

YEARS: 2014-CURRENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
WRENCH
RATCHET
WIRE PIPE
PRY BAR
BRUSH
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
SCAN FOR
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
MORE INFO
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
11395
INSTALLATION INSTRUCTIONS
KIA
TRAILER WEIGHT:
2,000
LBS.
TONGUE WEIGHT:
200
LBS.
20
MIN.
INSTALLATION TIPS:
40 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
17mm
LEVEL OF DIFFICULTY:
EASY
SOCKET
SAFETY
GLASSES
MODEL: FORTE5
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
- NO DRILLING REQUIRED
- LOWER EXHAUST
REQUIRED
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
HATCHBACK
3/28/2017
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing 111395
Summary of Contents for Curt Manufacturing 111395
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, SCAN FOR CURT Manufacturing LLC.
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. Lower exhaust by removing (2) rubber isolators from Parts List the exhaust side leaving the isolators attached to ITEM PART NUMBER DESCRIPTION the vehicle. Exhaust will be supported by the rear 3/8" CONICAL TOOTHED WASHER axle. (see Rubber Isolator Removal Diagram) M10 - 1.25 x 25 HEX BOLT EXISTING... -
Page 3: Installation Complete
INSTALLATION WALKTHROUGH: 3. Loosely secure hitch with M10-1.25 x 25mm hex bolts and 5. Raise exhaust back into position if lowered. 3/8" conical toothed washers through existing weldnuts in outside of frame rails. 4. Torque 10mm hardware to 48 ft-lbs. Installation complete For more information log onto www.curtmfg.com, &... - Page 5 CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
-
Page 6: Installation Steps
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND. Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase.
