INSTALLATION INSTRUCTIONS
WARNING: DO NOT EXCEED PRODUCT RATING OR TOW VEHICLE LAMP LOAD RATING, WHICHEVER IS LOWER
APPLICATIONS
Make
Model
Ford
Windstar

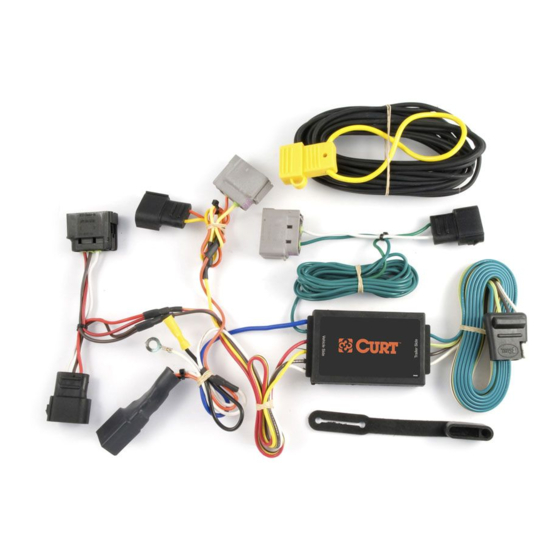

CUSTOM WIRING HARNESS
WIRING LOCATION GUIDE
SUVS, MINI & FULL-SIZED VANS ( S )
Representative vehicle shown below
S1 - Behind driver side taillight housing
S2 - Behind passenger side taillight housing
S1
NOTICE
All steps must be followed to ensure the wiring harness
will function properly. Once installed, test for proper function
by using a test light or connecting a properly wired trailer.
TOOLS NEEDED
Phillips screwdriver
Flat blade screwdriver
Panel trim removal tool
WARNING
The battery connection must be fuse-protected, 10-amp max.
Exceeding the product rating can cause loss of warranty,
overheating and potential fire. Do not exceed product rating
or tow vehicle lamp load rating, whichever is lower.
Signal Circuits - 2.1 amps per side
Tail / Running Circuits - 4.2 amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.
S2
PAGE 1 • 55525-INS-RB
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing 55525
Summary of Contents for Curt Manufacturing 55525
-
Page 1: Installation Instructions
Signal Circuits - 2.1 amps per side Tail / Running Circuits - 4.2 amps total Check vehicle owner's manual or contact the vehicle manufacturer for more information. PAGE 1 • 55525-INS-RB... - Page 2 Make sure the WARNING: Check for miscellaneous items that may connectors are fully inserted with locking tabs in place. be hidden behind or under any surface before drilling to avoid damage and / or personal injury. 55525-INS-RB • PAGE 2...
- Page 3 WARNING: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and / or personal injury. Step 15 Reinstall all items removed during install. Install the provided 4-flat dust cover to help prevent corrosion. PAGE 3 • 55525-INS-RB...
