Curt Manufacturing 18153 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.

Weight Carrying Capacity

Weight capacity

Parts List

Item Qty Description
1 2 Platform frame, half
2 1 Shank, 2"
3 2 Connecting plate
4 1 Folding shank assembly
5 1 Clip
6 1 Pin, 5/8"
7 1 Lock nut, M16
8 1 Hex bolt, M16 x 80mm
9 3 Lock nut, M12
10 3 Flat washer, M12
11 3 Hex bolt, M12 x 75mm
12 8 Lock nut, M10
13 8 Flat washer, M10
14 8 Carriage bolt, M10 x 20mm

Tools Required

Wrench, 17mm Wrench, 24mm
Wrench, 19mm Adjustable wrench

Torque Specifications

M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
M16 bolt 70 ft-lbs.
Use above torque setting unless otherwise noted
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634

WARNING

Never exceed the vehicle manufacturer's recommended towing capacity.
Do not exceed maximum weight capacity of 500 lbs. when using 2" receiver tube.
Distribute the weight evenly on platform when hauling a load.
Do not carry loads taller, wider or deeper than the cargo carrier. Do not carry flammable items
on carrier or allow exhaust fumes to blow directly on your cargo. This is a fire hazard.
Always use caution when in reverse (R) to help avoid personal injury.
Loads must be evenly distributed.
Never use as a step or platform - injury may result.
500 lbs.
Do not use to carry flammable items or allow exhaust
fumes to blow directly on items in the carrier – fire hazard.
Do not use to transport people.
Do not block brake lights or turn signals.

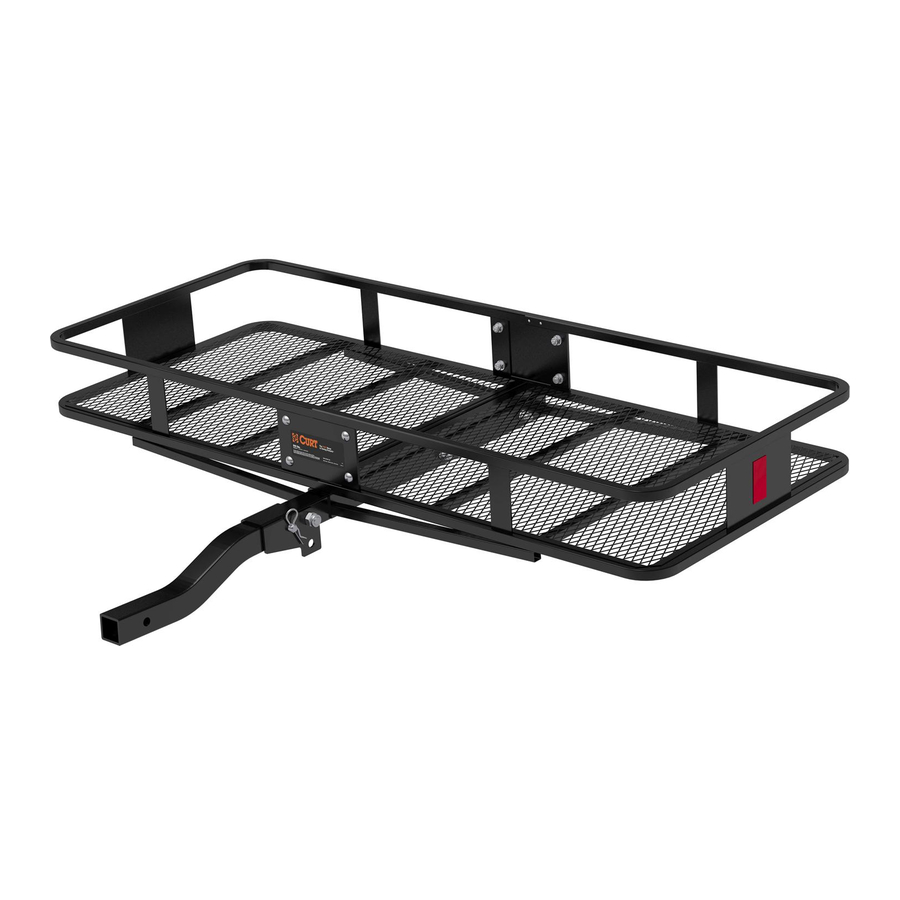

Product Photo

NOTICE

Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.

Product Registration and Warranty

CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• 18153-INS-RC • 04/16/2021 • ECN8300 • PAGE 1
