YEARS: 2016-CURRENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
10mm
11/16"
3"
7/16"
SOCKET
SOCKET
EXTENSION
TORQUE
DIE GRINDER
WRENCH
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
SCAN FOR
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
MORE INFO
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
11435

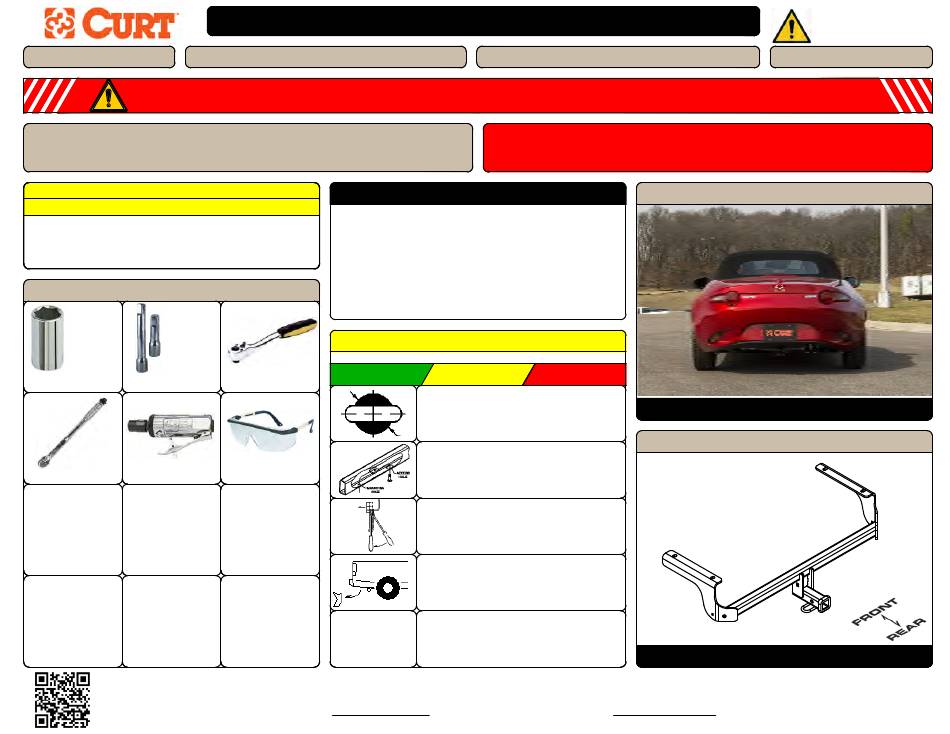

INSTALLATION INSTRUCTIONS
MAZDA
TRAILER WEIGHT:
2,000
LBS.
TONGUE WEIGHT:
200
LBS.
45
MIN.
INSTALLATION TIPS:
90 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
LEVEL OF DIFFICULTY:
EASY
RATCHET
SAFETY
GLASSES
PART REMOVAL
MODEL: MX-5 MIATA
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
ENLARGE ACCESS HOLE
FISHWIRE HARDWARE
LOWER EXHAUST
REPLACE FASCIA SUPPORT
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

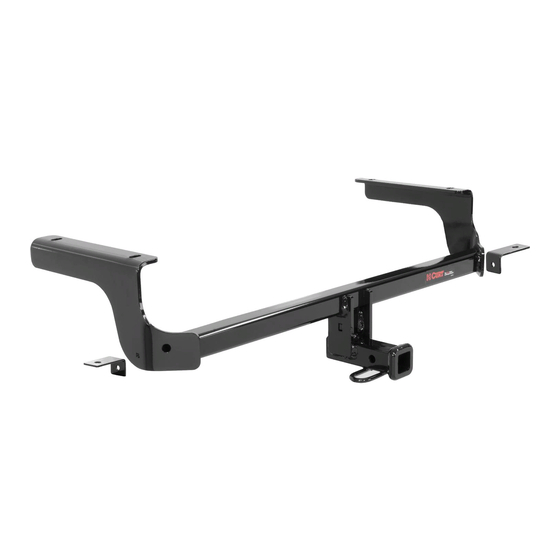

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
CONVERTIBLE
3/24/2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing 11435
Summary of Contents for Curt Manufacturing 11435
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC.
-
Page 2: Installation Walkthrough
1. Lower exhaust by detaching (5) exhaust hangers. (4) hangers are ITEM PART NUMBER DESCRIPTION located on the muffler and (1) hanger is located forward of the muffler. 11435-FT FASCIA TAB 1_4 - 20 x 3_4 CARRIAGE CARRIAGE BOLT 1_4 - 20... - Page 3 Ø 1.00" 6. Attach 11435-FT brackets to hitch side plates using 1/4" carriage bolts 4. Fishwire CM-SP2 spacers and 7/16" carriage bolts through enlarged and 1/4" nylock nuts, as shown. Attach driver and passenger side holes and out forward mounting holes. Reverse fishwire CM-SP2 vehicle fascia tabs to 11435-FT brackets using the existing M6 fascia spacers and 7/16"...
- Page 4 INSTALLATION WALKTHROUGH: 7. Torque 7/16" hardware to 60 lb-ft, 1/4" hardware to 122 in-lb and M6 hardware to 7 lb-ft 8. Raise exhaust back into position and reattach all exhaust hangers. For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com...
- Page 6 CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
-
Page 7: Installation Steps
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND. CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase.
