INSTALLATION MANUAL
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Installed Attachment Tabs
Height 17-3/4"
Width 24"
Parts List
Item Qty Description
1 1 Tow bar base plate
2 2 Tow bar mounting tab
3 2 Safety cable, 3,500 lbs.
4 4 Square hole spacer,
1/4" x 1" x 2"
5 4 Flange nut, 3/8"-16, grade 8
6 4 Carriage bolt,
3/8"-16 x 1-1/2", grade 8
7 4 Quick link, 1/4"
8 2 Socket plug
Tools Required
Torque wrench Drill
Socket, 9/16" Drill bit, 13/32"
Socket, 7mm Tape measure
Socket, 16mm Clamp
Fishwire, 3/8" --
(includes four)
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR).

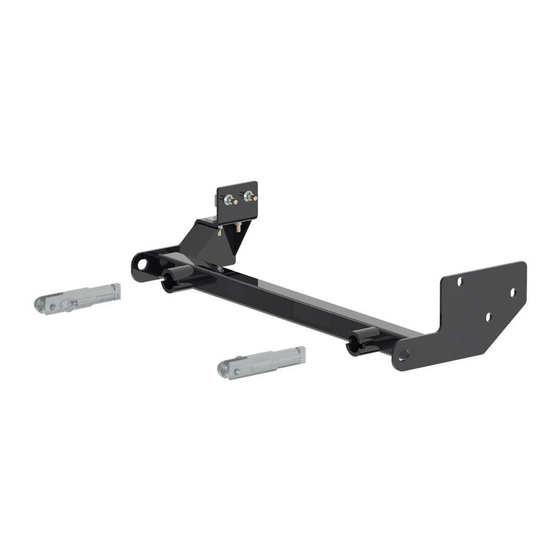

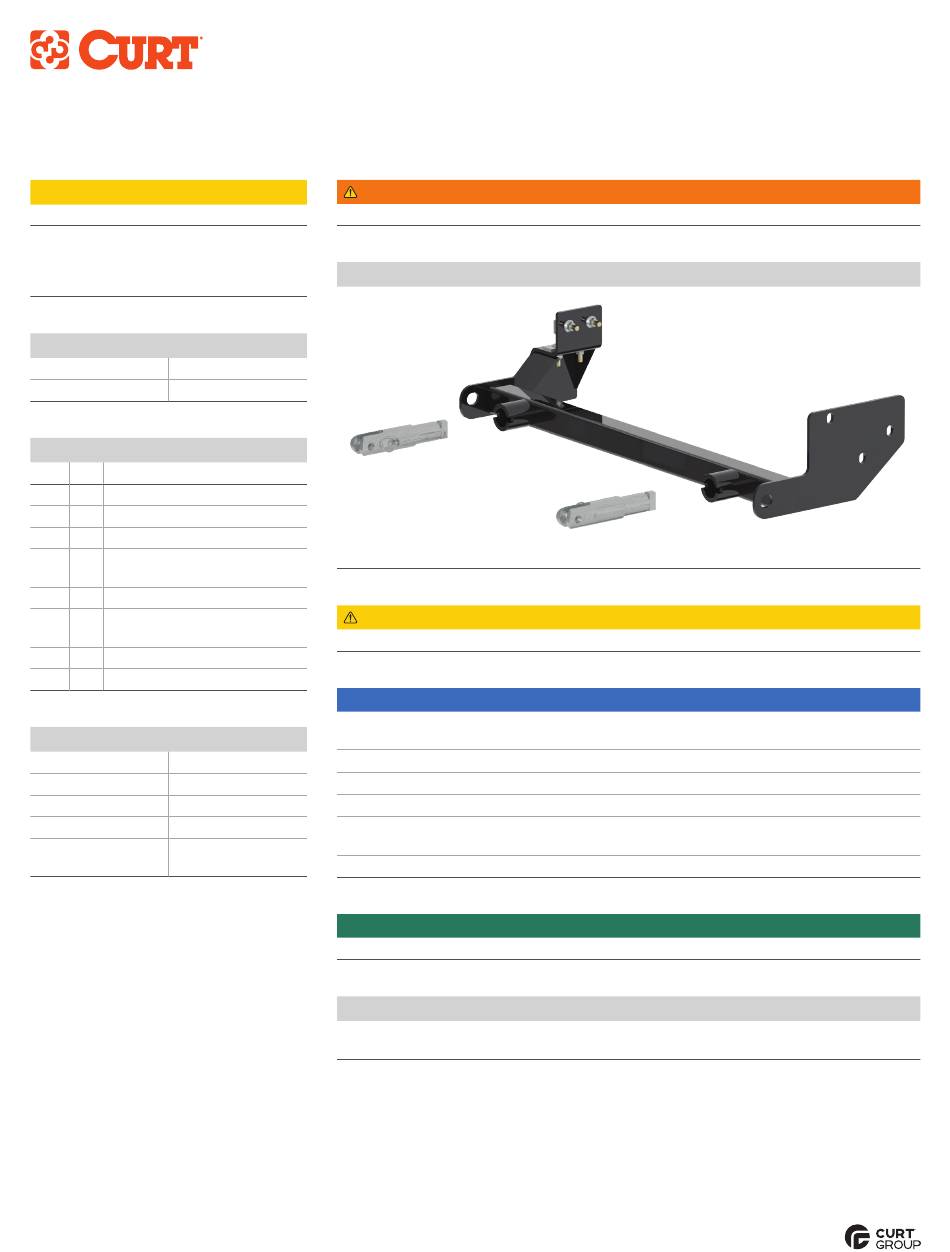

Product Photo
Not pictured: Safety cables, quick links and socket plugs
CAUTION
Take care when cutting any plastic or metal as injury may occur if done improperly.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires some drilling and trimming.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
If equipped, we recommend removing the base plate attachment tabs when not in use.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• 70112-INS-RB • 04/14/2020 • ECN6926 • PAGE 1
