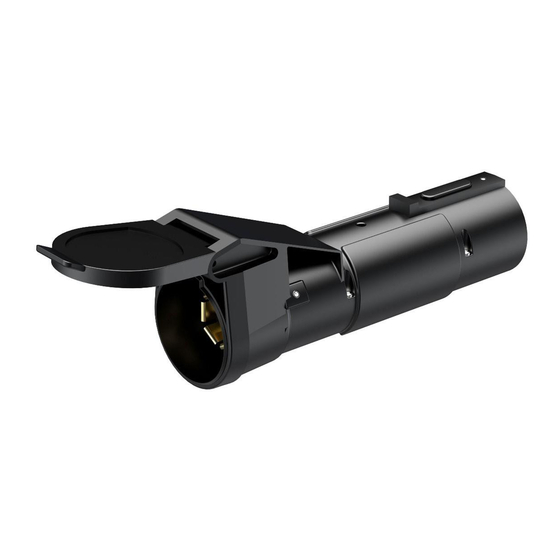

ECHO
BRAKE CONTROLLER QUICK SETUP
®
1. Download the mobile application
(scan respective QR code below)
2. Enable bluetooth on your mobile device
3. Attach safety strap and insert Echo into
vehicle 7-way socket (ensure LED is lit)
4. Pair app with your mobile device
5. Plug trailer's 7-way into the Echo
6. Configure profile settings
7. Test drive and adjustment
QUICK REFERENCE GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing ECHO
Summary of Contents for Curt Manufacturing ECHO
- Page 1 1. Download the mobile application (scan respective QR code below) 2. Enable bluetooth on your mobile device 3. Attach safety strap and insert Echo into vehicle 7-way socket (ensure LED is lit) 4. Pair app with your mobile device 5. Plug trailer's 7-way into the Echo 6.
- Page 2 ACTIVE PROFILE SCREEN SETTINGS 1. Manual Brake Activation: Activate manual braking, press and hold the orange button. 2. Brake Output Indicator: The blue ring indicates current brake output level. 3. Max Output: The maximum level of the brake controller (adjustable in increments of five). 4.
- Page 3 LED STATUS INDICATOR A single LED on top of the Echo shows status of the brake controller. ® Device not paired, Device paired, Calibrating No power no trailer connected no trailer connected Echo (no light on) (flashing blue) (solid blue)
- Page 4 If any problems occur during setup or operation, refer to the 'Troubleshooting Guide' on the last page of the installation manual. BLUETOOTH PIN Use this PIN number when pairing the Echo brake controller with your device. ® WARNING Avoid distracted driving.
