YEARS: 2017
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
18MM
RATCHET
SOCKET
6"
ROTARY
SOCKET
TOOL
EXTENSION
TAPE
PLASTIC PANEL
MEASURE
REMOVAL TOOLS
SAFETY
GLASSES
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
SCAN FOR
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
MORE INFO
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
13277

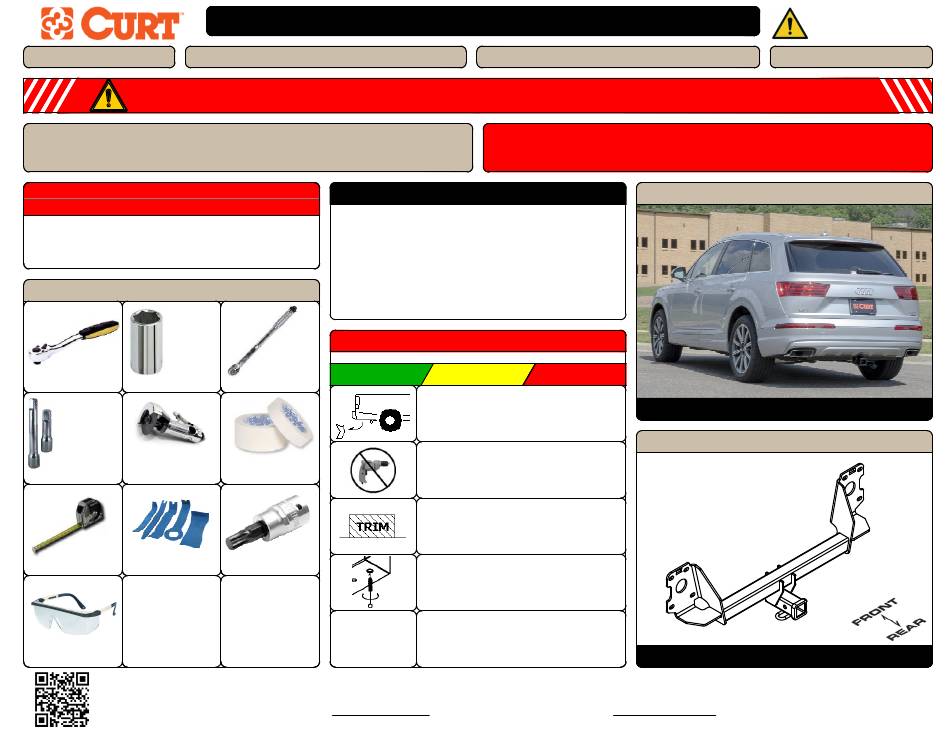

INSTALLATION INSTRUCTIONS
AUDI
TRAILER WEIGHT:
7,000
TONGUE WEIGHT:
700
60
MIN.
MIN.
INSTALLATION TIPS:
120
MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
LEVEL OF DIFFICULTY:
TORQUE
EASY
WRENCH
PART REMOVAL
MASKING
TAPE
TORXBIT
T25
SOCKET
MODEL: Q7
WARNING:
LBS.
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
LBS.
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
CHALLENGING
MODERATE
CHALLENGING
TEMPORARILY REMOVE
BUMPER FASCIA
NO DRILLING REQUIRED
BUMPER FASCIA
TRIMMING REQUIRED
WELDNUT CLEANING
MAY BE REQUIRED
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

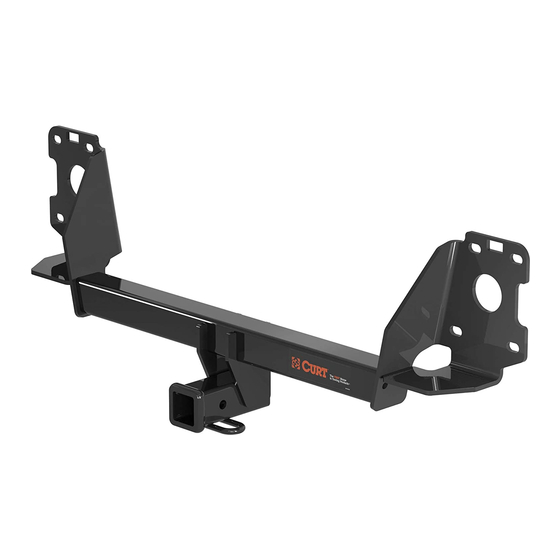

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SUV
10/28/2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing 13277
Summary of Contents for Curt Manufacturing 13277
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC.
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. Remove (4) screws along each wheel well with a T25 Torx bit screw driver. Pull wheel liner back to expose an additional (1) screw for removal. END PANEL 2. Remove (4) screws from bottom of each wheel well liner and (4) screws from middle underside area of fascia with a T25 Torx bit. - Page 3 INSTALLATION WALKTHROUGH: 3. Carefully remove body trim piece at upper wheel well and 5. Remove (4) bolts on each side of bumper beam using a remove (2) screws exposed using a T25 Torx bit. Plastic 18mm socket and remove bumper beam. Place hitch on body panel tools may be used for ease of removal.
- Page 4 INSTALLATION WALKTHROUGH: 7. Unclip kick sensor wire from inside bumper fascia and move away from trim area. Measure trim area on fascia to dimensions shown, mark area with masking tape, and trim section. 3.50" 1.75" 7.25" CENTER LINE 8. Reinstall fascia removed in STEP 2 and re-attach kick sensor wire behind receiver tube.
-
Page 6: Installation Steps
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
