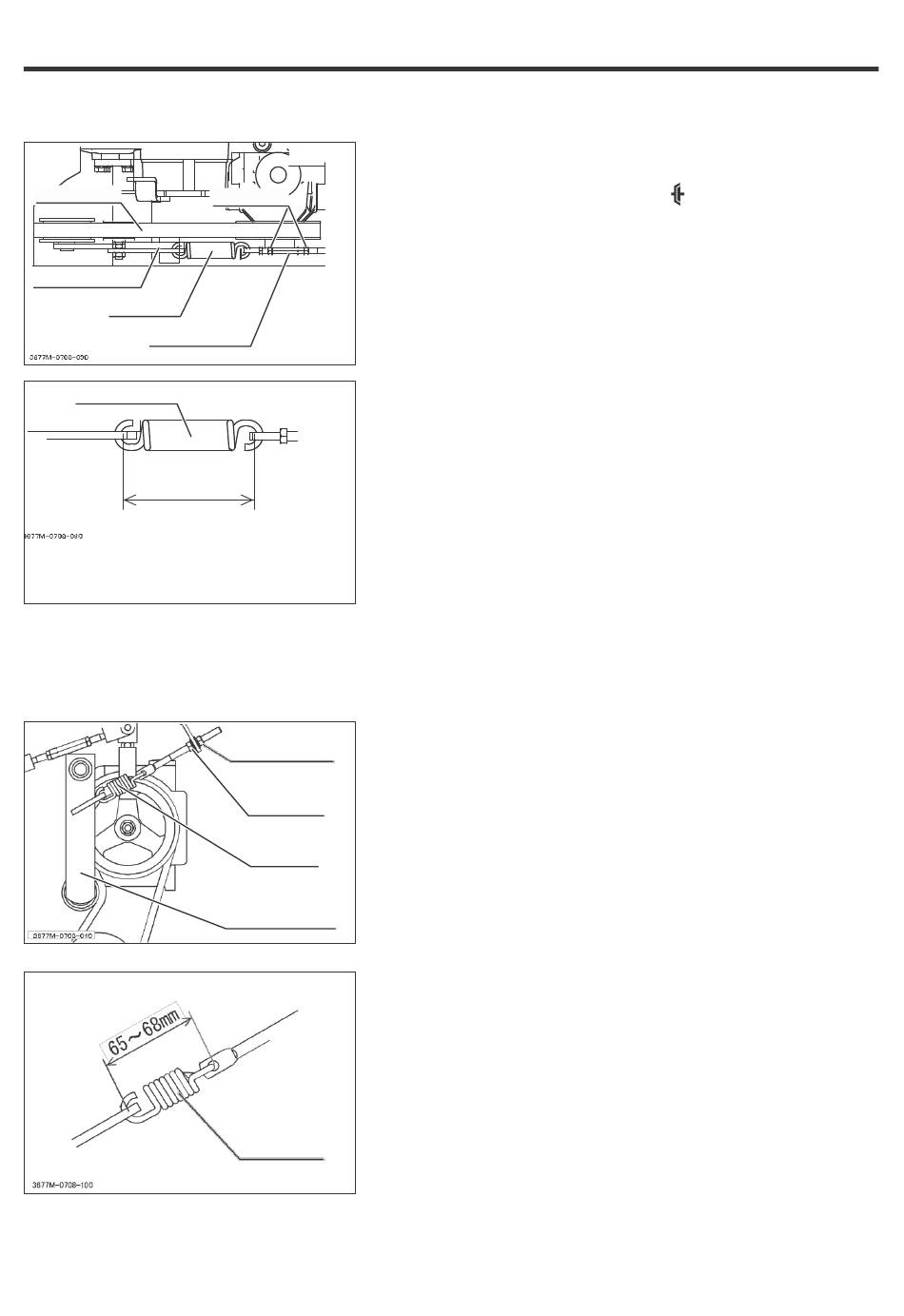

7.8.3 V-belt for Traveling

V-belt for traveling
Tension arm
Spring
Turnbuckle
Spring
114~118mm
7.8.4 hydraulic pressure V-belt
Maintenance
Inspection
Lock nut
Slippage of V-belt
Replacement
Inspection
Adjustment nut
Lock nut
Spring
Slippage of V-belt
Tension arm
Replacement
Spring
1. Push the clutch lever to the [
2. Remove the safety cover. (See page 42)
3. Visually check the traveling V-belt for damage.
If it is damaged, replace.
After loosening the lock nut, and adjust the spring
hook inner dimension to 114 to 118 mm by turning
the turnbuckle.
Contact your Canycom distributor.
1. Open the engine cover, and lock it with the stay-bar.
(See page 15)
2. Visually check the hydraulic pressure V-belt for
damage.
If it is damaged, replace.
After loosening the lock nut, and adjust the spring
hook inner dimension to 65 to 68 mm by turning the
adjustment nut.
Contact your Canycom distributor.
- 45 -
7
(ON)] position.
