CanyCom S100 Operator's Manual page 33

Swivel Dump
Operation

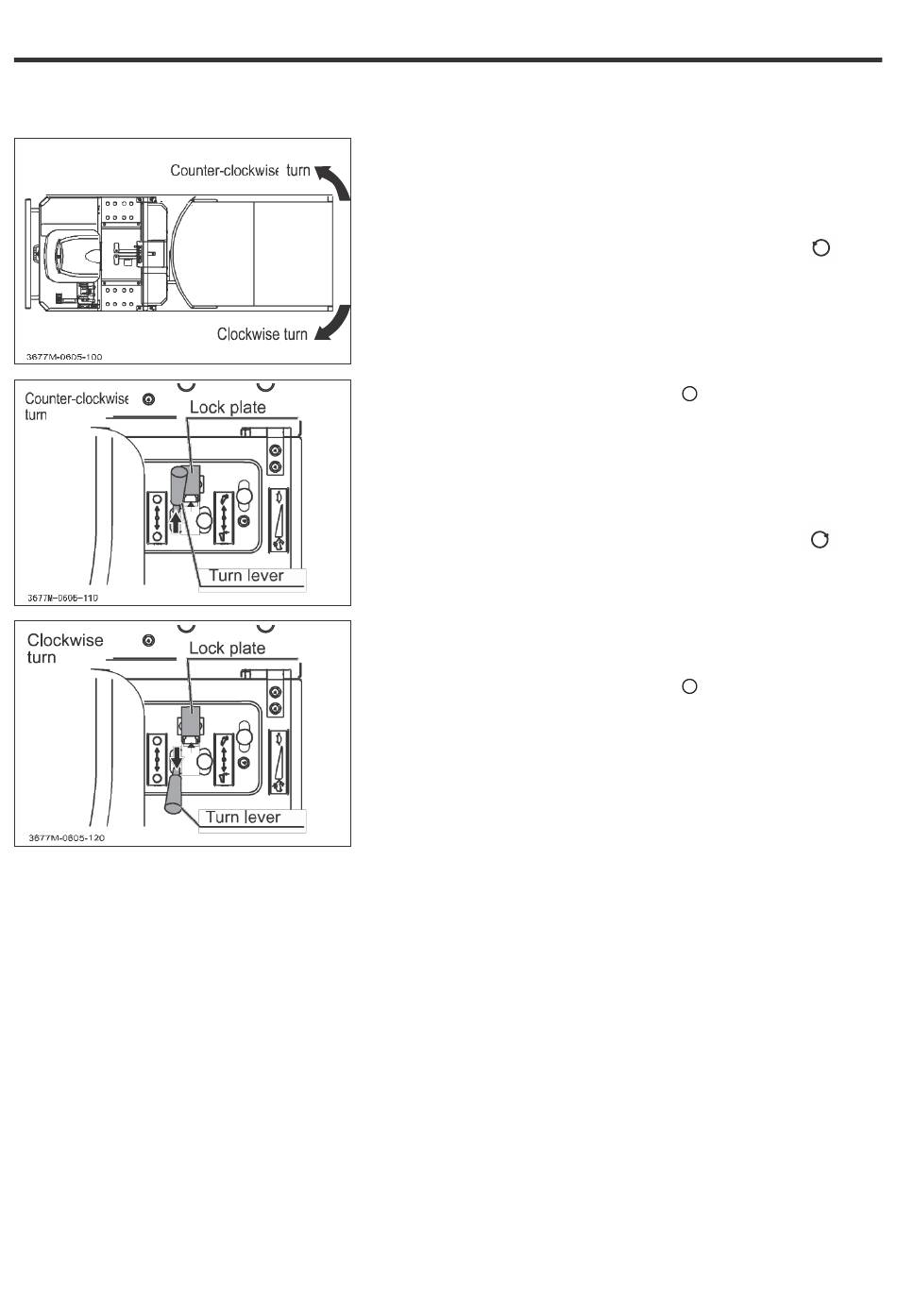

When turning the load deck body counter-clockwise
1. Unlock the lock plate.
2. Tilt the turn lever in the direction of forward [
(counter-clockwise turn)].
Maximum angle of rotation: 90 °
3. When the load deck body is turn to the maximum
angle of rotation, a "hiss" sound is heard. Quickly
return the turn lever to the [
When turning the load deck clockwise
1. Unlock the lock plate.
2. Tilt the turn lever in the direction of reverse [
(clockwise turn)].
Maximum angle of rotation: 90 °
3. When the load deck body is turn to the maximum
angle of rotation, a "hiss" sound is heard. Quickly
return the turn lever to the [
- 27 -
6
(HOLD)] position.
(HOLD)] position.
