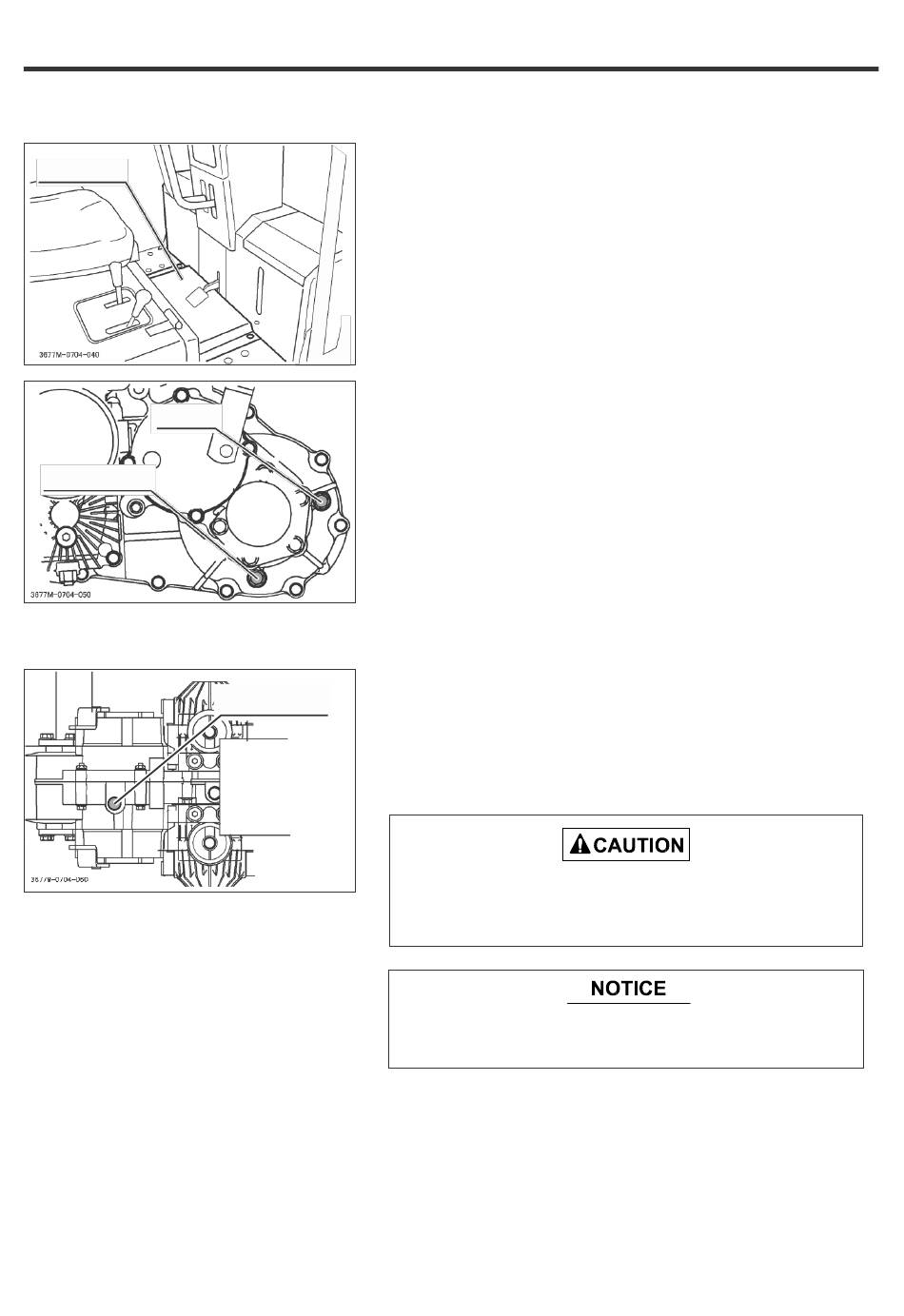

7.4.2 Transmission Fluid

Safety cover
Fluid level port
Drain plug
Maintenance
Inspection / Adding
Replacement
Fluid filler plug
1. Remove the safety cover.
2. Remove the fluid level port bolt, and check that the
fluid level is at the fluid level port.
3. Visually check the transmission fluid level and the
condition of dirt in the fluid. If the level is low (fluid
level does not reach the fluid level port), add trans-
mission fluid. If the fluid is extremely dirty, change
the fluid.
4. Remove the fluid filler plug, and add the specified
fluid.
5. Check the fluid level, and install the fluid filler plug.
Fluid to use: See page 32.
6. Install the safety cover.
1. Prepare a suitable container to collect drain fluid.
2. Remove the drain plug, and drain fluid from crank-
case.
Avoid contact with high temperature oil to
avoid burns.
Dispose of the drained oil properly.
3. Replace the drain plug firmly.
4. Remove the fluid filler plug, and add proper amount
of designated fluid.
5. Replace the fluid filler plug firmly.
