Jimmy Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
locking
x18
nut x18
D
E
bolt
nut
x16
x20

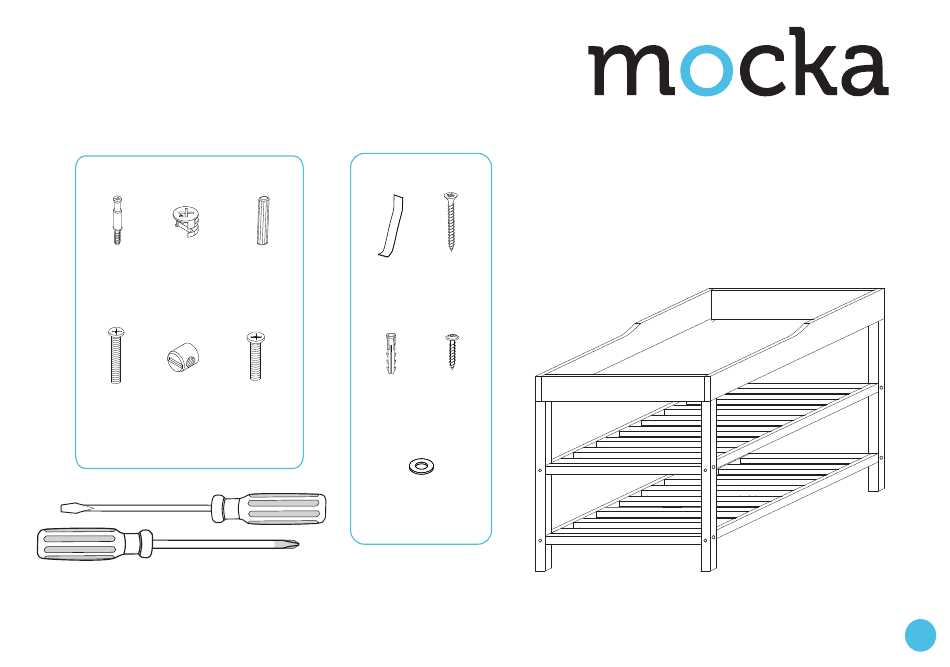

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
W
C
dowel
safety
x10
strap x1
F
X
wall
bolt
anchor
x4
x1
Z
washer
x1
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
wall
screw x1
Y
r/washer
screw
x1
1
