Mocka Jimmy Five Shelf Assembly Instructions

Jimmy Five Shelf

Thank you for your purchase.

Please follow the instructions below for correct assembly.

long screw

allen key

x20

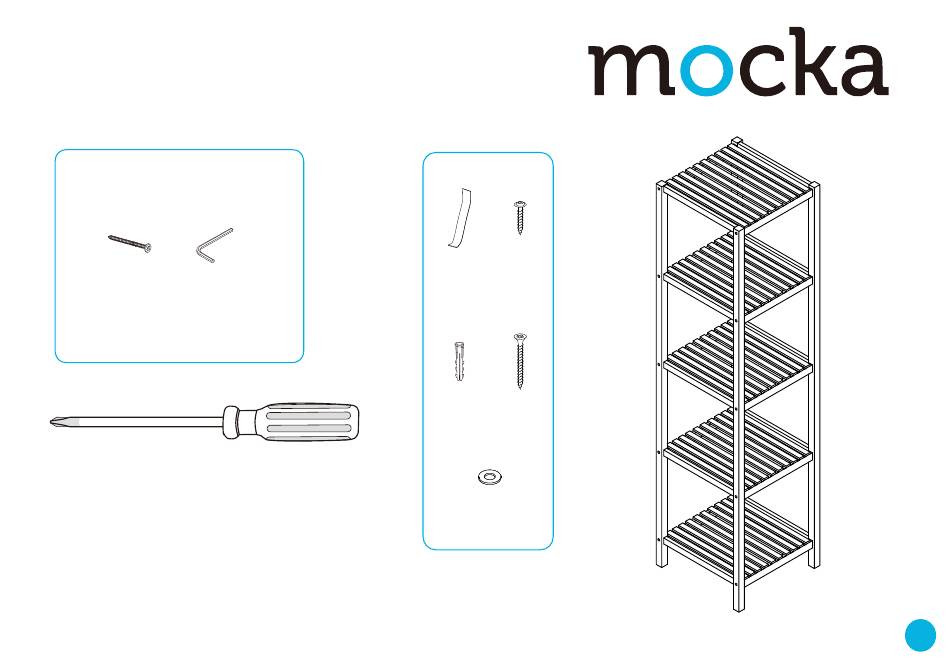

Hardware Supplied

Phillips screwdrivers required. For quicker assembly,we

recommend the use of a power drill on a low-speed setting.

WARNING:

Any furniture that is not anchored to a wall has the

potential to tip over in certain circumstances, i.e. if a child attempts to

climb up on the furniture or in the event of an earthquake. Accordingly,

we recommend that all furniture is anchored to a wall. We supply a

free safety wall anchor with all furniture sold and we recommend

these are used to prevent your product tipping. The fixing device

provided should fit most wall types, but please note that different wall

materials may require different fixing devices from those supplied.

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

safety

screw

strap

wall

anchor

screw

washer

Table of Contents

Do you have a question about the Jimmy Five Shelf and is the answer not in the manual?

Page 1 The fixing device provided should fit most wall types, but please note that different wall materials may require different fixing devices from those supplied. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 2 Attach panel [2] to panels [1] and [3] using 10x screws (A). Attach panel [2] to panels [1] and [3] using 10x screws (A). Tighten with an Allen key (B). Tighten with an Allen key (B). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
Page 3 1x screw (D) and 1 x washer (G). Tighten with a screwdriver. end of the safety strap (C) to the wall using 1x screw (F), 1x wall plug (E) and 1 x washer (G). Tighten with a screwdriver. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
