Courtyard Creations KUS128G Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

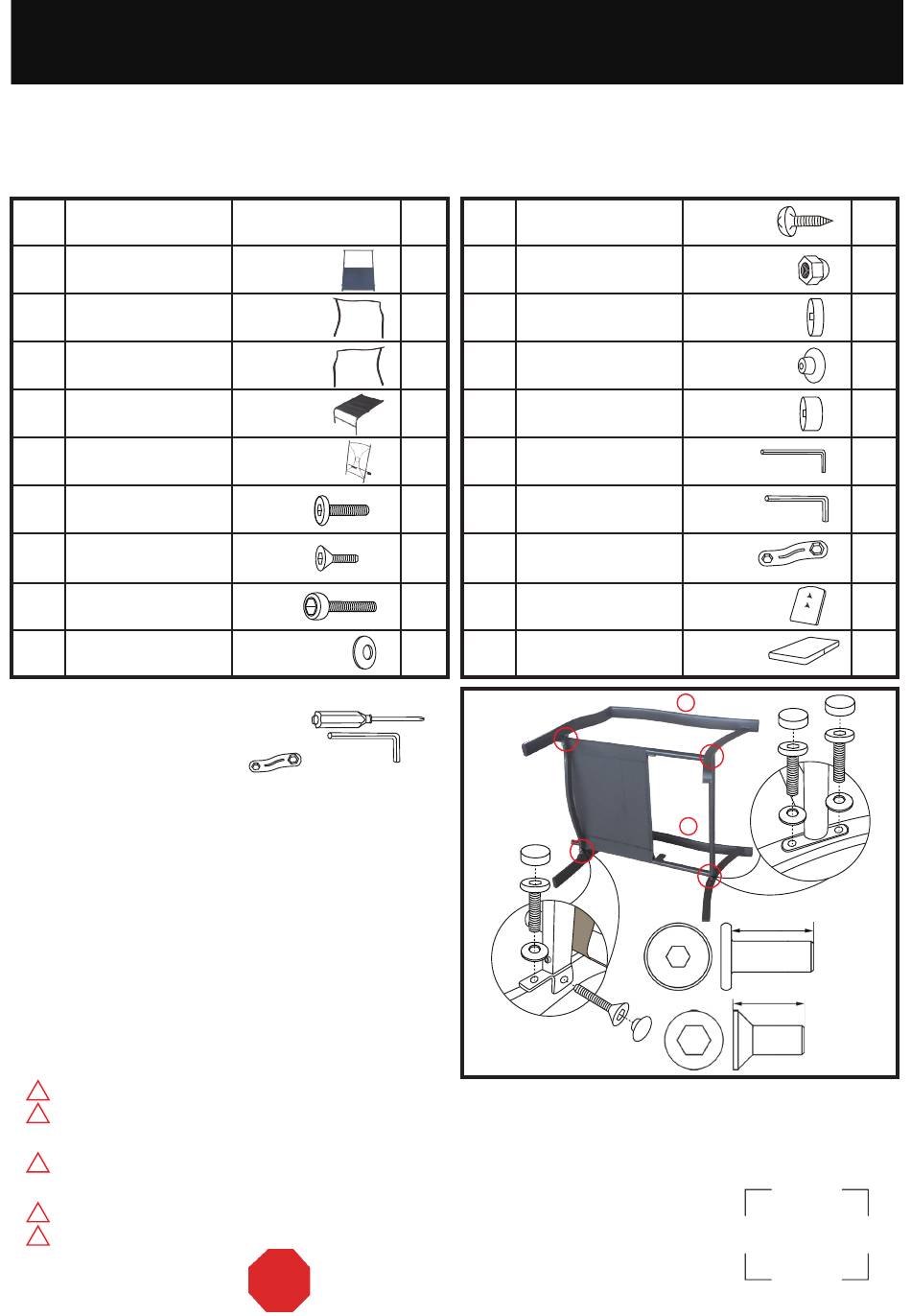

PARTS LIST

PART
MATERIAL CODE
NO.
1
KUS128G-CS02-5
2
KUS128G-CS04-3
3
KUS128G-CS04-4
4
KUS128G-CS02-4
5
KUS128G-CS03-1
6
17C33A0706001Y4
7
17C02A0755131Y4
8
17C01A0714003Y4
9
17FA05040301-Y4
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #15, #16)
- Nut Wrench (See Part #17)
Attention:
Make sure that all bolts needed for each step matches
the corresponding figure to ensure proper assembly.

Step 1:

Place the right leg (#3) onto a non-abrasive surface,
such as a carpet, with its bracket facing upwards. At the
front of the lounge, insert the rear seat (#1) into the
right leg (#3) and the left leg (#2) by using bolt (#6 and
#7) and washers (#9). Keep the bolts loose.
See Figure 1.
Note:
The labels marked "L" and "R" on the legs (#2 and #3)
should coincide with Figure 1 to ensure proper
assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until lounge is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
!
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
KUS128G
PART Q'TY
REAR SEAT
LEFT LEG
RIGHT LEG
FRONT SEAT
BACK ASSEMBLY
BOLT M6*16
BOLT M6*14
BOLT M6*40
WASHER d6.5*D13*1.0
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
10
17C17A0403001Y4
1 11
18000C23001
1 12
18000337004
1 13
18000337006
1 14
18000337002
1 15
17KAA0101----Y4
6 16
17KAA0201----Y4
2 17
17KAB1101----Y4
2 18
61K128GX00001BA
10 19
61K128GY00001BA
FIGURE 1
1
12
6
9
SCREW ST4.2*12
PLASTIC NUT M6*P1.0
BOLT CAP
BOLT CAP M6
BOLT CAP M6
HEX.KEY WRENCH 4MM
HEX.KEY WRENCH 6MM
NUT WRENCH 10&13MM
BACK CUSHION
SEAT CUSHION
2 L
12
3
R
16
#6 BOLT M6*16
14
7
13
#7 BOLT M6*14
COURTYARD CREATIONS INC.
2
2
6
2
2
1
1
1
1
1
12
6
6
9
9
