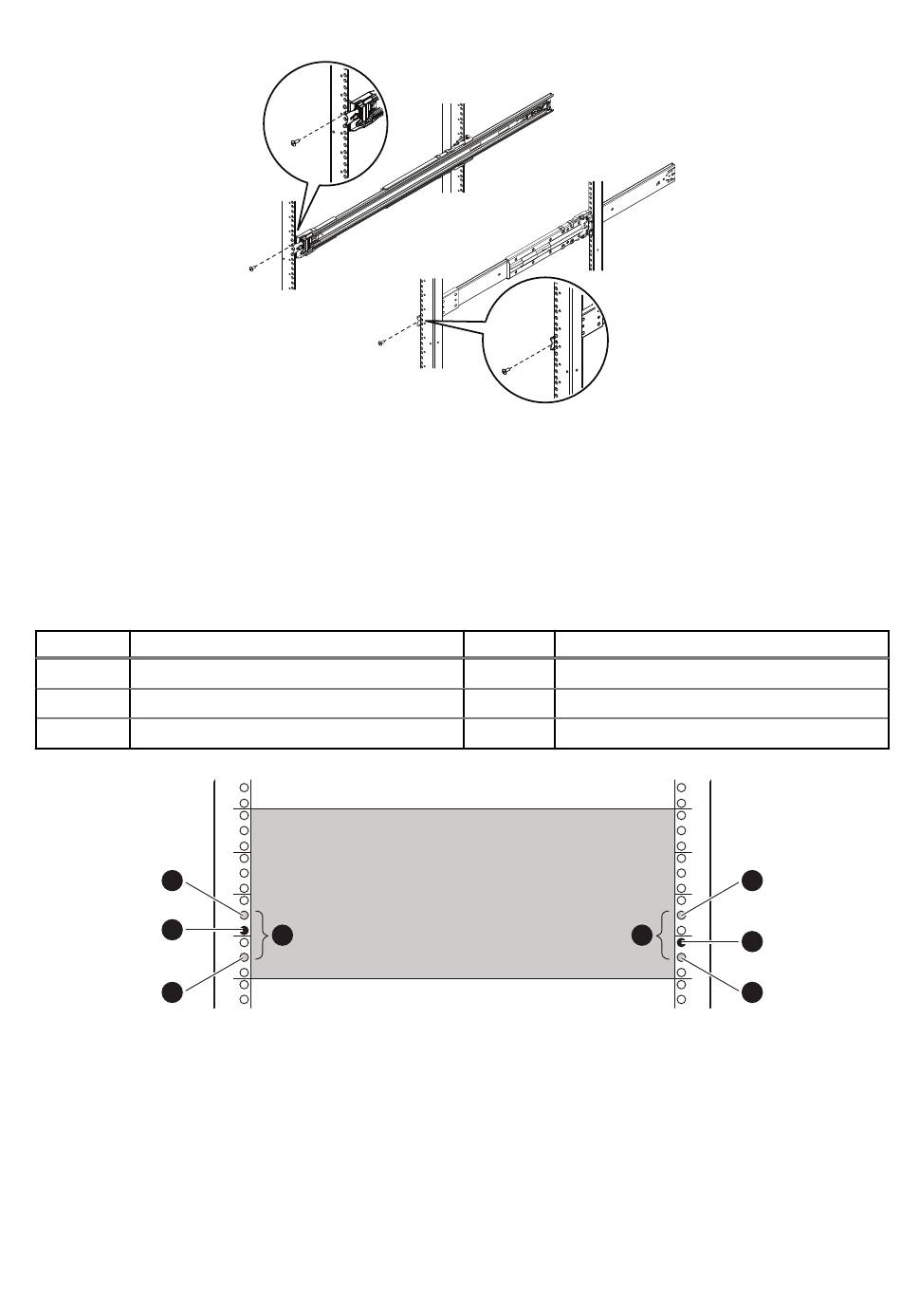

Figure 46. Securing a rail with a single screw
● If you are installing the rails in a rack that has threaded holes, insert an M4 screw into the smaller of the two center
screw holes at both the front and the rear of the rail. The screw is smaller and will pass through the threaded hole in the
NEMA racks.
● If you are installing the rails in a rack that does not have threaded holes, insert an M5 screw that comes with the chassis
into the larger of the two center screw holes in the rail at the front and rear of the rack.
The following table lists the parts that are referenced in
Table 6. Parts list
Image # Description
1 Node rail location in 4U space
2 Node rail square alignment pins
4 M5 or M4 securing screws
2
4
2
Figure 47. Location of securing screws and alignment pins
Installing the nutbars
About this task
For each shelf, reference the following table, figure, and steps to install the nutbars.
The following table lists the parts that are referenced in the figure below.
46 Install the Disk Shelves in the Rack

Location of securing screws and alignment pins

4U space
1
Front view
Qty Part number
n/a n/a
n/a Part of PN 100-569-209
4 PN 106-002-452 or 036-028-018
1
CL5376
on page 46.
2
4
2
CL5552
