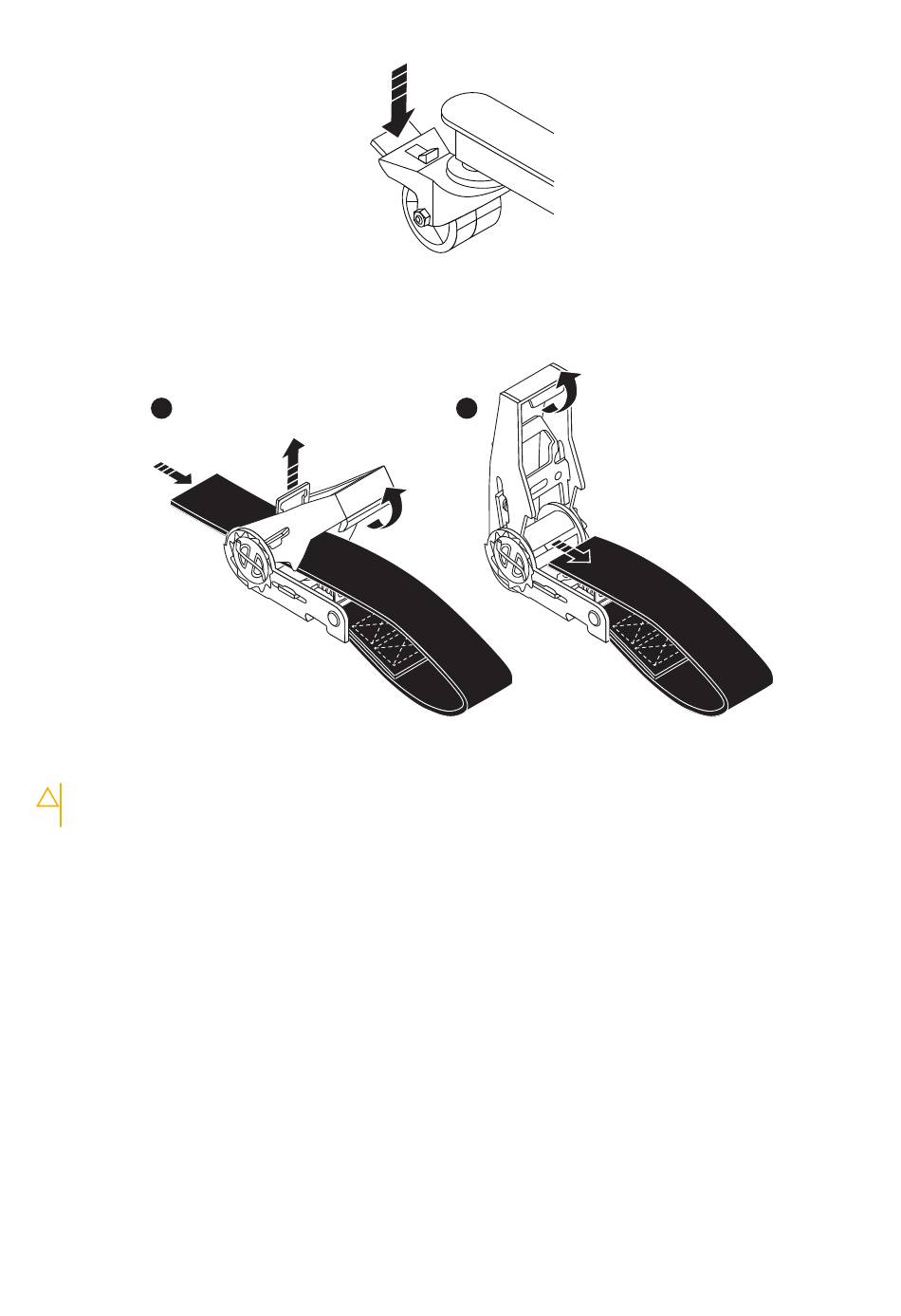

Figure 21. Locking the casters
6. Remove the securing strap by pulling up on the retaining key and pull the ratchet handle upwards as needed, as shown in the
following figure.
1
Figure 22. Removing the straps
7. Carefully push the shelf off the lift arms/tray and into the cabinet.
CAUTION:
Make sure to leave the lift under the chassis until the shelf is safely balanced and secured within
the cabinet.
8. If the shelf was depopulated before installation, repopulate the shelf as follows:
a. Reinstall the disk drives in the exact location from which they were removed.
b. Reinstall the Fan modules.
c. Slide the shelf into the cabinet.
d. From the rear of the cabinet, reinstall the power supplies and the link control cards (LCCs) into the shelf.
Inserting and securing the top cover and shelf
About this task
The captive shoulder screws attach the shelf to the cabinet.
Refer to the following table for installation in third-party racks:
32
Install the Disk Shelves in the Rack
CL5423
2
CL5430
