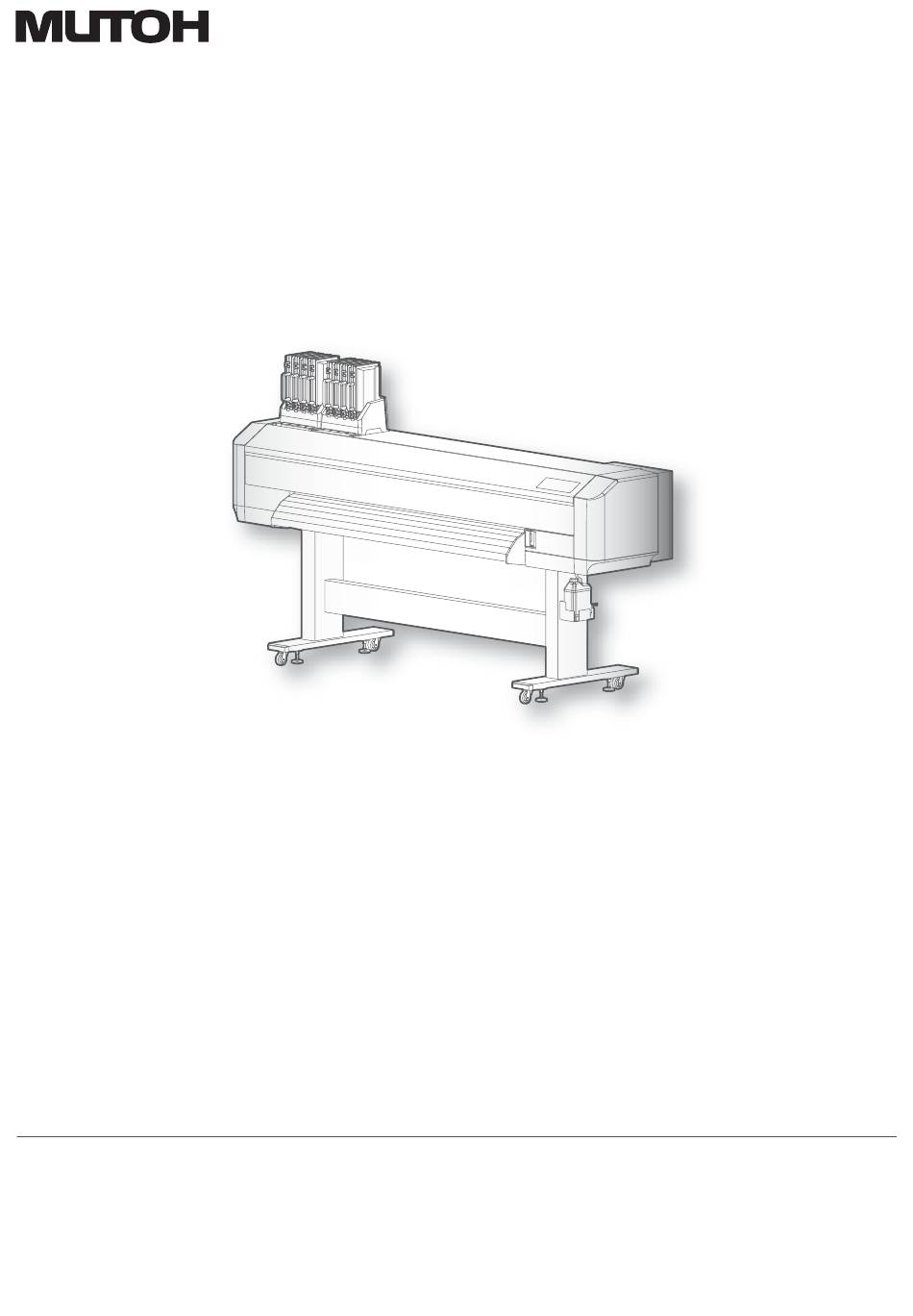

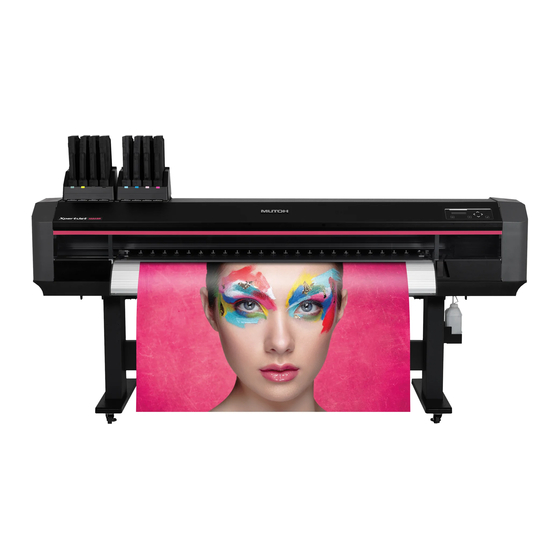

XPJ-1641SR / XPJ-1682SR
Startup Guide
Unpacking and Initial Setup
• Unauthorized copying or duplication of the whole or part of the contents of this Guide is prohibited.
• Every care has been taken in writing the contents of this Guide, but please contact MUTOH or the dealer you purchased the
product from if you find any unclear, erroneous or otherwise unsatisfactory content in the Guide.
• Please be aware that MUTOH will not be liable in any way for failures or accidents that result from handling or operating the
printer according to any procedures other than those set forth in this Guide.
• Company names and product names that appear in this Guide are registered trademarks of the respective companies.
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting Power and Network . . . . . . . . . . . . . . . 13
Printer Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Test printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing MUTOH Status Monitor . . . . . . . . . . . . . . 38
Viewing Operation Manual . . . . . . . . . . . . . . . . . . . . 39
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
