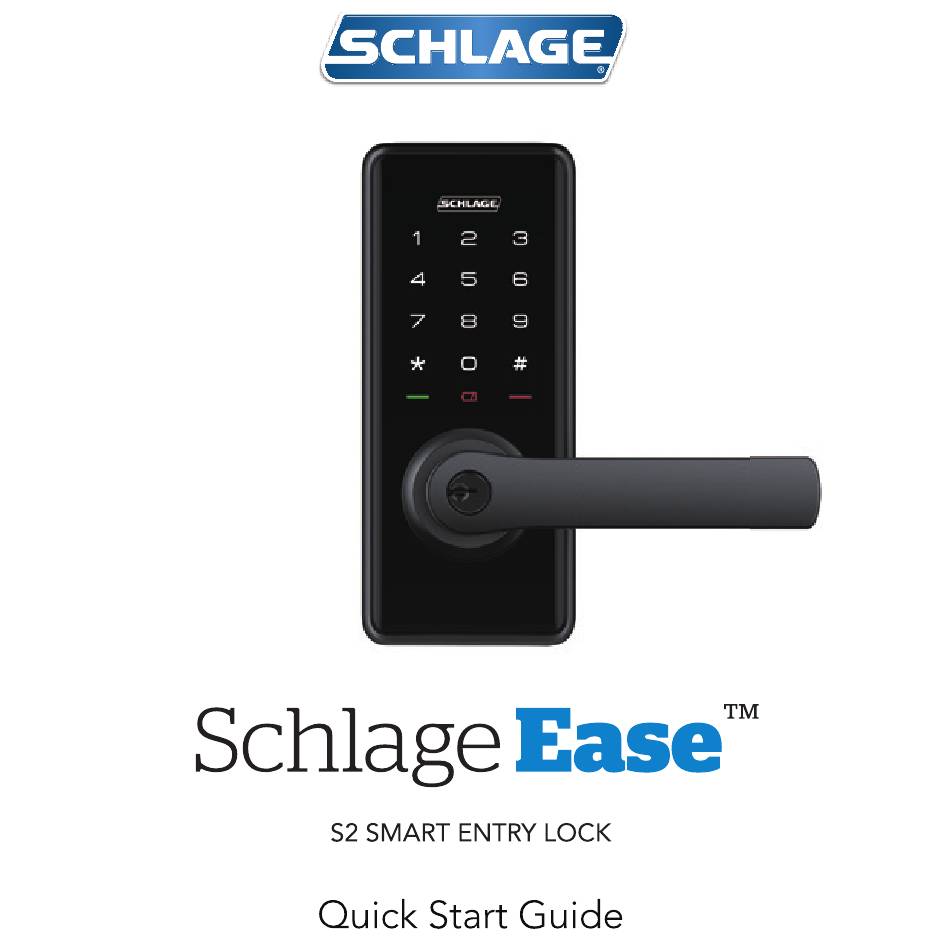

- Page 1 CHLAG Schlage EaseTM S2 SMART ENTRY LOCK Quick Start Guide...
- Page 2 CHLAG Parts Allen key Battery cover Mounting Exterior assembly screws (3) Cross bolt Cover screws (3) Mountingplate Backupkey For more information visit schlage.com.au/ease or schlage.co.nz/ease...
- Page 3 Exterior assembly Preparing for Installation 1. Measure dimension of the hole shown. Status Indicators Keypad Green: Status Unlocked or setting success indicator Red: (Green/ Locked or setting failed Red) edge (2-1/8") Reboot button Cylinder ' Micro USB port - Interior assembly 2.
- Page 4 The latch must be in retracted (unlocked) Install strike into door jamb. position when you are changing backset. Jamb Install exterior assembly flush to the door. This hole is for Installation the optiona cross bolt 1. Instal latch on the door, ensuring the ang ed provided for side of the latch is facing the door jamb/frame.
- Page 5 4. Positon the inside mounting plate by first 7. Install interior assembly on inside mounting routing the cable and connector through plate. Secure using screws through the the mounting plate's cable hole. Secure interior assembly onto the mounting plate. 6. Attach cable assembly to the interior assembly PCB by lining up notches on top of cable 8.
- Page 6 9. Instal cy inder, ensuring the tip 10. Install exterior lever. 11. Install interior lever. Warnings Do not install batteries until the lock is completely installed on the door. Failure to follow these instructions could result in damage to the product and void the factory warranty. The accuracyOf the door preparation is critical for the functioning and security Of this product.
- Page 7 Definitions Fake PIN code: Reset button: After reset operation, the lock will be restored to Random numbers that are added before after the user PIN. This prevents the user PIN factory default settings, al user credentials will from being exposed. be deleted.
- Page 8 Lock operation Enter Enter Enter Change Master PIN code master PIN code master PIN code Press Master Wait Success Wait reen liqhtsand2bee Ii h hts a Enter Enter Repeat ** Master PIN code master code user PIN code Press User Wait Wait Success...
- Page 9 Setting PIN codes Normal mode l. Master PIN Code (4—10 digit): Default Normal mode master PIN code is "12345678", please 1. Enter master modify it after installation. or user PIN code If you forget your master PIN code, you into the keypad, can reset your Ockback to factory settings then rotate...
- Page 10 Passage mode Unlock with fake PIN code 1. Rotate the lever directly to open the door. User Passage mode User Fake User can prevent PIN code exposure from strangers by entering random digits before or after PIN code. Emergency Power 2.
- Page 11 Schlage Wi-Fi Bridge (ABI 00) mobile access with Schlage Abode Empower your Schlage Ease'* lock with Wi Fi capability. The Schlage Wi-Fi Bridge (ABIOO) For an enhanced experience and pairs to your Schlage Ease" lock, to provide functionality, try using the Schlage Ease'* you with a real-time connection through your with the Schlage Abode mobile application.
- Page 12 CHLAG For more information visit allegion.com.au/ease or allegion.co.nz/ease New Zealand South East Asia Australia 0800 477 869 +65 6488 2562 1800 info.au@allegion.com nzinfo@alegion.com sea.info@allegion.com ALLEGION www.alleglon.com.au wwvv.alleg.on.co.nz www.alleyon.com...
