Before Using Product features Two way solution Available to use secret code as well as card key. Random security coding function When you enter your home with friends or other people, you don't want to show secret code to them. In this case, you may press any number randomly without limitation and then enter your secret code at final.
Before Using Before using Product features Safety precautions Contents Product composition and components Name and function of each part - Front ass'y Name and function of each part - Back ass'y How to replace battery How to apply external power in the emergency How to use touch-pad and random security How to change mode (Normal mode >...

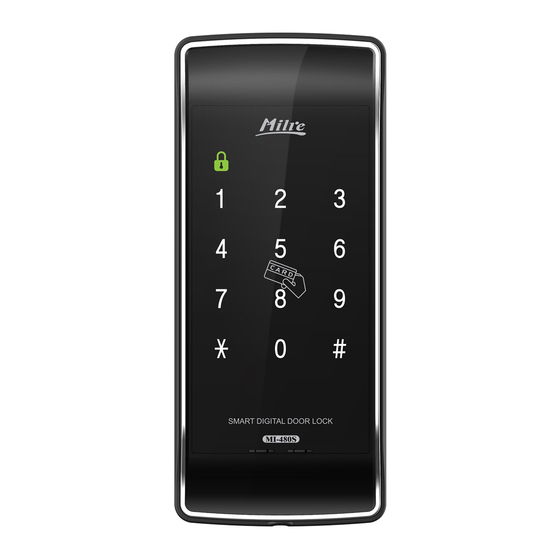

Before Using Name and function of each part - Front ass'y Lock/Unlock lamp Indicate lock/unlock status Battery replacement indicator When the battery is low, red lamp is flickering. Please change batteries to new one. Card key touch plate Touch the registered card key to open the door.
Before Using Name and function of each part - Back ass'y Battery cover Push up to open the battery cover Battery 4 pcs (1.5V, "AA" size, LR6 Alkaline) Double lockin switch Switch to set double locking mode. Deadbolt Trigger [R/C] button [Open/Close] button - Setting for safety mode It is easy to open or close the door...
Before Using How to replace battery If battery lamp in is flickering with sound, Replace all 4 batteries to new one. (1.5V, "AA" size, LR6 Alkaline) If battery lamp is flickering Replace batteries in same position with sound as like above picture. Note ˙...
Before Using How to use touch-pad and random security coding function Random security coding function - Press any number randomly without limitation and then enter your secret code at final. With this function, you can open the door without revealing your secret code to others. Touch the front pad Numeric buttons Press random code (Ex : 1389)
Before Using How to change mode (Normal mode Safety mode) Note ˙ Manager code & manager card shall be controlled by authorized person for security. ˙ Existing secret code, card Press [ are deleted automatically (Brik~) after registration of new Open battery cover.
Normal Mode Normal Mode How to register secret code in normal mode 10KEY Open battery cover Press new secret Press [ ] Press new secret and press [10key] code. (Ex : 123456) (BrikBrik) code. (Ex : 234567) button shortly. (Bik) To register more secret code (Max.10EA of...
Basic function How to delete all card key in normal mode 10KEY Open the battery Press [ ] Input registered Press [ ] cover and press secret code. [10KEY] button shortly. (Ex : 123456) (Bik~) Delete confirm (Briririk~) Press [ Press [ ] Note ˙...
Safety Mode Safety Mode How to register secret code in safety mode Manager code & manager card shall be controlled by authorized person for security. Press [ ] Open the battery cover Registered manager code (Ex : 456789) and press [R/C] button or manager card shortly.
Before Using How to register card key in safety mode Even though new card is registered, previous card data is not deleted. If same registration number is applied, hold registration mode with warning sound. Open the battery Press [ ] Press [ Manager code (Ex : 456789)
Before Using How to delete all card data in safety mode Press [ ] Open the battery Manager code (Ex : 456789) cover and press or manager card [R/C] button shortly. (Bik) Press [ Press [ ] (Biriririk~) How to delete individual card data in safety mode It is not available to delete multiple individual card data in one time.
How to set manager in safety mode Change manager code in safety mode Open the battery cover Press [ ] Manager code Press [ ] Press [0] and press [R/C] button (Bik) (Ex : 456789) (Brik~) shortly. (Bik) Press [ ] Input new manager Press [ ] Input new manager...
Basic function How to open from outdoor (Secret code, card, Mute function) 1. Open the door using secret code Touch the front pad Enter secret code Press [ ] and door (Ex : 123456) is unlocked (Biriririk~) 2. Open the door using card key Touch the registered card key to card contact point...
Basic function How to lock the door from outdoor 1. Lock the door at auto-locking mode 2. Lock door at manual-locking mode When the door is closed, it is locked automatically At manual-locking mode, door is not locked with beeping sound. automatically even though the door is closed.
Basic function How to open or close with thumb-turn from indoor The lock can be locked or unlocked by turning the turmb-turn. Turn to clockwise, it will be unlocked Turn to counterclockwise, it will be locked. How to open or close with [Open/Close] button from indoor If you press [Open/Close] button, it is locked or unlocked automatically Press in locked status, it will be unlocked.
Application How to set double locking function [Double lock] mode, function of door lock is suspended and can't open the door from outside. ※ Please set this function after the door is closed. [Double lock] mode released [Double lock] mode installed (SILVER) (RED) Normal operation...
Application How to control volume level Sound volume can be controlled by 8 levels. (Mute to maximum level) Press [ ] Input secret code (Ex : 123456) Touch the front pad or Touch the card key ※ Press 1 to make maximum level and press 0 to make mute in one time.
Application Warning function against mischief or hacking If wrong secret code or unregistered card is applied over 3 times, alarm system is activated with warning sound and all the function of door lock is suspended for one minute. Biyoong~ Biyoong~ Applying wrong secret code over 3 times...
Application System reset Press open button to make it Open battery cover Remove battery discharged entirely. Safety mode Input manager code (Ex : 456789) Keep pressing [R/C] button, Press [ ] button or touch user card. insert battery. for 3 seconds. System reset is completed.
