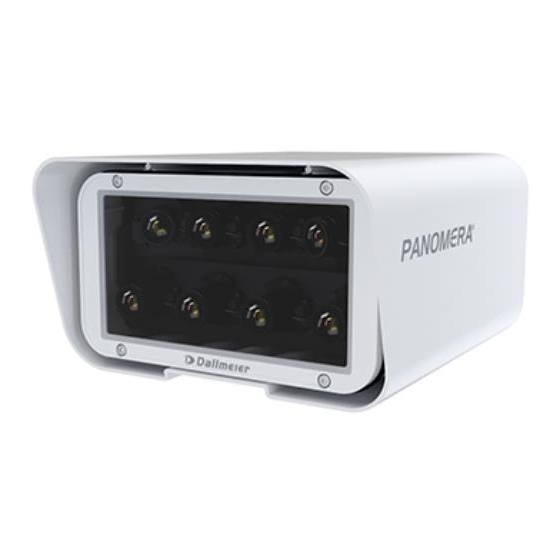

S4-S8
Commissioning
English
005110 / 1.0.7 / 2016-08-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANOMERA S4 and is the answer not in the manual?

Questions and answers

Related Manuals for dallmeier PANOMERA S4

Summary of Contents for dallmeier PANOMERA S4

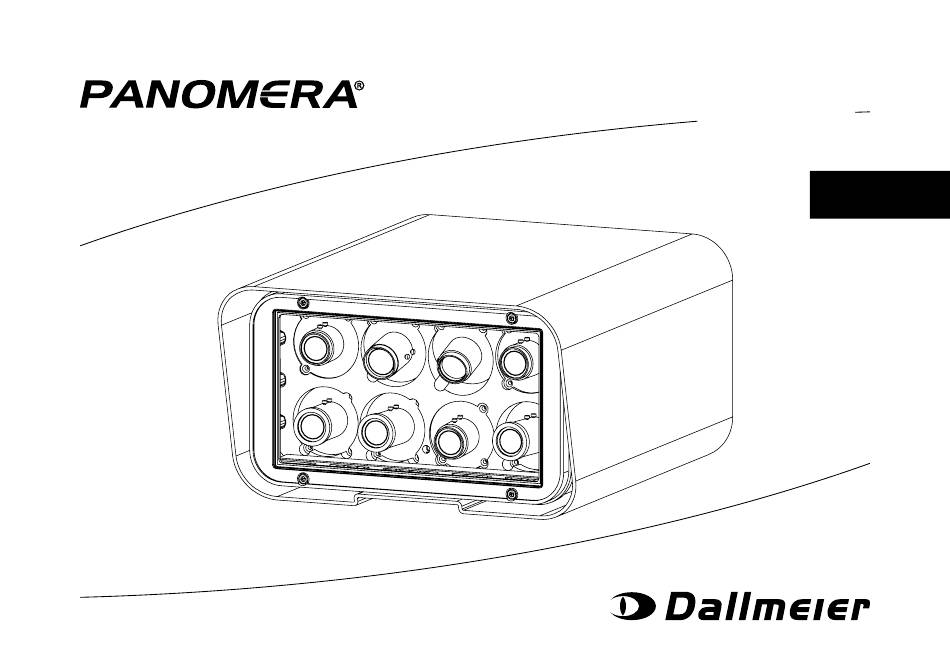

  • Page 1 S4-S8 Commissioning English 005110 / 1.0.7 / 2016-08-03...
  • Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.

  • Page 3: Table Of Contents

    10 Installation 10.1 Installation on Wall Mount Bracket 10.2 Installation on Ceiling Mount Bracket 11 Connections 12 Configuration 12.1 System Requirements 12.2 Configuration Steps 12.3 Establishing the Connection (Panomera® WebConfig) 12.4 Login (Panomera® WebConfig) 13 Technical Specifications 14 Dimensions www.dallmeier.com...

  • Page 4: Validity

    Always follow the instructions, notes and warnings and observe the technical specifications in the relevant product data sheet. Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest updates on product documentation. 2.1 This Document Commissioning The document “Commissioning”...

  • Page 5: Other Applicable Documents

    The document “Configuration – Quick Guide” contains the most important steps for configuring a Panomera® Multifocal Sensor System. The target audience of the document is trained system integrators. Also read the documentations of the following Dallmeier software applications: • PService3 •...

  • Page 6: Typographical Conventions

    “Expressions” in quotation marks generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu items). Paragraphs in italics provide information on basic principles, special features and efficient procedures as well as general recommendations. www.dallmeier.com...

  • Page 7: Safety Instructions

    Inappropriate internal components may cause malfunctions, damages and data loss and may result in the loss of warranty. • Modifications Do not make any modifications to the hardware or software that have not been tested and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damages and data loss and may result in the loss of warranty.
  • Page 8 The device may only be opened by qualified personnel for inspection, maintenance and repair. • Disposal Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the device from the power supply. Remove all connected devices. Return the device to your respective sales partner. www.dallmeier.com...

  • Page 9: General Notes

    6.2 Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofessional/improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packaging sufficiently protects the device against damage, moisture, heat and cold.

  • Page 10: Appropriate Use

    • The accuracy of the automatic white balance (AWB) algorithm depends on the used lighting. Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduction). • Poor lighting can lead to an incorrect white balance. www.dallmeier.com...

  • Page 11: Formation Of Condensation

    This results in condensation or fog on the outer glass pane (like dew on the grass). This phenomenon is due to physical reasons and, therefore, does not constitute a defect. ⓐ Pressure equalization element www.dallmeier.com...

  • Page 12: Requirements

    −40 °C to +50 °C (minimum start-up temperature: −30 °C) Heater On: < +10 °C Heater Off: > +10 °C −40 °F to 122 °F (minimum start-up temperature: −22 °F) Heater On: < 50 °F Heater Off: > 50 °F Relative humidity 0 % – 90 % RH, non-condensing IP rating IP66 www.dallmeier.com...

  • Page 13: Power Supply

    Camera: 48 V DC Heater: 48 V DC / 24 V AC Power consumption Camera: Max. 80 W (depending on the model, see the respective current product data sheet on www.dallmeier.com) Heater: Max. 60 W Connection Hirschmann CA 3 GS (mating connector: Hirschmann CA 3 LD)

  • Page 14: Maintenance

    ➡ Clean the front glass with water and some dishwashing agent using a soft, lint-free cloth or sponge. • Do not use common glass cleaners. • Dry the glass surface with a clean, lint-free cloth or natural chamois leather. www.dallmeier.com...

  • Page 15: Limits Of The System

    • due to diurnal and seasonal changes in humidity and temperature and thus the resulting component movements or material stresses (e.g. of poles and brackets), image changes may occur mainly in more distant scene areas (e.g. changes of image section and edge transitions). www.dallmeier.com...

  • Page 16: Installation

    The safety wire rope conforms to the standard BGI 810-3 (Safety at Productions and Events – Loads Suspended above Persons) and is designed to secure loads up to 35 kg (77 lbs). ⓐ ⓐ Eye bolt DIN 580 for safety wire rope (BGI 810-3) www.dallmeier.com...

  • Page 17: Installation On Wall Mount Bracket

    Commissioning S4-S8 10.1 Installation on Wall Mount Bracket ❶ ⓐ ⓒ ⓑ ⓐ Adapter plate with two keyhole-shaped slots ⓑ 4× Hexagon socket head cap screw DIN 912 (M5 × 16) ⓒ 4× washer DIN 125 – A5.3 www.dallmeier.com...
  • Page 18 Commissioning S4-S8 ❷ ⓐ ⓐ 2× Slotted pan head screw with shoulder DIN 923 (M6 × 4) www.dallmeier.com...
  • Page 19 Commissioning S4-S8 ⓐ 2× Slotted pan head screw with shoulder DIN 923 (M6 × 4) ⓐ ⓐ ➡ Attach the housing to adapter plate. For this, insert the slotted pan head screws ⓐ into the keyhole-shaped slots. www.dallmeier.com...
  • Page 20 Commissioning S4-S8 ⓑ Mini indexing plunger GN 822 ⓑ ➡ Slide the housing forwards until the mini indexing plunger ⓑ engages automatically. www.dallmeier.com...
  • Page 21 Commissioning S4-S8 ❸ ⓐ ⓐ 4× Hexagon socket head cap screw ISO 4762 (M6 x 12) ➡ Secure the housing with the supplied hexagon socket head cap screws ⓐ. www.dallmeier.com...

  • Page 22: Installation On Ceiling Mount Bracket

    ⓑ ⓐ 2× Hexagon head screw (M6 x 12) ⓑ 2× Washer Do NOT fully tighten the screws at this time. Tighten the screws just enough (finger-tight) so that the adapter plate can still be moved slightly for later housing assembly. www.dallmeier.com...
  • Page 23 Commissioning S4-S8 ❷ ⓐ 2× Slotted pan head screw with shoulder DIN 923 (M6 × 4) ⓐ ➡ Loosen the slotted pan head screws ⓐ on the bottom of the housing. www.dallmeier.com...
  • Page 24 Commissioning S4-S8 www.dallmeier.com...
  • Page 25 Commissioning S4-S8 ❸ ➡ Carefully remove the sun shield from the housing. www.dallmeier.com...
  • Page 26 Commissioning S4-S8 ❹ ⓐ ⓐ 2× Slotted pan head screw with shoulder DIN 923 (M6 × 4) ➡ Screw the slotted pan head screws ⓐ on the top of the housing. www.dallmeier.com...
  • Page 27 Commissioning S4-S8 www.dallmeier.com...
  • Page 28 Commissioning S4-S8 ❺ ⓐ ⓐ 4× Hexagon socket head cap screw DIN 912 (M6 × 10) ➡ Loosen the hexagon socket head cap screws ⓐ of both plastic rails on the top of the housing. www.dallmeier.com...
  • Page 29 Commissioning S4-S8 ❻ ➡ Remove the plastic rails from the housing. www.dallmeier.com...
  • Page 30 Commissioning S4-S8 www.dallmeier.com...
  • Page 31 Commissioning S4-S8 ❼ ⓐ ⓐ 2× Slotted pan head screw with shoulder DIN 923 (M6 × 4) www.dallmeier.com...
  • Page 32 Commissioning S4-S8 ⓐ ⓐ 2× Slotted pan head screw with shoulder DIN 923 (M6 × 4) ➡ Attach the housing to the adapter plate. For this, insert the slotted pan head screws ⓐ into the keyhole-shaped slots. www.dallmeier.com...
  • Page 33 Commissioning S4-S8 ⓑ Mini indexing plunger GN 822 ⓑ ➡ Slide the housing forwards until the mini indexing plunger ⓑ engages automatically. www.dallmeier.com...
  • Page 34 Commissioning S4-S8 ❽ ⓐ ⓐ 4× Hexagon socket head cap screw ISO 4762 (M6 x 12) ➡ Secure the housing with the supplied hexagon socket head cap screws ⓐ. www.dallmeier.com...
  • Page 35 Commissioning S4-S8 ❾ ⓐ ⓐ 2× Hexagon head screw (M6 x 12) ➡ Finally, tighten both hexagon head screws ⓐ (adapter plate/ceiling mount bracket). www.dallmeier.com...

  • Page 36: Connections

    Commissioning S4-S8 11 Connections ⓐ ⓐ Earthing/grounding connection (connecting thread M6) www.dallmeier.com...
  • Page 37 (mating connector: Hirschmann CA 3 LD) Always observe the power supply requirements specified on the product rating plate. For the parallel power supply of camera and heater with a 48 V DC power supply unit (optionally available), a 4-core cable link is recommended. www.dallmeier.com...

  • Page 38: Configuration

    Multifocal Sensor System is established (Microsoft Internet Explorer and Internet connection required). • the latest version of the Dallmeier Live Video ActiveX can also be downloaded directly from the Panomera® Multifocal Sensor System without an Internet connection (Panomera® WebConfig > “Service” > “Downloads”).

  • Page 39: Configuration Steps

    The connection to the Panomera® master module is then established. Depending on the used web browser, the graphical user interface (GUI) of the live mode is displayed first (only with Microsoft Internet Explorer) or you will be taken directly to the login dialog. www.dallmeier.com...

  • Page 40: Login (Panomera® Webconfig)

    ➡ Change the factory default admin password as soon as possible (“Common settings” > “User management” > “User groups ...”). ➡ If necessary, click “CONFIG” in the user interface of the live mode to display the login dialog. The login dialog is then displayed. ➡ Enter the “Password” (Default: 3). ➡ Confirm with “OK”. www.dallmeier.com...

  • Page 41: Technical Specifications

    Heater Off: > 50 °F Relative humidity 0 % – 90 % RH, non-condensing IP rating IP66 Always observe the power supply requirements specified on the product rating plate. Detailed specifications and possible updates can be found in the respective current product data sheet on www.dallmeier.com. www.dallmeier.com...

  • Page 42: Dimensions

    Commissioning S4-S8 14 Dimensions 306 mm (12.05") 370 mm (14.57") Adapter plate 62 mm (2.44") 306 mm (12.05") www.dallmeier.com...
  • Page 43 Notes...
  • Page 44 Dallmeier electronic GmbH & Co.KG Cranachweg 1 · 93051 Regensburg · Germany Phone +49 (0) 941 87 00-0 · Fax +49 (0) 941 87 00-180 www.dallmeier.com · info@dallmeier.com...
