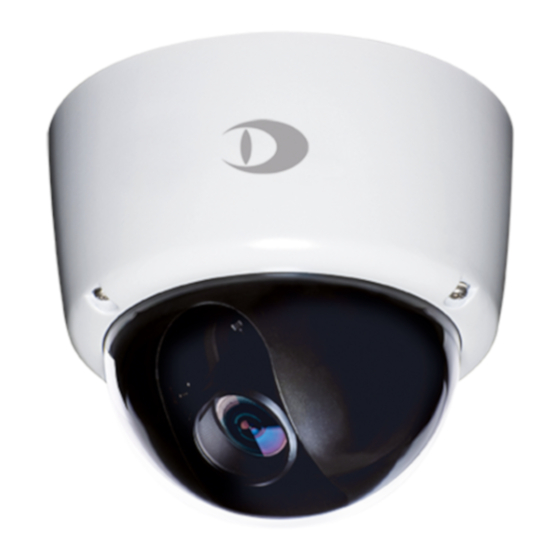

dallmeier DDF51 HDV-DN-SM Series Commissioning

Hide thumbs
Table of Contents

Advertisement

Quick Links

DDF51(X)0HDV-DN
SM
Commissioning
English
006832 / 1.0.2 / 2018-12-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDF51 HDV-DN-SM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier DDF51 HDV-DN-SM Series

Summary of Contents for dallmeier DDF51 HDV-DN-SM Series

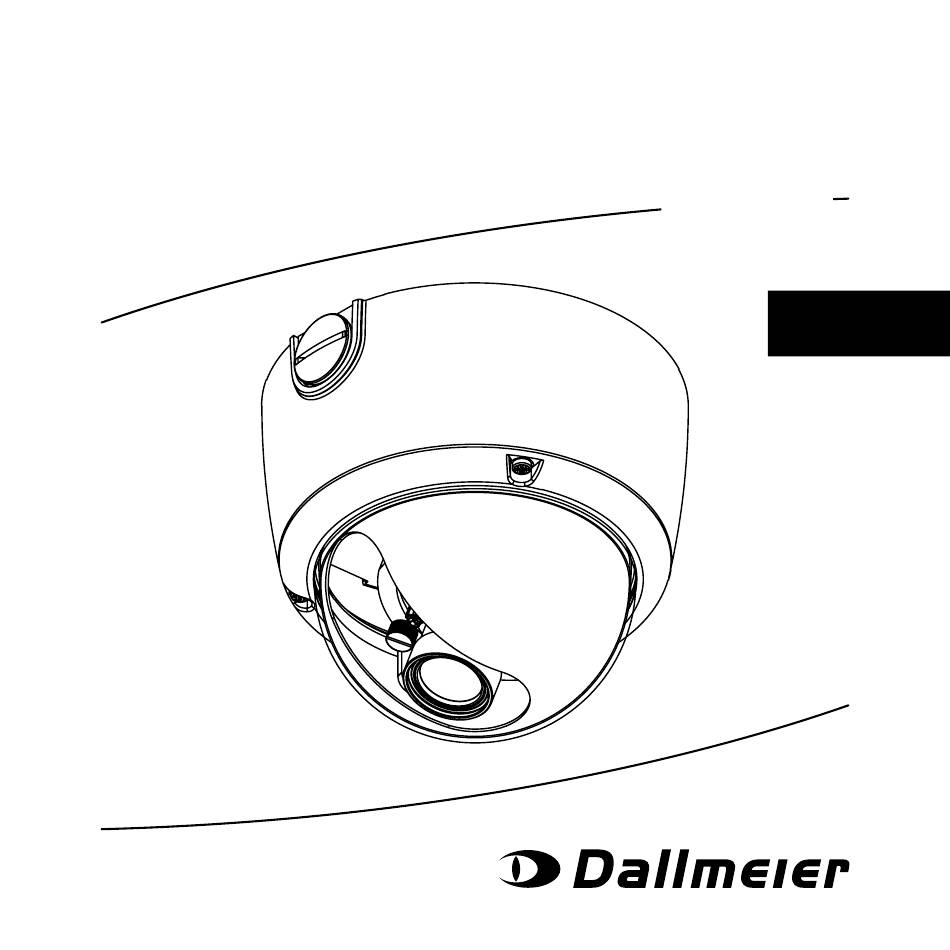

  • Page 1 DDF51(X)0HDV-DN Commissioning English 006832 / 1.0.2 / 2018-12-19...
  • Page 2 Phillips of Phillips Screw Company headquartered in Burlington, Massachusetts, USA. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.

  • Page 3: Table Of Contents

    Appropriate Use Operation Approvals/Certifications 6 Requirements Ambient Conditions Power Supply 7 Maintenance 8 Installation and Commissioning 9 Interfaces 10 Inserting a Memory Card 11 Pin Assignment – Interface Board Series 5100 12 Removing the Camera Module 13 Connection and Login Connection Login 14 Technical Specifications 15 Dimensions © 2018 Dallmeier | www.dallmeier.com...

  • Page 4: Validity

    Keep all documents in legible condition and in a suitable location for future refer- ence. Regularly check the website www.dallmeier.com for the latest product documen- tation updates. © 2018 Dallmeier | www.dallmeier.com...

  • Page 5: This Document

    The target audience of the document is trained system integrators (video security/ surveillance systems installation contractors). Configuration The document entitled “Configuration” contains detailed information concerning the configuration of the device. The target audience of the document is trained system integrators (video security/ surveillance systems installation contractors). © 2018 Dallmeier | www.dallmeier.com...

  • Page 6: Typographical Conventions

    CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE NOTICE addresses practices not related to physical injury, such as device and/or property damage due to faulty operations or incor- rect configurations. © 2018 Dallmeier | www.dallmeier.com...
  • Page 7 (housing parts, mounting elements, connections/interfaces, etc.) or to control elements of the device’s web-based graphical user interface (menu items, buttons, etc.). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. © 2018 Dallmeier | www.dallmeier.com...

  • Page 8: Safety Instructions

    • System Components Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components may cause malfunctions, damages and data loss and may result in the loss of warranty.
  • Page 9 Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product docu- mentation updates. • Condensation Water If the device is brought from a cold to a warm environment, resulting condensa- tion water may cause malfunctions and damages.
  • Page 10 If objects or liquids get into the device, immediately disconnect it from the power supply (pull out the power plug or disconnect the device from the PoE enabled PSE port). Contact the sales partner responsible for your area. © 2018 Dallmeier | www.dallmeier.com...
  • Page 11 • Disposal Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the device from the power supply. Remove all connected devices. Return the device to the sales partner responsible for your area. © 2018 Dallmeier | www.dallmeier.com...

  • Page 12: General Notes

    • Drilling template (published in print and on DVD-ROM) • Product documentation (published in print and/or on DVD-ROM) The scope of delivery may differ depending on the ordered equipment, device variant or country of destination. © 2018 Dallmeier | www.dallmeier.com...

  • Page 13: Transportation And Packaging

    DDF51(X)0HDV-DN-SM Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofessional or improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packaging suf- ficiently protects the device against damage, moisture, heat and cold.

  • Page 14: Appropriate Use

    ➡ Use the optionally available Dallmeier outdoor wall mount bracket if you want to install the device in outdoor environ- ments (for more information, contact the sales partner respon- sible for your area or visit www.dallmeier.com).

  • Page 15: Operation

    • The accuracy of the Automatic White Balance (AWB) algorithm depends on the used lighting. Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduction). • Poor lighting can lead to an incorrect white balance. © 2018 Dallmeier | www.dallmeier.com...

  • Page 16: Approvals/Certifications

    The following approvals/certifications were valid for the device at the time of this document’s compilation: • CE, FCC, RCM, UL, DIN 50130-4 compliant Visit www.dallmeier.com for possible updates. Note (USA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 17: Requirements

    Ambient Conditions The device is primarily designed for indoor use and may only be used outdoors in conjunction with the optionally available Dallmeier outdoor wall mount bracket (for more information, contact the sales partner responsible for your area or visit www.dallmeier.com).

  • Page 18: Power Supply

    ➡ Carry out all protective measures for a standard-compliant grounding/earthing of the device in accordance with the cur- rently applicable DIN, VDE and ISO standards in order to ensure the safety of persons (protection against dangerous contact voltages). © 2018 Dallmeier | www.dallmeier.com...
  • Page 19 DIN, VDE and ISO standards in order to ensure the safety of the device (pro- tection against over-voltages) and its immunity to electromag- netic interferences (EMI). © 2018 Dallmeier | www.dallmeier.com...
  • Page 20 ➡ Always disable PoE on the relevant port of your PoE switch (or PoE midspan device) or disconnect the used single-port PoE injector from the power supply before un-mating the jack-plug connection in order to prevent damage to the contacts of the RJ45 connectors by contact erosion. © 2018 Dallmeier | www.dallmeier.com...

  • Page 21: Maintenance

    • Do not use common glass cleaners. • Avoid excessive rubbing. • To dry the plastic bubble, dab it carefully and gently with a clean, soft, dry and antistatic cloth to avoid scratching the surface. © 2018 Dallmeier | www.dallmeier.com...

  • Page 22: Installation And Commissioning

    • Plastic screw anchors for use in solid masonry materials (concrete/brick) • Gravity or spring toggle anchors for use in drywall systems (plasterboard) © 2018 Dallmeier | www.dallmeier.com...
  • Page 23 Commissioning DDF51(X)0HDV-DN-SM ❶ ⓐ Torx screwdriver with hollow point (T20 H) ⓐ © 2018 Dallmeier | www.dallmeier.com...
  • Page 24 DDF51(X)0HDV-DN-SM Commissioning ⓐ 3× Tamper-resistant torx screw (Torx-TR 20) ⓐ ➡ Loosen the three tamper-resistant torx screws (Torx-TR 20) of the housing cover using a torx screwdriver with hollow point (T20 H). © 2018 Dallmeier | www.dallmeier.com...
  • Page 25 Commissioning DDF51(X)0HDV-DN-SM ❷ ➡ Remove the housing cover (including the bubble) from the housing base. © 2018 Dallmeier | www.dallmeier.com...
  • Page 26 DDF51(X)0HDV-DN-SM Commissioning ❸ ⓐ Threaded blanking plug ⓑ Sealing ring ⓐ ⓑ ➡ Remove the threaded blanking plug of the side cable entry (use a suitable coin or a large flat-blade screwdriver). © 2018 Dallmeier | www.dallmeier.com...
  • Page 27 Commissioning DDF51(X)0HDV-DN-SM ❹ ➡ Securely seal the unused cable entry with the existing threaded blanking plug and the corresponding sealing ring. © 2018 Dallmeier | www.dallmeier.com...
  • Page 28 DDF51(X)0HDV-DN-SM Commissioning ❺ ⓐ ⓐ Rubber gasket (adhesive-backed) ➡ Remove the paper backing from the self-adhesive rubber gasket. ➡ Adhere the gasket to the bottom of the housing base. © 2018 Dallmeier | www.dallmeier.com...
  • Page 29 ➡ Observe the chapter “Interfaces” on page 38. ➡ Route the required cables through the cable entry. NOTICE: Use the supplied PG16 cable gland (or an equivalent type) for optimum tightness. ➡ Carry out the cabling. © 2018 Dallmeier | www.dallmeier.com...
  • Page 30 3-axis camera gimbal as shown on page 32. ⓐ ⓑ ⓐ Drill hole (3×) ⓒ ⓑ Dowel/anchor (3×) ⓒ O-ring (3×) ⓓ Mounting screw (3×) ⓓ © 2018 Dallmeier | www.dallmeier.com...
  • Page 31 ➡ Mount the housing base with three screws (incl. O-rings) to the ceiling/wall. NOTICE: Tighten the three mounting screws slowly and with normal force to avoid damage to the O-rings. © 2018 Dallmeier | www.dallmeier.com...
  • Page 32 DDF51(X)0HDV-DN-SM Commissioning ❽ ⓐ Knurled thumb screw (roll axis) Pan: Max. ±90° 45° ⓐ Roll: Max. ±180° Tilt: Max. ±45° ⓐ Maximum permissible pan, tilt and roll range © 2018 Dallmeier | www.dallmeier.com...
  • Page 33 ➡ Adjust the focal length (zoom) and the focus position in the “Lens control” camera dialog. ➡ Repeat the last two steps until the captured scene meets your require- ments. © 2018 Dallmeier | www.dallmeier.com...
  • Page 34 ⓑ ➡ Attach the housing cover (including the bubble) back to the housing base. NOTICE: Make sure that the ambient light sensor is not covered by the black inner liner (rotate the bubble as required). © 2018 Dallmeier | www.dallmeier.com...
  • Page 35 (left figure) which will result in loss of tightness. ➡ Before re-attaching the housing cover, make sure that the O-ring is seated correctly (right figure) to ensure optimum tightness. To simplify insertion into the provided groove, slightly overstretch the O-ring several times beforehand. © 2018 Dallmeier | www.dallmeier.com...
  • Page 36 ➡ Tighten the three tamper-resistant torx screws (Torx-TR 20) of the housing cover using a torx screwdriver with hollow point (T20 H). NOTICE: Observe the maximum permissible torque of 1.0 Nm to prevent damage to the O-rings of the housing screws. © 2018 Dallmeier | www.dallmeier.com...
  • Page 37 Commissioning DDF51(X)0HDV-DN-SM © 2018 Dallmeier | www.dallmeier.com...

  • Page 38: Interfaces

    DDF51(X)0HDV-DN-SM Commissioning 9 Interfaces ⓐ ⓑ ⓒ ⓖ ⓓ ⓔ ⓕ © 2018 Dallmeier | www.dallmeier.com...
  • Page 39 ⓖ Power IN (Weidmüller male connector SL 3.50/02/90G) ➡ Connect the required cables to the respective interfaces of the camera module (if necessary, see chapter “Pin Assignment – Interface Board Series 5100” on page 42). © 2018 Dallmeier | www.dallmeier.com...

  • Page 40: Inserting A Memory Card

    DDF51(X)0HDV-DN-SM Commissioning 10 Inserting a Memory Card ⓐ ⓐ microSDXC card (optional) © 2018 Dallmeier | www.dallmeier.com...
  • Page 41 ➡ Only use memory cards that have been tested and approved by Dallmeier (failure to do so may result in the loss of warranty). Damage to the device or memory card due to incorrect card...

  • Page 42: Pin Assignment - Interface Board Series 5100

    2.0 mm) or a similar tool into the rectangular opening below each conductor and pull out the conductor. Note, however, that disconnecting the conductors is only possible after the camera module has been removed (see chapter “Removing the Camera Module” on page 48). © 2018 Dallmeier | www.dallmeier.com...
  • Page 43 Contact IN 2 GND (isolated) Contact IN 1 Contact OUT 1A Contact OUT 1B Contact OUT 2A Contact OUT 2B Contact IN 1 – 2: For use with potential-free switching contacts Contact OUT 1 – 2: Open-drain output (max. 5 V DC, 500 mA, potential-free, low-impedance connection) © 2018 Dallmeier | www.dallmeier.com...
  • Page 44 RS485_A: RX+ (Non-inverting Receiver Input) RS485_B: RX− (Inverting Receiver Input) RS485_Y: TX+ (Non-inverting Driver Output) RS485_Z: TX− (Inverting Driver Output) RS485 – Half duplex RS485_Y: TX+/RX+ (Non-inverting Driver Output and Non-inverting Receiver Input) RS485_Z: TX−/RX− (Inverting Driver Output and Inverting Receiver Input) © 2018 Dallmeier | www.dallmeier.com...
  • Page 45 Line IN (stereo) Line OUT (stereo) Left channel Left channel Ring Right channel Right channel Sleeve Ground Ground Audio Line IN (stereo) Input level: max. 2.83 V Input impedance: 29 kΩ Audio Line OUT (stereo) Output level at 10 kΩ load: max. 3.11 V Output impedance: 320 Ω © 2018 Dallmeier | www.dallmeier.com...
  • Page 46 (mating connector: Weidmüller BL 3.50/02/180 SN) In order to comply with UL’s requirements, only use a UL certified “Limited Power Source (LPS)” power supply unit when powering the device by an exter- nal DC power supply unit. © 2018 Dallmeier | www.dallmeier.com...

  • Page 48: Removing The Camera Module

    The descriptions and instructions in this chapter are only relevant if you want to disconnect conductors from the “Contact IN/OUT” and/or “RS485” push-in terminal block. ➡ Unscrew the three fixing screws of the camera module. © 2018 Dallmeier | www.dallmeier.com...
  • Page 49 Lock washer (3×) ➡ Remove the three fixing screws and the three toothed lock washers from the camera module. ➡ Loosen the strain relief of the PG16 cable gland by unscrewing the cor- responding cap nut. © 2018 Dallmeier | www.dallmeier.com...
  • Page 50 (use the cable entry as a reference point for later correct align- ment during reassembly). ➡ Carefully remove the camera module from the housing base. NOTICE: Be careful not to damage or disconnect the cables of the camera unit! © 2018 Dallmeier | www.dallmeier.com...
  • Page 51 (type: bladed, blade thickness: 0.4 mm, blade width: 2.0 mm) or a similar tool. ➡ Reassemble the camera module at its original position in the housing base (do not forget the toothed lock washers). © 2018 Dallmeier | www.dallmeier.com...

  • Page 52: Connection And Login

    Microsoft Internet Explorer 11 (Windows 7) Microsoft Edge (Windows 10) Google Chrome Mozilla Firefox (latest available version of each browser) Browser settings JavaScript enabled Ethernet 100 Mbps Sound Sound card or on-board sound chip (min. 16 bit) © 2018 Dallmeier | www.dallmeier.com...

  • Page 53: Connection

    ➡ Enter the IP address of the device into the address bar of the web browser. ➡ Confirm the input. The connection to the device is then established. After the successful connection to the device, the login dialog is displayed. © 2018 Dallmeier | www.dallmeier.com...

  • Page 54: Login

    After the successful login, the graphical user interface of the configuration mode is displayed. ➡ Configure all required settings (e.g. zoom and focus position). ➡ Finally, click “LOGOUT” to properly log out of the device. © 2018 Dallmeier | www.dallmeier.com...

  • Page 55: Technical Specifications

    Input level: max. 2.83 V Input impedance: 29 kΩ Audio Line OUT (stereo) 1× 3.5 mm phone jack (for stereo TRS plug): Output level at 10 kΩ load: max. 3.11 V Output impedance: 320 Ω Power IN 1× Weidmüller male connector SL 3.50/02/90G © 2018 Dallmeier | www.dallmeier.com...
  • Page 56 3-axis gimbal for manual adjustment (pan/tilt/roll) Bubble Clear (with black inner liner) Vandal-resistant IK protection IK10 protection against external mechanical impacts (up to 20 joules) IP rating IP67 Color White Dimensions Approx. Ø 152 × H 133 mm (Ø 5.98" × H 5.25") Weight Approx. 1100 g (2.4 lb) © 2018 Dallmeier | www.dallmeier.com...
  • Page 57 0 % – 90 % RH, non-condensing Approvals/Certifications Type • CE • FCC • RCM • UL • DIN 50130-4 compliant For detailed technical specifications and possible updates, see the currently valid product data sheet that is available on www.dallmeier.com. © 2018 Dallmeier | www.dallmeier.com...

  • Page 58: Dimensions

    DDF51(X)0HDV-DN-SM Commissioning 15 Dimensions 151.93 mm (5.98") Ø 120 mm (4.72") 45 mm (1.76") Ø 4.5 mm (0.18") 113.80 mm (4.48") © 2018 Dallmeier | www.dallmeier.com...
  • Page 60 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 8700-0 · Fax +49 941 8700-180 www.dallmeier.com · info@dallmeier.com...
