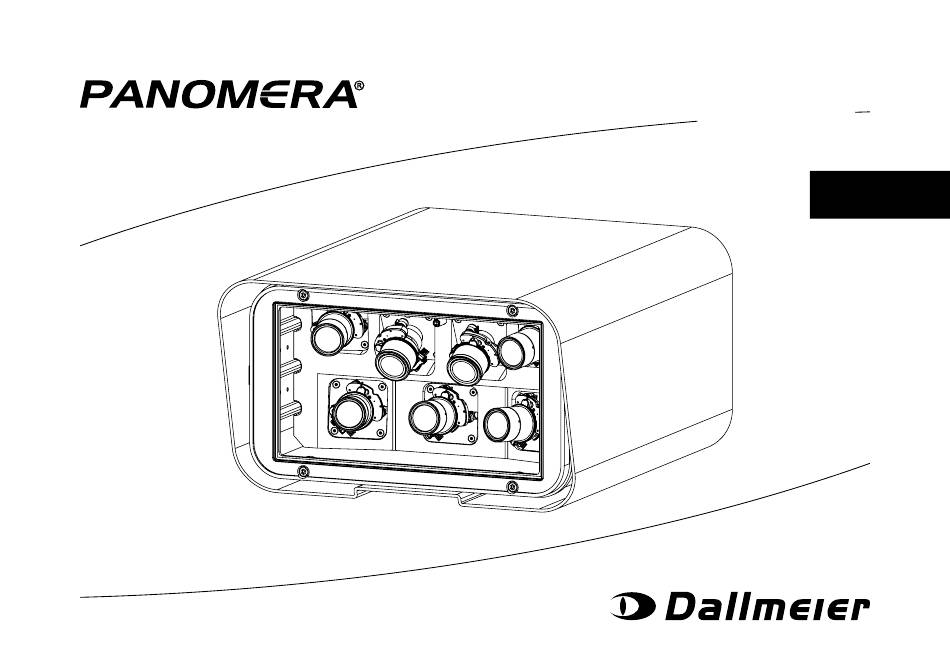

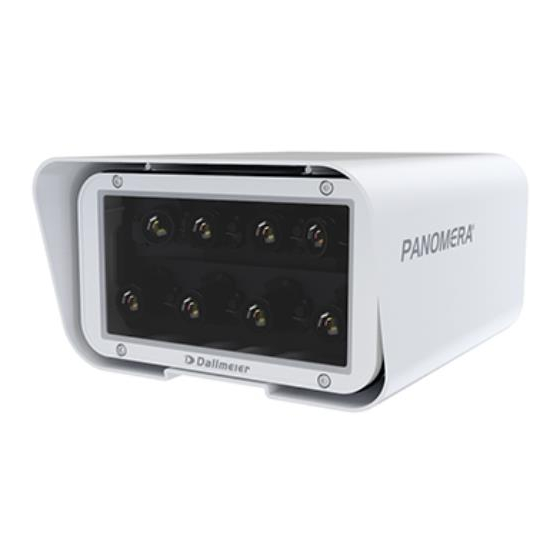

- Page 1 S4-S8 Commissioning English 005110 / 2.0.0 / 2017-07-12...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
10 Installation 10.1 Installation on Wall Mount Bracket 10.2 Installation on Ceiling Mount Bracket 11 Connections 12 Configuration 12.1 System Requirements 12.2 Configuration Steps 12.3 Establishing the Connection (Panomera® WebConfig) 12.4 Login (Panomera® WebConfig) 13 Technical Specifications 14 Dimensions www.dallmeier.com... -
Page 4: Validity
The product documentation contains several documents which are included in the scope of delivery in a printed form and/or on a digital medium. Additional information, if available, is provided exclusively on the website www.dallmeier.com. Read the available product documentation carefully and thoroughly before using the respective device or software application. -
Page 5: Other Applicable Documents
The document entitled “Configuration – Quick Guide” contains the most important steps for configuring a Panomera® multifocal sensor system. The target audience of the document is trained system integrators. In this context, also read the documentations of the following Dallmeier software applications: • PService3 •... -
Page 6: Typographical Conventions
“Expressions” in quotation marks generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu items). Paragraphs in italics provide information on basic principles, special features and efficient procedures as well as general recommendations. www.dallmeier.com... -
Page 7: Safety Instructions
Inappropriate internal components may cause malfunctions, damages and data loss and may result in the loss of warranty. • Modifications Do not make any modifications to the hardware or software that have not been tested and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damages and data loss and may result in the loss of warranty. - Page 8 The device may only be opened by qualified personnel for inspection, maintenance and repair. • Disposal Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the device from the power supply. Remove all connected devices. Return the device to your respective sales partner. www.dallmeier.com...
-
Page 9: General Notes
6.2 Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofessional/improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packaging sufficiently protects the device against damage, moisture, heat and cold. -
Page 10: Appropriate Use
• The accuracy of the automatic white balance (AWB) algorithm depends on the used lighting. Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduction). • Poor lighting can lead to an incorrect white balance. www.dallmeier.com... -
Page 11: Formation Of Condensation
This results in condensation or fog on the outer glass pane (like dew on the grass). This phenomenon is due to physical reasons and, therefore, does not constitute a ⓐ Pressure equalization element defect. www.dallmeier.com... -
Page 12: Requirements
−40 °C to +50 °C (minimum start-up temperature: −30 °C) Heater On: < +10 °C Heater Off: > +10 °C −40 °F to 122 °F (minimum start-up temperature: −22 °F) Heater On: < 50 °F Heater Off: > 50 °F Relative humidity 0 % – 90 % RH, non-condensing IP rating IP66 www.dallmeier.com... -
Page 13: Power Supply
Camera: 48 V DC Heater: 48 V DC / 24 V AC Power consumption Camera: Max. 80 W (depending on the model, see the respective current product data sheet on www.dallmeier.com) Heater: Max. 60 W Connection Hirschmann CA 3 GS (mating connector: Hirschmann CA 3 LD) -
Page 14: Maintenance And Inspection
Damage to the coated front glass due to improper cleaning ➡ Clean the coated front glass of the Panomera® only with the cleaning components recommended by Dallmeier (special glass cleaner and cotton cleaning cloths). • Do not use common glass cleaners or other detergents. -
Page 15: Limits Of The System
• due to diurnal and seasonal humidity and temperature fluctuations and the resulting component movements or material stresses (e.g. of poles and brack- ets), image changes may occur mainly in more distant scene areas (e.g. changes of image section and edge transitions). www.dallmeier.com... -
Page 16: Installation
The supplied safety wire rope conforms to the standard BGI 810-3 (“Safety at Productions and Events – Loads Suspended above Persons”) and is designed to secure loads up to 35 kg (77 lbs). ⓐ Eye bolt DIN 580 for safety wire rope (BGI 810-3) ⓐ www.dallmeier.com... -
Page 17: Installation On Wall Mount Bracket
Adapter plate (already mounted at the factory) ⓑ 4× Hexagon socket head cap screw DIN 912 (M5 × 16) ⓒ ⓑ 4× Washer DIN 125 – A5.3 ➡ Mount the Panomera® on the wall mount bracket as shown in the figure above. www.dallmeier.com... -
Page 18: Installation On Ceiling Mount Bracket
➡ Place the Panomera® with the top side of the sunshield facing downwards on a clean and stable surface (put a soft cloth or similar under the sunshield to avoid scratching its surface coating). ➡ Unscrew the 4 hexagon socket head cap screws ⓐ and remove the adapter plate ⓑ . www.dallmeier.com... - Page 19 Commissioning S4-S8 ❷ ➡ Carefully slide the Panomera® out of the sunshield. www.dallmeier.com...
- Page 20 ⓑ 4× Plastic rail ➡ Turn the Panomera® so that the top of the housing is facing up again. ➡ Unscrew the 8 hexagon socket head cap screws ⓐ and remove the 4 plastics rails ⓑ from the housing. www.dallmeier.com...
- Page 21 The beveled edge of the adapter plate has to point backwards (in the direction of the hous- ing backside). ➡ Mount the adapter plate ⓑ with the 4 hexagon socket head cap screws ⓐ onto the top side of the housing. www.dallmeier.com...
- Page 22 Commissioning S4-S8 ❺ ⓐ ⓐ 2× Hexagon head screw (M6 x 12) ⓑ ⓑ 2× Washer ➡ Mount the Panomera® on the ceiling mount bracket as shown in the figure above. www.dallmeier.com...
- Page 23 Commissioning S4-S8 www.dallmeier.com...
-
Page 24: Connections
Commissioning S4-S8 11 Connections ⓐ ⓐ Earthing/grounding connection (connecting thread M6) www.dallmeier.com... - Page 25 (mating connector: Hirschmann CA 3 LD) Always observe the power supply requirements specified on the product rating plate. For the parallel power supply of camera and heater with a 48 V DC power supply unit (optionally available), a 4-core cable link is recommended. www.dallmeier.com...
-
Page 26: Configuration
Processor (CPU) 2.66 GHz Dual-Core Random access memory (RAM) 2 GB DDR3 Graphics card 1× NVIDIA GeForce GTX 1070 Ethernet 1000 Mbps (Gigabit Network) Web browser Microsoft Internet Explorer Google Chrome Mozilla Firefox (latest available version of each browser) Browser settings JavaScript enabled www.dallmeier.com... - Page 27 Random access memory (RAM) 8 GB DDR3 Graphics card 1× NVIDIA GeForce GTX 1070 + 2× NVIDIA GeForce GTX 950 Ethernet 1000 Mbps (Gigabit Network) Web browser Microsoft Edge Google Chrome Mozilla Firefox (latest available version of each browser) Browser settings JavaScript enabled www.dallmeier.com...
-
Page 28: Configuration Steps
The connection to the Panomera® master module is then established. After the successful connection to the Panomera® master module, the login dialog is displayed. The language of the graphical user interface (GUI) can be switched in the top-left corner of the screen without the need to login. www.dallmeier.com... -
Page 29: Login (Panomera® Webconfig)
After the successful login, the graphical user interface of the configuration mode is displayed. ➡ Configure all required settings. ➡ Finally, click “LOGOUT” to log out of the Panomera® multifocal sensor system. Detailed descriptions of the configuration settings can be found in separate documentations that are available on www.dallmeier.com. www.dallmeier.com... -
Page 30: Technical Specifications
Heater Off: > 50 °F Relative humidity 0 % – 90 % RH, non-condensing IP rating IP66 Always observe the power supply requirements specified on the product rating plate. Detailed specifications and possible updates can be found in the respective current product data sheet on www.dallmeier.com. www.dallmeier.com... -
Page 31: Dimensions
Commissioning S4-S8 14 Dimensions 305 mm (12.01") 370 mm (14.57") 320 mm (12.60") 16 mm (0.63") Adapter plate (2×) M6 (6×) M5 (4×) DIN74-Km6 [mm] 31 35 305 mm (12.01") www.dallmeier.com... - Page 32 Notes...
- Page 33 Notes...
- Page 36 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 8700-0 · Fax +49 941 8700-180 www.dallmeier.com · info@dallmeier.com...
