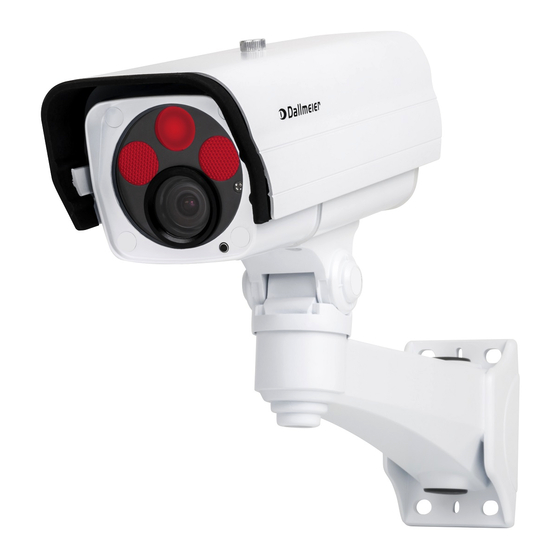

DF5200HD-DN/IR
Commissioning
English
005682 / 1.0.5 / 2017-02-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF5200HD-DN/IR and is the answer not in the manual?

Questions and answers

Related Manuals for dallmeier DF5200HD-DN/IR

Summary of Contents for dallmeier DF5200HD-DN/IR

  • Page 1 DF5200HD-DN/IR Commissioning English 005682 / 1.0.5 / 2017-02-02...
  • Page 2 Torx of Acument Intellectual Properties, LLC headquartered in Rockford, Illinois, USA. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identifi- cation of third-party trademarks and indication of the respective holder of rights.
  • Page 3 1× 1× 1× 1× 1× 1× 4× 4× 4× 1×...

  • Page 5: Table Of Contents

    DF5200HD-DN/IR Contents 1 Validity 2 Documents This Document Other Applicable Documents 3 Typographical Conventions 4 Safety Instructions 5 General Notes Scope of Delivery Transportation and Packaging Warranty Appropriate Use Operation Approvals/Certifications 6 Requirements Ambient Conditions Power Supply 7 Maintenance 8 Installation and Commissioning 9 Front View of Camera...

  • Page 6: Validity

    Always follow the contained instructions, notes and warnings and ob- serve the technical specifications in the product data sheet. Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product documentation updates. www.dallmeier.com...

  • Page 7: This Document

    DF5200HD-DN/IR This Document Commissioning The document entitled “Commissioning” (this document) contains detailed information concerning the installation, connection and commis- sioning of the device as well as safety instructions and general notes. The target audience of this document is trained system integrators.

  • Page 8: Typographical Conventions

    DF5200HD-DN/IR Typographical Conventions This document may contain various warning words and symbols that indicate potential sources of danger:  DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.  WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 9 DF5200HD-DN/IR For reasons of clarity and readability, various text formatting elements and types of emphasis are used in this documentation: Instructions are indicated by arrows (➡). ➡ Always carry out instructions one after the other in the sequence described. “Expressions” in quotation marks generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu items).

  • Page 10: Safety Instructions

    • Modifications Do not make any modifications to the hardware or software that have not been tested and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damages and data loss and may result in the loss of warranty.
  • Page 11 Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product documentation updates. • Condensation Water If the device is brought from a cold to a warm environment, resulting condensation water may cause malfunctions and damages.
  • Page 12 DF5200HD-DN/IR • Lightning Storms To avoid damage to the device by electrical surge during lightning storms, all protective measures, which are specified by the currently valid DIN, VDE and ISO standards and which provide for a standard- compliant lightning protection equipotential bonding, are mandatory and must be fulfilled by all means.

  • Page 13: General Notes

    DF5200HD-DN/IR General Notes Scope of Delivery Included in the standard scope of delivery is: • 1× Outdoor wall mount bracket with internal cable routing • 1× Flat gasket (adhesive-backed) for outdoor wall mount bracket • 1× Drilling template for outdoor wall mount bracket •...

  • Page 14: Transportation And Packaging

    DF5200HD-DN/IR Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofes- sional/improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used pack- aging sufficiently protects the device against damage, moisture, heat and cold.

  • Page 15: Operation

    DF5200HD-DN/IR The camera features a fast (large maximum aperture) and IR-corrected motor-driven megapixel varifocal lens with P-Iris technology which en- ables the control of optical zoom (focal length), focus and iris (optimum aperture) remotely over the network by using a web browser.

  • Page 16: Approvals/Certifications

    • UL • DIN 50130-4 compliant • Tested against IEC/EN 62471 Visit www.dallmeier.com for possible updates. Note (USA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment.

  • Page 17: Requirements

    DF5200HD-DN/IR Requirements Ambient Conditions The device is designed for both indoor and outdoor use. However, note that unfavorable local conditions may shorten the lifetime of the product and may cause malfunctions or damages. ➡ Do not install/operate the device in places •...

  • Page 18: Power Supply

    DF5200HD-DN/IR Power Supply The device is operated via Power over Ethernet (PoE, Class 0) and is com- patible with all IEEE 802.3af compliant Power Sourcing Equipment (PSE).  WARNING Personal injury from electrical shock as well as property damage caused by lightning strikes, over-voltages (electrical surges) and electromagnetic interferences Danger of death or serious injury as well as damage to the device or malfunctions ➡...

  • Page 19: Maintenance

    DF5200HD-DN/IR Maintenance The device may only be opened by qualified personnel for commission- ing, inspection, maintenance and repair. Cleaning If it is necessary to clean the device, observe the following notes: NOTICE Damage to the surface of the device ➡ Clean the housing (outside) with a soft, dry and antistatic cloth.

  • Page 20: Installation And Commissioning

    DF5200HD-DN/IR 8 Installation and Commissioning The installation and commissioning of the device may only be carried out by qualified personnel.  WARNING Falling device Danger of death or serious injury ➡ Observe the manufacturer’s instructions about the maximum adequate carrying capacity of the supporting structure.
  • Page 21 DF5200HD-DN/IR ❶ Fig. 1 ➡ Remove the paper backing from the self-adhesive gasket. ➡ Adhere the gasket to the back of the outdoor wall mount bracket while ensuring that the gasket is aligned as illustrated in Fig. 1. www.dallmeier.com...
  • Page 22 DF5200HD-DN/IR ❷ Fig. 2 ➡ Attach the provided IR lens hood to the sunshield as illustrated in Fig. 2 and Fig. 3. www.dallmeier.com...
  • Page 23 DF5200HD-DN/IR Fig. 3 The IR lens hood helps to prevent unwanted infrared (IR) light from reflecting back onto the camera during activation of the built-in IR-LEDs and, thus, to eliminate the so-called halo effect and other undesirable effects that may lead to blurry/foggy images.
  • Page 24 DF5200HD-DN/IR ❸ Fig. 4 Pre-assembled Cat.5e S/UTP patch cable terminated with RJ45 (8P8C) modular plug (male connector) Hexagon socket head cap screw (fully threaded, DIN 912 / ISO 4762, M8 × 12, for hex key size: 6 mm) Hex key L-wrench (size: 6 mm)
  • Page 25 DF5200HD-DN/IR Fig. 5 ➡ Run the pre-assembled RJ45 patch cable through the outdoor wall mount bracket. ➡ Assemble the camera housing to the outdoor wall mount bracket as illustrated in Fig. 4 and Fig. 5. ➡ Tighten the hexagon socket head cap screw with the hex key www.dallmeier.com...
  • Page 26 DF5200HD-DN/IR ❹ ➡ Connect the pre-assembled RJ45 patch cable of the camera (Fig. 5 - ) to an IEEE 802.3af compliant PoE switch or PoE injector (midspan device) in your network. There are different ways to connect the camera to your network: •...
  • Page 27 DF5200HD-DN/IR Fig. 8 NOTICE Damage to RJ45 plugs/jacks caused by moisture, dust and dirt If using the provided “Cat.5e RJ45 inline coupler STP” (Fig. 6 and Fig. 8) or the provided “E-DAT modul Cat.6 8(8) jack, T568A” (Fig. 7), the cable/connector transitions have to be wrapped with a self-amalgam- ating tape in order to avoid damage to the RJ45 plugs/jacks caused by moisture, dust and dirt.
  • Page 28 DF5200HD-DN/IR ❺ Fig. 9 4× Chipboard screw Ø 5 × 40 mm (partly threaded, pan head, 6-lobe drive/Torx, T25) 4× Plain washer (VA, DIN 9021 / ISO 7093, inner diameter: 5.3 mm) 4× Expansion nylon plug S6 (drill hole diameter: 6 mm, min. drill hole depth: 40 mm, anchor length: 30 mm)
  • Page 29 DF5200HD-DN/IR NOTICE Damage to the device due to water penetration or other environ- mental influences ➡ Check whether the provided gasket is properly adhered to the outdoor wall mount bracket (as illustrated in Fig. 1). ➡ Protect the device from direct influence of weather conditions (rainfall, direct sunlight, etc.). • Always use a protected installation site for outdoor installations (e.g.
  • Page 30 DF5200HD-DN/IR ❻ ➡ Connect your PoE switch or PoE injector (midspan device) to the mains socket and switch it on. ➡ Establish an Ethernet connection to the camera with a web browser (see chapter “Connection and Login” on page 34).
  • Page 31 DF5200HD-DN/IR Fig. 12 Detailed descriptions of the camera configuration (such as zoom, focus and IR illumination settings) can be found in separate docu- mentations that are available on www.dallmeier.com. www.dallmeier.com...

  • Page 32: Front View Of Camera

    DF5200HD-DN/IR Front View of Camera Fig. 13 Motor-driven P-Iris megapixel varifocal lens Semi-covert 850 nm high-power LED for homogeneous IR illumination Ambient light sensor Integrated microphone www.dallmeier.com...

  • Page 33: Wire Color Code For Pre-Assembled Patch Cable

    DF5200HD-DN/IR 10 Wire Color Code for Pre-assembled Patch Cable Fig. 14 Pre-assembled Cat.5e S/UTP patch cable terminated with RJ45 (8P8C) modular plug (male connector) Pin No. Pair Color Orange Black Blue White Green Yellow Brown www.dallmeier.com...

  • Page 34: Connection And Login

    DF5200HD-DN/IR 11 Connection and Login The configuration of the device is carried out with a PC and web browser over the local area network (LAN). Alternatively, the client PC can be directly connected to the device via an Ethernet crossover cable (PoE injector required).

  • Page 35: Connection

    DF5200HD-DN/IR Connection The factory default IP address of the device is: 192.168.2.28 ➡ Ensure that your PC/web browser can establish a connection to the device via the Ethernet (if necessary, contact your network administra- tor for more information and assistance).

  • Page 36: Login

    ➡ Configure all required settings (such as zoom and focus). ➡ Finally, click “LOGOUT” to log out of the device. Detailed descriptions of the camera configuration (such as zoom, focus and IR illumination settings) can be found in separate docu- mentations that are available on www.dallmeier.com. www.dallmeier.com...
  • Page 37 DF5200HD-DN/IR www.dallmeier.com...

  • Page 38: Technical Specifications

    DF5200HD-DN/IR 12 Technical Specifications Connections/Interfaces Power & Ethernet 1× Pre-assembled Cat.5e S/UTP patch cable terminated with RJ45 (8P8C) modular plug (male connector): • 10BASE-T • 100BASE-TX • 1000BASE-T • PoE (IEEE 802.3af) IR Illumination Type Semi-covert 850 nm high power LEDs IR intensity...
  • Page 39 DF5200HD-DN/IR Mechanical Data Adjustment 2-axis (pan/tilt) Color White IP rating IP66 Dimensions See chapter “Dimensions” on page 40. Weight Approx. 2 kg (4.41 Ibs) Environmental Conditions Suitable Indoor and outdoor installation sites Operating −40 °C to +50 °C (−40 °F to 122 °F), temperature minimum start-up temperature: −30 °C (−22 °F) Relative humidity 0% – 90% RH, non-condensing...

  • Page 40: Dimensions

    DF5200HD-DN/IR 13 Dimensions 362 mm (14.25") 229 mm (9.02") 233 mm (9.17") 99 mm (3.90") 71 mm (2.80") www.dallmeier.com...
  • Page 44 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 8700-0 · Fax +49 941 8700-180 www.dallmeier.com · info@dallmeier.com...
