panomera® S4/8

INSTALLATION OF A PANOMERA® AIR BLAST KIT ON A PANOMERA® S4/8

V1.4.0

Replacing the sealing rubber on a

Panomera® S4/8

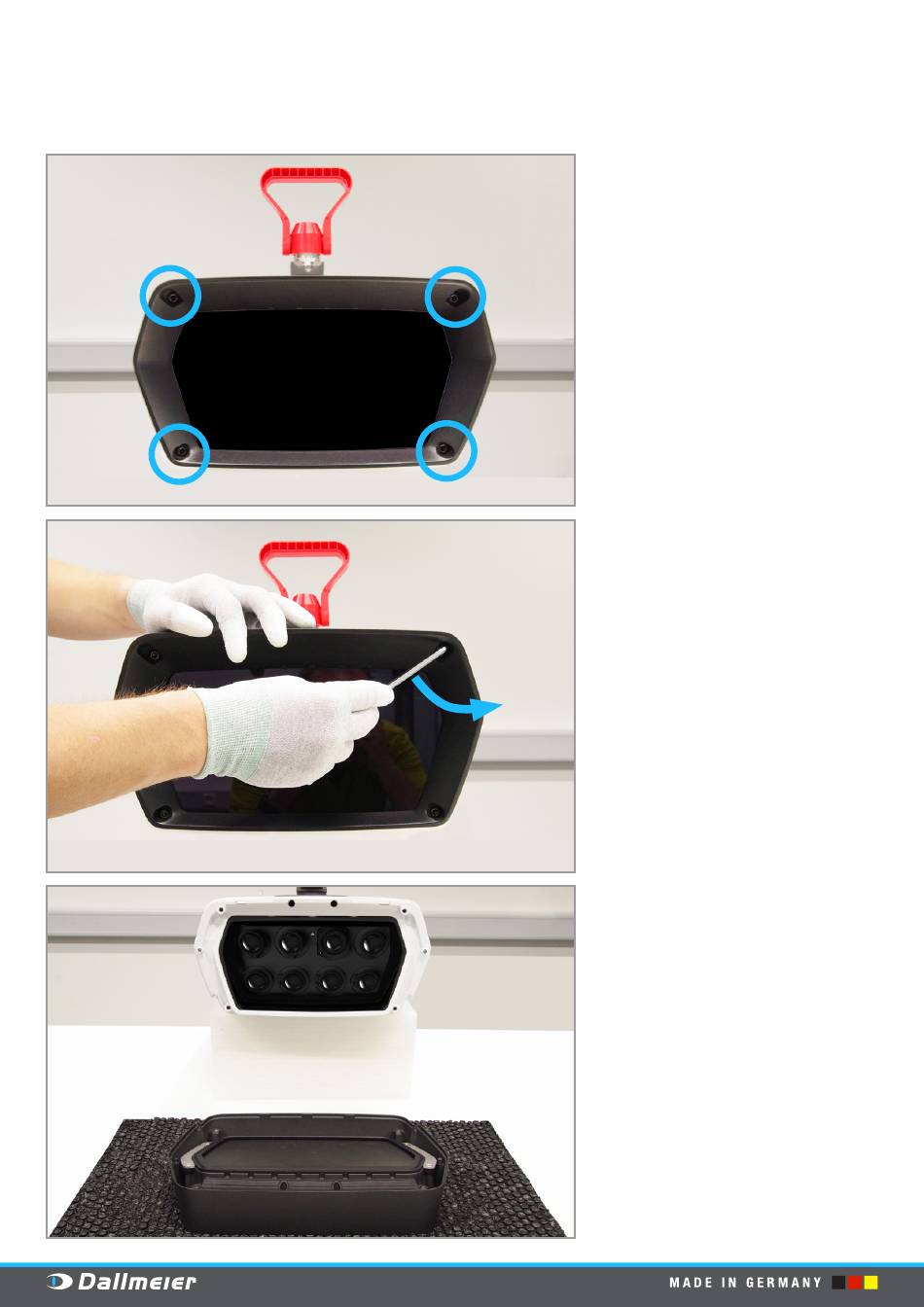

Loosen the four front screws of

▶

the camera cover counterclockwise

using an Allen key (5).

NOTE

Wear gloves for disassembly to protect

camera glass and lenses.

Remove the camera cover from the

▶

housing and place it on a soft surface.

2023-06-13

1/12

Need help?

Do you have a question about the PANOMERA S4 and is the answer not in the manual?

Questions and answers

Summary of Contents for dallmeier PANOMERA S4

Page 1 Allen key (5). NOTE Wear gloves for disassembly to protect camera glass and lenses. Remove the camera cover from the ▶ housing and place it on a soft surface. © 2023 Dallmeier electronic V1.4.0 2023-06-13 1/12...
Page 2 INSTALLATION OF A PANOMERA® AIR BLAST KIT ON A PANOMERA® S4/8 Loosen and remove the four screws of ▶ the pane holder with an Allen key (2.5). Remove the two metal brackets... ▶ ...and carefully lift the camera glass out of the frame. © 2023 Dallmeier electronic V1.4.0 2023-06-13 2/12...
Page 3 ...and carefully pull it off the frame. Then insert the new sealing rubber ▶ into the frame. Make sure that the nipple is inserted ▶ into the hole of the frame on one side first. © 2023 Dallmeier electronic V1.4.0 2023-06-13 3/12...
Page 4 Then press the bars of the sealing ▶ rubber into the frame until they are level with the frame. Make sure that the sealing rubber is ▶ evenly and firmly seated in the frame. © 2023 Dallmeier electronic V1.4.0 2023-06-13 4/12...
Page 5 Now reinsert the camera glass. ▶ Reassemble the two metal holders ▶ clockwise using an Allen key (2.5). Make sure that all four screws are ▶ tightened. NOTE To avoid device stresses, tighten the screws crosswise. © 2023 Dallmeier electronic V1.4.0 2023-06-13 5/12...
Page 6 Retighten the screws clockwise ▶ with a torque wrench (5) to 4 Nm. NOTE To avoid device stresses, tighten the screws crosswise. 4 Nm The camera is now ready for ▶ mounting the Air Blast Kit. © 2023 Dallmeier electronic V1.4.0 2023-06-13 6/12...
Page 7 INSTALLATION OF A PANOMERA® AIR BLAST KIT ON A PANOMERA® S4/8 Preparing Panomera® S4/8 Press down the safety pin of the ▶ locking ring. Remove the locking ring. ▶ Loosen the screws of the ▶ Mountera® Plug counterclockwise using an Allen key (5). © 2023 Dallmeier electronic V1.4.0 2023-06-13 7/12...
Page 8 INSTALLATION OF A PANOMERA® AIR BLAST KIT ON A PANOMERA® S4/8 Remove the Mountera® Plug. ▶ Loosen the screw of the cover ▶ system at the back of the housing. Pull the cover system back and ▶ press the guide bars together. © 2023 Dallmeier electronic V1.4.0 2023-06-13 8/12...
Page 9 INSTALLATION OF A PANOMERA® AIR BLAST KIT ON A PANOMERA® S4/8 Remove the cover system from ▶ the housing. Loosen and remove the screws ▶ of the housing cover. Lift off the housing cover. ▶ © 2023 Dallmeier electronic V1.4.0 2023-06-13 9/12...
Page 10 Insert the two connectors at the ▶ connection points and tighten them clockwise. Insert the coupling and tighten it. ▶ ATTENTION Be sure to insert and tighten vertically to avoid damage to the thread. © 2023 Dallmeier electronic V1.4.0 2023-06-13 10/12...
Page 11 ATTENTION The rubber nose of the sealing ring should rest level on the coupling. Put the camera cover back on ▶ the camera and tighten the screws clockwise. © 2023 Dallmeier electronic V1.4.0 2023-06-13 11/12...
Page 12 Insert and tighten the connector for ▶ the air hose to the compressor. NOTE Select an angle or vertical connection that you would like to use on site for this purpose. Alternative © 2023 Dallmeier electronic V1.4.0 2023-06-13 12/12...
