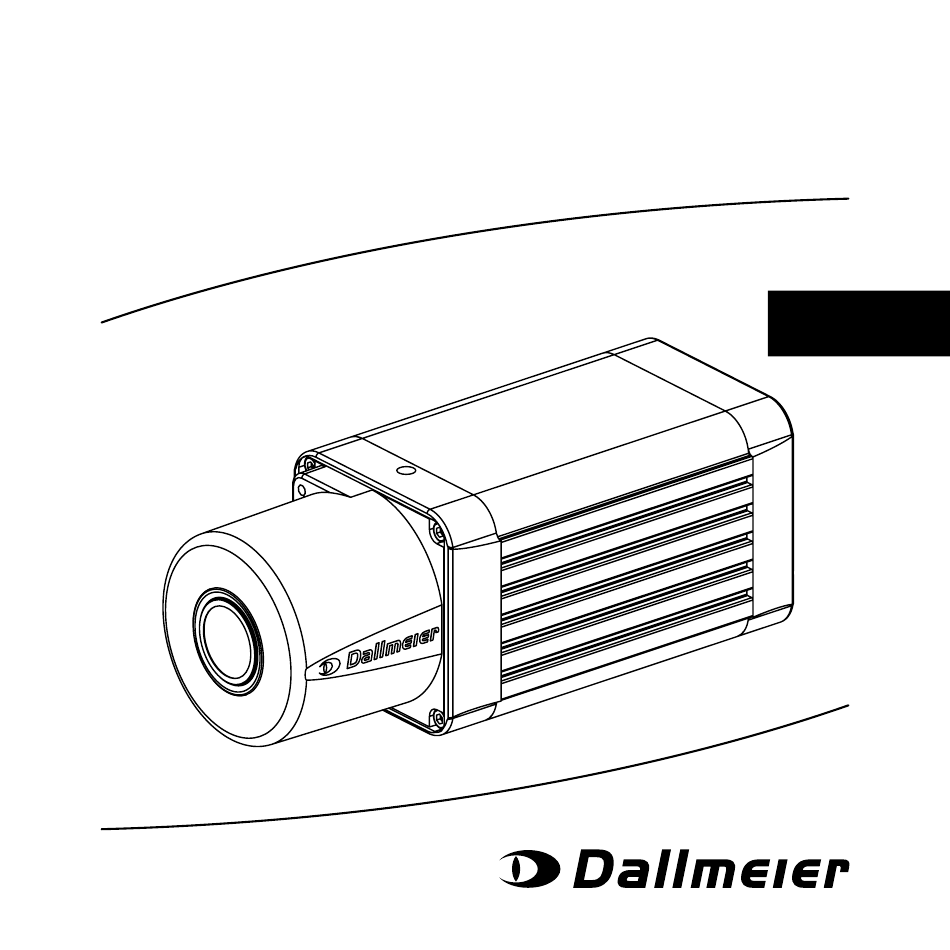

- Page 1 DF4820HD-DN Commissioning English 004989 / 2.0.2 / 2017-03-28...
- Page 2 SDHC of SD-3C, LLC headquartered in North Hollywood, California, USA. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the com- plete identification of third-party trademarks and indication of the respective holder of rights.
-
Page 3: Table Of Contents
Commissioning DF4820HD-DN Contents 1 Validity 2 Documents This Document Other Applicable Documents 3 Typographical Conventions 4 Safety Instructions 5 General Notes Scope of Delivery Transportation and Packaging Warranty Approvals/Certifications Appropriate Use Operation 6 Requirements Ambient Conditions Power Supply 7 Maintenance... -
Page 4: Validity
Always follow the instructions, notes and warnings and observe the technical specifications in the product data sheet. Keep all documents in legible condition and in a suitable location for future refer- ence. Regularly check the website www.dallmeier.com for the latest updates on product documentation. www.dallmeier.com... -
Page 5: This Document
Commissioning DF4820HD-DN This Document Commissioning The document “Commissioning” (this document) contains detailed descriptions on installation, connection and commissioning of the device as well as safety instruc- tions and general notes. The target audience of this document is trained system integrators. -
Page 6: Typographical Conventions
DF4820HD-DN Commissioning 3 Typographical Conventions This document may contain various warning words and symbols that indicate potential sources of danger: DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 7 Commissioning DF4820HD-DN For reasons of clarity and readability, various text formatting elements and types of emphasis are used in this documentation: Instructions are indicated by arrows ( ➡ ). ➡ Always carry out instructions one after the other in the sequence described.
-
Page 8: Safety Instructions
• System Components Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components may cause malfunctions, damages and data loss and may result in the loss of warranty. - Page 9 Commissioning DF4820HD-DN • Documentation Read the documents included in the delivery carefully and thoroughly. Always observe the contained instructions, notes and warnings. The product documentation contains several documents which are included in the scope of delivery in a printed form and/or on a digital medium.
- Page 10 DF4820HD-DN Commissioning • Operating Conditions Unfavorable operating conditions may shorten the life of the device and may cause malfunctions, damages and data loss and may result in the loss of war- ranty. Observe the specifications given in the technical data, the operating condition requirements and the maintenance instructions.
-
Page 11: General Notes
Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofessional/im- proper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packaging suf- ficiently protects the device against damage, moisture, heat and cold. -
Page 12: Approvals/Certifications

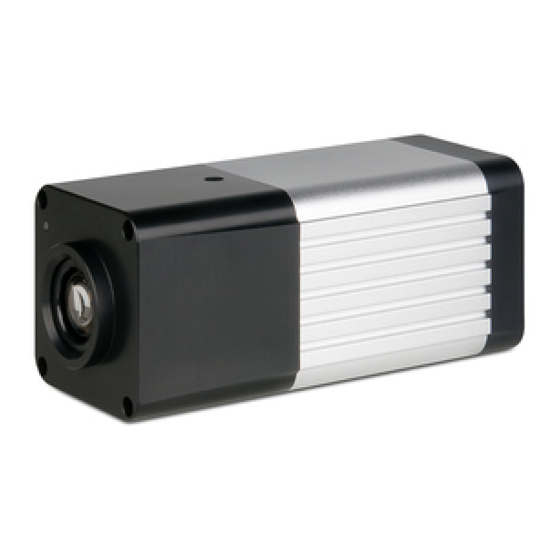

Appropriate Use The DF4820HD-DN is a HD network camera built into a compact and lightweight box housing. Equipped with a 1/4" tripod socket located on the top and bottom side, the cam- era fits all standard brackets with UNC threaded screws. -
Page 13: Operation
Commissioning DF4820HD-DN NOTICE For an outdoor use, the camera must be installed in a proper weather-proof housing. However, note that direct sunlight can cause extremely high tem- peratures inside the housing. In this case, it is absolutely necessary to use a ventilated, temper- ature-controlled weather-proof metal housing and a sunshield, where required. -
Page 14: Requirements
DF4820HD-DN Commissioning 6 Requirements Ambient Conditions Unfavorable local conditions may shorten the lifetime of the product and may cause malfunctions or damages. ➡ Do not install/operate the device in places • with a large amount of dust and dirt, • with steam or oil vapors (e.g. kitchen), •... -
Page 15: Power Supply
Commissioning DF4820HD-DN Power Supply The device can be powered via PoE (Power over Ethernet, Class 0, IEEE 802.3af) or supplied with a separate power supply unit. WARNING Electric shock hazard Danger of death or serious injury ➡ Always disconnect the separate power supply unit from the mains socket (pull out the power plug) before connecting or disconnecting the device. -
Page 16: Maintenance
DF4820HD-DN Commissioning 7 Maintenance The device may only be opened by qualified personnel for inspection, mainte- nance and repair. Cleaning If it is necessary to clean the device, observe the following notes: NOTICE Damage to the surface of the device ➡... -
Page 17: Installation
Commissioning DF4820HD-DN 8 Installation The installation of the device may only be carried out by qualified personnel. CAUTION Falling device Danger of injury ➡ Observe the manufacturer’s instructions about the maximum adequate carrying capacity of the supporting structure. ➡ For the installation of ceiling/wall brackets, always use screws and anchors suitable for your ceiling/wall type: •... - Page 18 DF4820HD-DN Commissioning ❶ ⓐ ⓐ Tripod socket UNC 1/4"-20 for brackets with standard tripod screws www.dallmeier.com...
- Page 19 Commissioning DF4820HD-DN ⓐ ⓐ Tripod socket UNC 1/4"-20 for brackets with standard tripod screws www.dallmeier.com...
- Page 20 DF4820HD-DN Commissioning ❷ ⓐ ⓑ www.dallmeier.com...
- Page 21 Commissioning DF4820HD-DN ⓐ Motor-driven P-Iris varifocal lens ⓑ Ambient light sensor Remote Zoom & Focus Control The camera is equipped with a motor-driven varifocal lens. The focal length (zoom) and the focus are adjusted over the network in the “WebConfig” user interface of the camera (more information can be found in the documentation on camera configuration).
- Page 22 DF4820HD-DN Commissioning ❸ ⓑ ⓐ ⓗ ⓒ ⓖ ⓕ ⓔ ⓓ www.dallmeier.com...
- Page 23 Commissioning DF4820HD-DN ⓐ Analog video output (BNC, CVBS, 1.0 V , 75 Ω) ⓑ Reserved port (not used) ⓒ Power IN (Weidmüller male connector SL 3.50/02/90G) ⓓ Power LED ⓔ Memory card slot (SDHC ⓕ LAN / PoE (RJ45 jack, PoE conformity IEEE 802.3af) ⓖ...
-
Page 24: Pin Assignment
DF4820HD-DN Commissioning 9 Pin Assignment Power + Power − Power IN Weidmüller male connector SL 3.50/02/90G (mating connector Weidmüller BL 3.50/02/180 SN) In order to comply with UL’s requirements, always use a UL-certified, Limited Power Source (LPS) Class 2 power supply unit when operating the device with a separate power supply unit. - Page 25 Commissioning DF4820HD-DN Ring Sleeve Audio OUT / Microphone IN (3.5 mm phone jack, for stereo plug) Audio OUT (mono) Microphone IN (mono) Not used Signal Not used Ring Signal Sleeve Ground Ground Microphone IN (mono) Max. input level: 63 mV (RMS) Input impedance: 10 kΩ...
-
Page 26: Connection And Login
DF4820HD-DN Commissioning 10 Connection and Login The configuration of the device is carried out with a PC and web browser over the local area network (LAN). Alternatively, the PC can be connected directly to the device via an Ethernet crossover cable (if the device is powered via Power over Ethernet, a PoE injec- tor is additionally required). - Page 27 • a more powerful client PC is required if several devices are configured with live video display (and/or live audio output) simultaneously. • a DirectX compatible graphics card and the Dallmeier Live Video ActiveX are not required for the configuration without live video display or live audio output.
-
Page 28: Connection
DF4820HD-DN Commissioning Connection The factory default IP address of the device is: 192.168.2.28 ➡ Ensure that your PC/web browser can establish a connection to the device via Ethernet (if necessary, contact your network administrator for more informa- tion and assistance). -
Page 29: Login
Commissioning DF4820HD-DN Login The graphical user interface (GUI) of the configuration mode is displayed for authenticated and authorized users only. The factory default login credentials of the administrator account are: User name: admin Password: 3 NOTICE Risk of misuse by unauthorized users ➡... -
Page 30: Technical Specifications
DF4820HD-DN Commissioning 11 Technical Specifications Connections/Interfaces Video preview output 1× BNC (CVBS, 1.0 V , 75 Ω) Audio OUT (mono) / 1× 3.5 mm phone jack (for stereo plug) Microphone IN (mono) Microphone IN (mono): Max. input level: 63 mV (RMS) Input impedance: 10 kΩ... - Page 31 Approx. 300 g (0.66 lbs) Environmental Conditions Suitable installation sites Indoor Operating temperature −20 °C to +50 °C (−4 °F to 122 °F) Relative humidity 0 % – 90 % RH, non-condensing For detailed technical specifications and possible updates, see the current product data sheet (available on www.dallmeier.com). www.dallmeier.com...
-
Page 32: Dimensions
DF4820HD-DN Commissioning 12 Dimensions 71 mm (2.8") 176 mm (6.93") 63 mm (2.48") 6 mm (0.24") www.dallmeier.com... - Page 36 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 8700-0 · Fax +49 941 8700-180 www.dallmeier.com · info@dallmeier.com...
