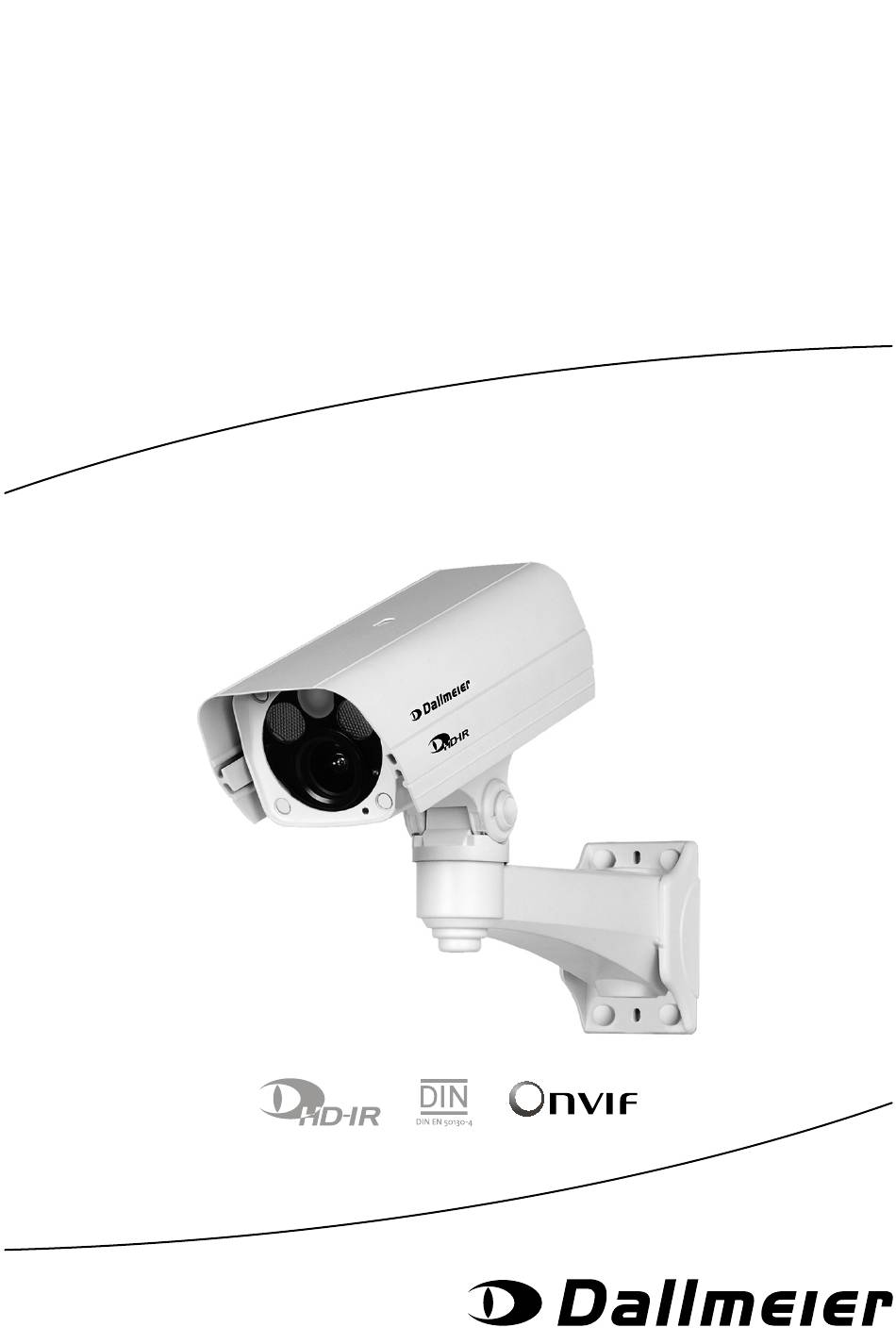

- Page 1 DF4(X)20HD-DN/IR Commissioning English 005517 / 1.0.4 / 2017-03-15...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are...
-
Page 3: Table Of Contents
2 Safety Instructions 3 General Notes Scope of Delivery Transportation and Packaging Warranty Approvals/Certifications Appropriate Use Main Performance Features 4 Requirements General Voltage Supply Maintenance 5 Part Description 6 Installation 7 Connection and Login System Requirements Connection Login 8 Technical Specifications www.dallmeier.com... -
Page 4: Introduction
Safety instructions, general notes and basic technical specifications are additionally provided. The target audience is trained and authorized professionals (installers). Detailed descriptions of the configuration of the unit can be found in separate documentations. www.dallmeier.com... -
Page 5: Typographical Conventions
Expressions in bold/italics generally indicate a control element on the unit (switches or labels) or on its user interface (buttons, menu items). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. www.dallmeier.com... -
Page 6: Safety Instructions
System Components Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components may cause malfunctions, damages and data loss and may result in the loss of warranty. - Page 7 (pull out the power plug). Contact the sales partner responsible for your area. Opening The housing of the unit may only be opened by qualified personnel for commis- sioning, inspection, maintenance and repair. www.dallmeier.com...
- Page 8 1 metre and short exposure times in order to avoid eye damage. Disposal Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the unit from the power supply. Remove all connected devices. Return the unit to your respective sales partner. www.dallmeier.com...
-
Page 9: General Notes
Transportation and Packaging Store the original packaging for transportation at a later date. Dallmeier is not responsible for any damage resulting from unprofessional/improper transporta- tion. The goods should only be shipped in their original packaging. -
Page 10: Appropriate Use
Built into an IP66-rated weather-proof enclosure, the camera is designed for both indoor and for outdoor applications. The camera is operated via Power over Ethernet which allows for an easy, quick and cost-effective cabling and commissioning. www.dallmeier.com... -
Page 11: Main Performance Features
• Alarm notification via e-mail and FTP image upload • Integrated microphone • Voltage supply via PoE (Class 0, IEEE 802.3af) • Weather-proof • Outdoor wall mount bracket (with internal cable routing) • ONVIF compliant • DIN EN 50130-4 compliant www.dallmeier.com... -
Page 12: Requirements
• with corrosive surroundings (e.g. gases, salt water), • with insufficient air ventilation (e.g. closed cabinet). Voltage Supply The device is operated via Power over Ethernet (Class 0). ¼ Ensure that the existing network supports the PoE standard IEEE 802.3af. www.dallmeier.com... -
Page 13: Maintenance
Do not rub acrylic glass with a dry cloth. Do not use common glass cleaners. Avoid excessive rubbing. Dry gently with a clean dry cloth to avoid scratching the surface. www.dallmeier.com... -
Page 14: Part Description

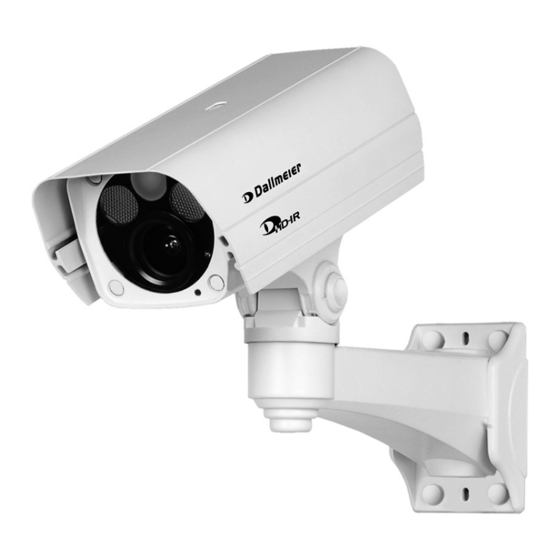

Part Description DF4(X)20HD-DN/IR 5 Part Description ❶ ❷ ❸ Fig. 1 ❶ 2-axis pan/tilt head ❷ Wall mount bracket with internal cable routing ❸ RJ45 plug (Power & Ethernet) www.dallmeier.com... - Page 15 DF4(X)20HD-DN/IR Part Description ❷ ❸ ❶ ❹ Fig. 2 ❶ Lens ❷ 3 × semi-covert 850 nm high-power LED for homogeneous IR illumination ❸ Ambient light sensor ❹ Integrated microphone www.dallmeier.com...
-
Page 16: Installation
❷ Hexagon socket screw M8 × 12 mm (tilt) ¼ Run the Ethernet cable of the camera through the wall mount bracket. ¼ Assemble the camera housing to the wall mount bracket as illustrated in Fig. 3. ¼ Tighten the hexagon socket screw ❶. www.dallmeier.com... - Page 17 • Plastic screw anchors for solid wall material (concrete/brick) • Toggle bolt style anchors for drywall/hollow wall type (plaster) ❷ ❶ Fig. 4 ❶ Torx screw Ø 5 × 40 mm ❷ Plastic screw anchor S6 (drill diameter: 6 mm, hole depth: min. 40 mm) www.dallmeier.com...
- Page 18 ¼ Click Lens control ... in the configuration menu of the camera. The Lens Control dialogue box is displayed. ¼ Adjust the focal length (zoom) and the focus. Detailed descriptions of the configuration of the unit can be found in separate documentations available on www.dallmeier.com. www.dallmeier.com...
-
Page 19: Connection And Login
(128 MB or higher recommended) Sound Sound card or on-board sound chip (min. 16 bit) Ethernet 100 Mbps Web browser Microsoft Internet Explorer (latest version) Software Adobe Flash Player (latest version) JavaScript enabled Microsoft ActiveX enabled ActiveX-based Dallmeier control (latest version) www.dallmeier.com... -
Page 20: Connection
• a more powerful PC is required if several devices are configured with live video display (and/or live audio output) simultaneously. • a DirectX compatible graphics card and the ActiveX-based Dallmeier control are not required for the configuration without live video display or live audio output. -
Page 21: Login
¼ Configure the required settings and finally click LOGOUT. Note that a new login is required after 5 minutes without user action. Detailed descriptions of the configuration of the unit can be found in separate documentations available on www.dallmeier.com. www.dallmeier.com... -
Page 22: Technical Specifications
8 Technical Specifications The following basic technical specifications were valid at the time of this docu- ment’s compilation. Detailed specifications and possible updates can be found in the current prod- uct data sheet on www.dallmeier.com. Video Type 1/2.5" CMOS image sensor... - Page 23 DF4(X)20HD-DN/IR Technical Specifications Dimensions 362 mm (14.27") 229 mm (9.04") 233 mm (9.19") 99 mm (3.89") 71 mm (2.81") www.dallmeier.com...
