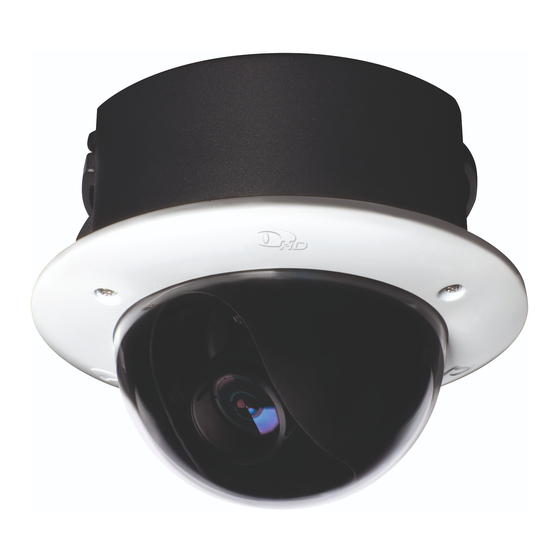

DDF5(X)50HDV-DN
IM
Commissioning
English
007530 | Rev. 2.0.0 | 2019-05-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDF5 50HDV-DN-IM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier DDF5 50HDV-DN-IM Series

Summary of Contents for dallmeier DDF5 50HDV-DN-IM Series

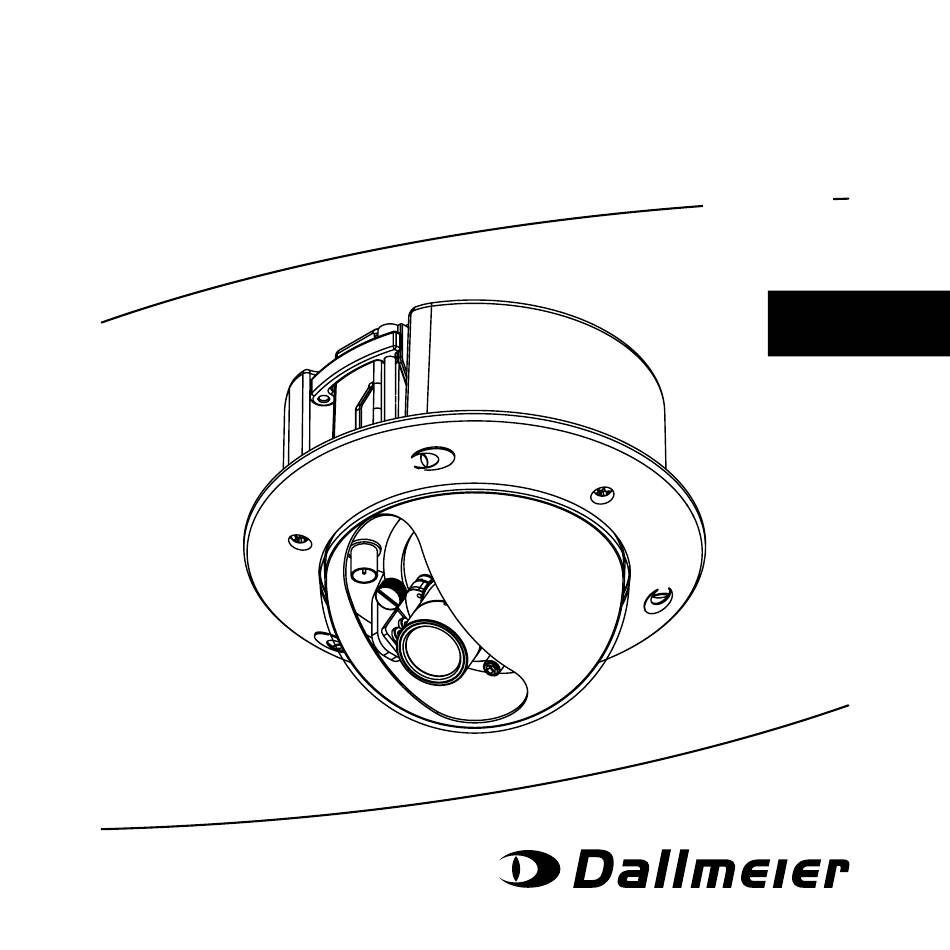

  • Page 1 DDF5(X)50HDV-DN Commissioning English 007530 | Rev. 2.0.0 | 2019-05-22...
  • Page 2 Phillips of Phillips Screw Company headquartered in Burlington, Massachusetts, USA. Third-party trademarks are named for information purposes only. Dallmeier respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.

  • Page 3: Table Of Contents

    Transportation and Packaging Warranty Appropriate Use Operation Approvals/Certifications 6 Requirements Ambient Conditions Power Supply 7 Maintenance, Inspection and Cleaning 8 Installation and Commissioning 9 Interfaces 10 Pin Assignment 11 Inserting a Memory Card 12 Connection, First-Time Access and Login Connection First-Time Access Login 13 Technical Product Specification (Basic Data) 14 Dimensions Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 4: Validity

    Keep all documents in legible condition and in a suitable location for future refer- ence. Regularly check the website www.dallmeier.com for the latest product documen- tation updates. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 5: This Document

    Configuration The document entitled “Configuration” contains detailed information concerning the configuration of the device. The target audience of the document is trained system integrators (installation contractors of video security/surveillance systems). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 6: Typographical Conventions

    NOTICE NOTICE addresses practices not related to physical injury and indicates measures to prevent device and/or property damage due to improper installation, assembly, wiring, operation, configuration or maintenance of the device. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 7 (housing parts, mounting elements, connections/interfaces, etc.) or to control elements of the device’s web-based graphical user interface (menu items, buttons, etc.). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 8: Safety Instructions

    • System Components Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components may cause malfunctions, damage and data loss and may result in the loss of warranty.
  • Page 9 Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product docu- mentation updates. • Condensation If the device is brought from a cold to a warm environment, resulting condensa- tion may cause malfunctions and damage.
  • Page 10 If objects or liquids get into the device, immediately disconnect it from the power supply (pull out the power plug or disconnect the device from the PoE enabled PSE port). Contact the sales partner responsible for your area. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 11 Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the device from the power supply. Remove all connected peripherals. Return the device to the sales partner responsible for your area. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 12: General Notes

    Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofessional or improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packaging suf- ficiently protects the device against damage, moisture, heat and cold.

  • Page 13: Warranty

    The device is exclusively designed for indoor use. An outdoor installation is prohibited and may result in malfunction, damage, data loss and loss of warranty. ➡ Do not install/operate the device in outdoor environments. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 14: Operation

    • The accuracy of the Automatic White Balance (AWB) algorithm depends on the used lighting. Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduction). • Poor lighting can lead to an incorrect white balance. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 15: Approvals/Certifications

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 16: Requirements

    • with improper ambient temperatures, • near sources with strong radiation (e.g. radio transmitters, magnetic fields), • with corrosive surroundings (e.g. gases, salt water), • with insufficient air ventilation (e.g. closed cabinet). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 17: Power Supply

    ➡ Carry out all protective measures for a standard-compliant earthing/grounding of the device in accordance with the cur- rently applicable DIN, VDE and ISO standards in order to ensure the safety of persons (protection against dangerous contact voltages). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 18 DIN, VDE and ISO standards in order to ensure the safety of the device (pro- tection against over-voltages) and its immunity to electromag- netic interferences (EMI). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 19 PoE midspan device) or disconnect the used single-port PoE injector from the power supply before un-mating the jack-plug connection in order to prevent damage to the contacts of the RJ45 connectors by contact erosion. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 20: Maintenance, Inspection And Cleaning

    • Do not use microfiber cleaning cloths. • Avoid excessive rubbing. • To dry the plastic bubble, dab it carefully and gently with a clean, soft, dry and antistatic cloth to avoid scratching the surface. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 22: Installation And Commissioning

    • Plastic screw anchor for use in solid masonry materials (concrete/brick) • Gravity or spring toggle anchor for use in drywall ceilings (plasterboard) Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 23 Commissioning DDF5(X)50HDV-DN-IM ❶ ⓐ Torx screwdriver with hollow point (T20 H) ⓐ Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 24 DDF5(X)50HDV-DN-IM Commissioning ⓐ 3× Tamper-resistant torx screw (Torx-TR 20) ⓐ ➡ Loosen the three tamper-resistant torx screws (Torx-TR 20) of the cover ring using a torx screwdriver with hollow point (T20 H). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 25 Commissioning DDF5(X)50HDV-DN-IM ❷ ➡ Remove the dome cover (cover ring with bubble) from the housing. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 26 DDF5(X)50HDV-DN-IM Commissioning ❸ ⓐ M6 eye bolt ⓑ Cat.5e RJ45 adapter cable ⓒ ⓐ Ceiling clamp (2×) ⓑ ⓒ ➡ Screw an M6 eye bolt onto the bottom side of the housing. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 27 ❹ ⓐ Ø 143 mm ⓑ Ceiling hook ⓑ ⓐ ➡ Cut a circular hole (Ø 143 mm) into the suspended ceiling or ceiling panel. ➡ Screw a ceiling hook into the supporting structure. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 28 1. Cabling “Interfaces” (see page 40) 2. Inserting a Memory Card (see page 44) ➡ Disconnect the pre-assembled Cat.5e RJ45 adapter cable. ➡ Unscrew the three fixing screws of the camera module. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 29 Phillips PH1 Flexible (3×) cable clamp (vinyl coated) (2×) Lock washer (5×) ➡ Remove the fixing screws, toothed lock washers and flexible cable clamps from the camera module. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 30 DDF5(X)50HDV-DN-IM Commissioning PG16 cable gland Rubber cable grommet Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 31 ➡ Carry out the cabling. Scenario 2: Inserting a Memory Card ➡ Insert a suitable memory card into the memory card slot (see chapter “Inserting a Memory Card” on page 44). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 32 3-axis camera gimbal as shown on page 36. ⓐ ⓐ Basic position of ceiling clamps ➡ Insert the housing into the circular cut-out. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 33 Steel safety cable ➡ Attach a suitable safety cable (steel wire rope with two loops) to the M6 eye bolt (use carabiner) and the ceiling hook to properly secure the camera from falling down. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 34 DDF5(X)50HDV-DN-IM Commissioning ❽ ⓐ ⓐ ⓐ M4 locking screw (ceiling clamp) ⓑ Phillips screwdriver ⓑ Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 35 Commissioning DDF5(X)50HDV-DN-IM Locked ceiling clamps ➡ Tighten the M4 locking screw of both ceiling clamps with a Phillips screw- driver until the housing is securely fixed. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 36 DDF5(X)50HDV-DN-IM Commissioning ❾ ⓐ Knurled thumb screw (roll axis) Tilt: Max. ±45° ⓐ ⓐ Roll: Max. ±180° Pan: 45° Max. ±90° Maximum permissible pan, tilt and roll range Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 37 ➡ Adjust the focal length (zoom) and the focus position in the “Lens control” camera dialog. ➡ Repeat the last two steps until the captured scene meets your require- ments. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 38 ➡ Attach the dome cover (cover ring with bubble) back to the housing. NOTICE: Make sure that the ambient light sensor is not covered by the black inner liner (rotate the bubble as required). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 39 Commissioning DDF5(X)50HDV-DN-IM ➡ Tighten the three tamper-resistant torx screws (Torx-TR 20) of the cover ring using a torx screwdriver with hollow point (T20 H). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 40: Interfaces

    DDF5(X)50HDV-DN-IM Commissioning 9 Interfaces ⓐ ⓗ ⓖ ⓕ ⓔ ⓓ ⓑ ⓒ Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 41 ⓖ Power IN (Weidmüller male connector SL 3.50/02/90G) ⓗ Flexible cable fastener (2×) For cabling the interfaces, you have to remove the camera module first (see optional step ❺ on page 28). Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 42: Pin Assignment

    Line OUT (stereo) Left channel Left channel Ring Right channel Right channel Sleeve Ground Ground Audio Line IN (stereo) Input level: max. 2.83 V Input impedance: 29 kΩ Audio Line OUT (stereo) Output level at 10 kΩ load: max. 3.11 V Output impedance: 320 Ω Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 43 (mating connector: Weidmüller BL 3.50/02/180 SN) In order to comply with UL’s requirements, only use a UL certified “Limited Power Source (LPS)” power supply unit when powering the device by an exter- nal DC power supply unit. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 44: Inserting A Memory Card

    DDF5(X)50HDV-DN-IM Commissioning 11 Inserting a Memory Card ⓐ ⓐ microSDXC card (optional) Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 45 ➡ Only use memory cards that have been tested and approved by Dallmeier (failure to do so may result in the loss of warranty). Damage to the device or memory card due to incorrect card insertion ➡...

  • Page 46: Connection, First-Time Access And Login

    11 (Windows 7) Microsoft Edge (Windows 10) Google Chrome Mozilla Firefox (latest available version of each browser) Browser settings JavaScript enabled Ethernet 100 Mbps Sound Sound card or on-board sound chip (min. 16 bit) Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 47: Connection

    ➡ Confirm the input. The connection to the device is then established. After the successful connection to the device and before the very first login, a system security dialog for the first-time access is displayed. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 48: First-Time Access

    ➡ Enter a new password for the default administrator account and confirm your input (the strength of the selected password is displayed during input). ➡ Click “OK”. After the first successful access to the device, the login dialog is displayed. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 49: Login

    After the successful login, the graphical user interface of the configuration mode is displayed. ➡ Configure all required settings (e.g. zoom and focus position). ➡ Finally, click “LOGOUT” to properly log out of the device. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 50: Technical Product Specification (Basic Data)

    • 100BASE-TX • PoE (IEEE 802.3af) Memory card slot 1× (microSDXC compatible) Power IN 1× Weidmüller male connector SL 3.50/02/90G (mating connector: Weidmüller BL 3.50/02/180 SN) Additional Features Ambient light sensor 1× Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 51 Clear (with black inner liner) Vandal-resistant IK protection IK10 protection against external mechanical impacts (up to 20 joules) Color Housing: black Cover ring: white Dimensions Approx. Ø 170 × H 135 mm (Ø 6.7" × H 5.3") Weight Approx. 1200 g (2.6 lb) Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 52 The technical product specification (basic data) in this document is based on the information at the time of this document’s compilation. Detailed information and possible updates can be found in the currently valid product specification on www.dallmeier.com. Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 54: Dimensions

    DDF5(X)50HDV-DN-IM Commissioning 14 Dimensions 170 mm (6.69") 62 mm (2.44") 60 mm (2.36") 142 mm (5.59") 114.60 mm (4.51") 28.80 mm (1.13") 14 mm (0.55") Housing Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 55 Commissioning DDF5(X)50HDV-DN-IM 150 mm (5.91") Cat.5e RJ45 adapter cable with rubber grommet Rev. 2.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 56 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 8700-0 · Fax +49 941 8700-180 www.dallmeier.com · info@dallmeier.com...
