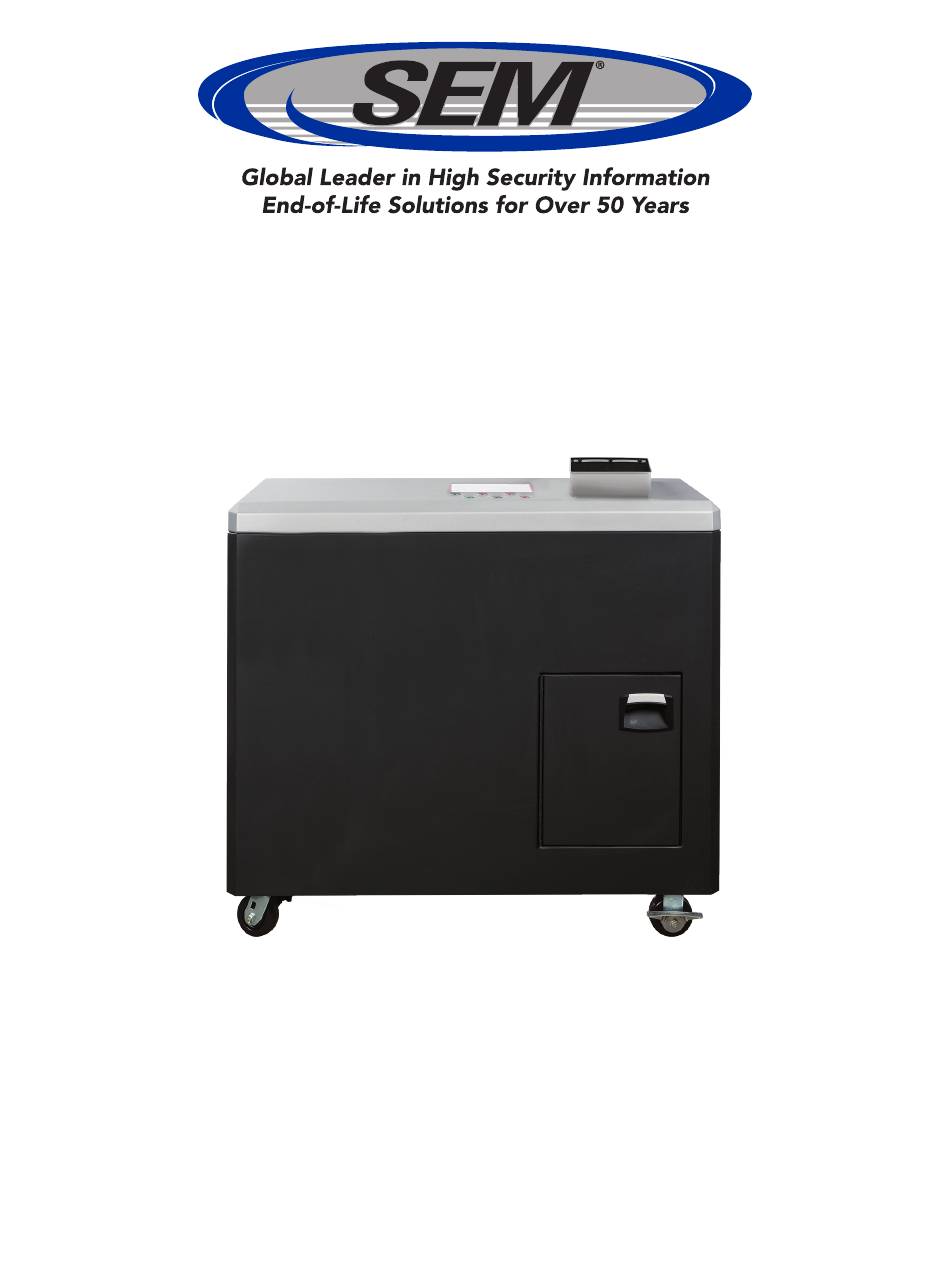

SEM Models 0300/0315
Operation and Maintenance Manual
MAN-023 Rev. 1 | Created 2-24-2020 | ECN-00520
This manual covers all Model 0300, Model 0303, Model 0315 configurations
For service, parts, and customer support, contact us:
SECURITY ENGINEERED MACHINERY
5 Walkup Drive | Westborough, MA 01581
508-366-1488 | info@semshred.com
www.semshred.com
Advertisement
Table of Contents
Related Manuals for SEM 0300
Summary of Contents for SEM 0300
- Page 1 SEM Models 0300/0315 Operation and Maintenance Manual MAN-023 Rev. 1 | Created 2-24-2020 | ECN-00520 This manual covers all Model 0300, Model 0303, Model 0315 configurations For service, parts, and customer support, contact us: SECURITY ENGINEERED MACHINERY 5 Walkup Drive | Westborough, MA 01581 508-366-1488 | info@semshred.com...
-
Page 3: Table Of Contents
Contents Disclaimer ....................... 1 Safety ........................2 About Your Shredder ....................3 Overview and Intended Use — 0300 ..............3 Overview and Intended Use –– 0315 ..............3 Unacceptable Media ....................4 Uncrating and Installation ..................5 Uncrating ........................ 5 General Installation .................... - Page 4 Model 0300/0315 Operation and Maintenance Manual SEM Model 0300/0315 HDD Shredder SEM Model 0300/0315 HDD/SSD Combo Shredder SEM | www.semshred.com...
-
Page 5: Disclaimer
Model 0300/0315 Operation and Maintenance Manual Disclaimer Every care has been taken by the staff of SEM in compilation of the data contained in all training and informational materials (“collateral”) and in verification of its accuracy when published; however, the content of this collateral is subject to change without notice due to factors outside the control of SEM and this collateral should therefore be used as a guide only. -
Page 6: Safety
Model 0300/0315 Operation and Maintenance Manual Safety Read and understand instruction manual and be aware of all warning stickers. Make sure that all guards and access panels are in place at all times, EXCEPT when the power is locked off for maintenance work or cleaning. -
