Commissioning
Full High-Definition High-Speed IP Network PTZ Dome Camera
DDZ4010-YY/HS/HD
DDZ4020-YY/HS/HD
004056 / Rev. 1.0.0 / 2012-08-09
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOMERA DDZ4010-IM/HS/HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier DOMERA DDZ4010-IM/HS/HD

Summary of Contents for dallmeier DOMERA DDZ4010-IM/HS/HD

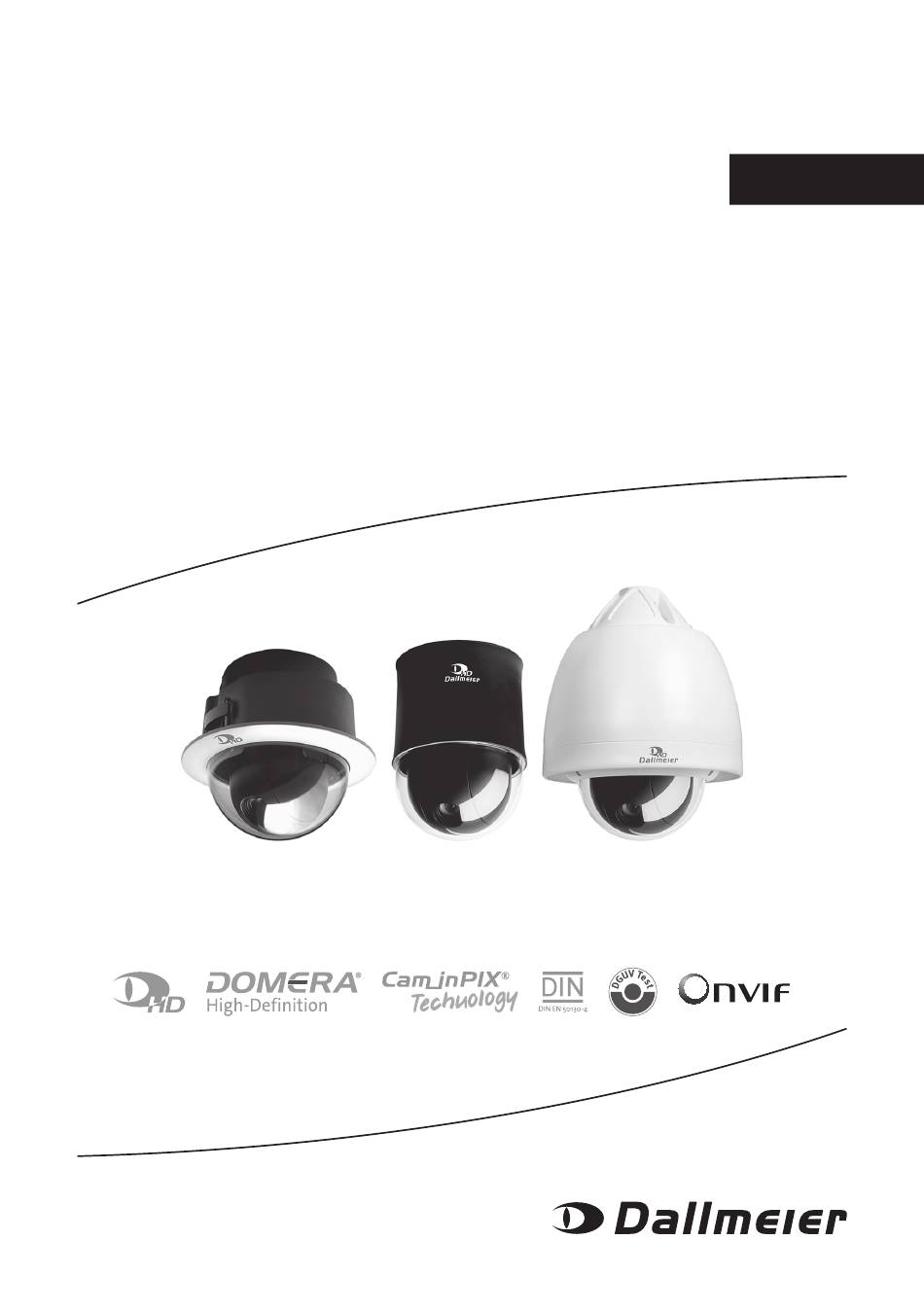

  • Page 1 Commissioning English Full High-Definition High-Speed IP Network PTZ Dome Camera DDZ4010-YY/HS/HD DDZ4020-YY/HS/HD 004056 / Rev. 1.0.0 / 2012-08-09...
  • Page 2 DDZ40(10)(20)-YY/HS/HD www.dallmeier.com...
  • Page 3 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of thirdparty trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.

  • Page 4: Table Of Contents

    Warranty Approvals/Certifications Requirements General Power Supply Outdoor Operation Views and Connection Assignment In-ceiling Mount Variant Surface Mount Variant Weather-proof Variant Terminal Area (IP I/O Interface) PTZ Dome Camera Basic Settings Dome ID Signal Transmission Video Standard Baud Rate Protocol www.dallmeier.com...
  • Page 5 DDZ40(10)(20)-YY/HS/HD Table of Contents Installation and Commissioning In-ceiling Mount Variant Surface Mount Variant Weather-proof Variant Connection and Login System Requirements Connection Login Maintenance Pin Assignment 10.1 Terminal Area 10.2 Weather-proof Housing Technical Specifications Technical Drawings www.dallmeier.com...

  • Page 6: Introduction

    The document entitled “Commissioning” contains the most impor- tant steps for the connection and commissioning of the respective devices. In addition, safety instructions, general notes and basic technical specifications are provided. The target audience is trained and authorized professionals (in- stallers). www.dallmeier.com...

  • Page 7: Typographical Conventions

    Expressions in bold/italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recom- mendations. www.dallmeier.com...
  • Page 8 WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAuTIoN CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Notice NOTICE indicates practices for preventing property damage, incorrect configurations or faulty operations. www.dallmeier.com...

  • Page 9: Safety Instructions

    Modifications Do not make any modifications to the hardware or software that have not been tested and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damages and data loss and may result in the loss of warranty.
  • Page 10 Unfavourable operating conditions may shorten the life of the units and may cause malfunctions, damages and data loss and may result in the loss of warranty. Observe the specifications given in the technical data, the operat- ing condition requirements and the maintenance instructions. www.dallmeier.com...
  • Page 11 Disposal Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the units from the power supply. Remove all connected devices. Return the units to your respective sales partner. www.dallmeier.com...

  • Page 12: General Notes

    Transportation and Packaging Store the original packaging for transportation at a later date. Dallmeier is not responsible for damage resulting from unprofes- sional/improper transportation. The goods should only be shipped in their original packaging. If the original packaging is no longer available, ensure that the packaging used sufficiently protects the units against damage, moisture, heat and cold.

  • Page 13: Appropriate Use

    All of the device variants mentioned above can be powered via PoE+ (Power over Ethernet, IEEE 802.3at) or supplied with 24/28 V AC. Note that the built-in fan and heater of the weather-proof variants must be separately supplied with 24 V AC (max. 3 A). www.dallmeier.com...

  • Page 14: Performance Features

    • 248 programmable preset positions ICR = IR Cut Filter Removable Provides enhanced colour reproduction and detail resolution even in scenes with a wide range of contrast and strong backlighting. Depending on the set resolution Function is in preparation. Dallmeier Video Protocol www.dallmeier.com...

  • Page 15: Warranty

    The terms and conditions valid at the signing of the contract shall apply. Approvals/Certifications The following approvals/certifications were valid for all devices described in this document at the time of this document’s compila- tion. Visit www.dallmeier.com for possible updates. • CE • FCC • UL • ACA • UVV-Kassen (DGUV Test) •...

  • Page 16: Requirements

     Ensure that the existing network supports the PoE standard IEEE 802.3at if you want to power the devices via Power over Ethernet. Note that the built-in fan and heater of the weather-proof variants must be separately supplied with 24 V AC (max. 3 A). www.dallmeier.com...

  • Page 17: Outdoor

    • The accuracy of the automatic white balance (AWB) algo- rithm depends on the lighting used. Mixed light (consisting of artificial light and daylight) may cause colour distortions (inaccurate colour reproduction). • Poor lighting can lead to a faulty white balance. www.dallmeier.com...

  • Page 18: Views And Connection Assignment

    Views and Connection Assignment DDZ40(10)(20)-YY/HS/HD Views and Connection Assignment In-ceiling Mount Variant Housing (BackBox) Cable entry with IP I/O interface Ventilation slots Ceiling clamp Ceiling clamp Trim ring with bubble Fig. 5-1 Housing (side view) www.dallmeier.com...
  • Page 19 Cover plate for cable entry Cable entry Housing (BackBox) with IP I/O interface Slot for locking tab (trim ring) Ventilation slots Slot for locking tab (trim ring) Ceiling clamp Trim ring with bubble Locking tab Fig. 5-2 Housing (open) www.dallmeier.com...
  • Page 20 Thread for (plug-in module) securing screw (plug-in module) Slot for locking tab (trim ring) Terminal area (IP I/O interface) Connector for Slot for locking tab plug-in module (trim ring) Fig. 5-3 Housing (inside view without plug-in module) www.dallmeier.com...
  • Page 21 PTZ dome camera USB / SDHC port Plug-in module for PTZ dome camera Connector for PTZ dome camera Thread for securing screw M4 locking screw (PTZ dome camera) (ceiling clamp) Fig. 5-4 Housing (inside view with built-in plug-in module) www.dallmeier.com...

  • Page 22: Surface Mount Variant

    Views and Connection Assignment DDZ40(10)(20)-YY/HS/HD Surface Mount Variant Cable entry Housing base (BackPlate) with IP I/O interface Ventilation slots Securing screw (housing ring) Housing ring with bubble Ventilation slot Fig. 5-5 Housing (side view) www.dallmeier.com...
  • Page 23 (IP I/O interface) Thread for housing ring Locking clip for Locking clip for PTZ dome camera PTZ dome camera Connector for Ventilation slots plug-in module Thread for securing screw (PTZ dome camera) Fig. 5-6 Housing base (without plug-in module) www.dallmeier.com...
  • Page 24 Mounting hole for 4×60 mm screw 4×60 mm screw Thread for Terminal area securing screw (IP I/O interface) (plug-in module) Mounting hole for Connector for 4×60 mm screw plug-in module Fig. 5-7 Housing base (inside view without plug-in module) www.dallmeier.com...
  • Page 25 PTZ dome camera Locking clip for Locking clip for PTZ dome camera PTZ dome camera USB / SDHC port Connector for PTZ dome camera Thread for securing screw (PTZ dome camera) Fig. 5-8 Housing base (inside view with built-in plug-in module) www.dallmeier.com...

  • Page 26: Weather-Proof Variant

    Views and Connection Assignment DDZ40(10)(20)-YY/HS/HD Weather-proof Variant Mounting flange Housing PTZ dome camera Housing cover with bubble Fig. 5-9 Sunshield Fig. 5-10 www.dallmeier.com...

  • Page 27: Terminal Area (Ip I/O Interface)

    GP In/Out 24/28 V AC LAN / PoE RS485 Fig. 5-11 For pinout information, see chapter “Pin Assignment” on page 59. PTZ Dome Camera For Surface Mount Housing (SM) Lens M3 securing screw Slot for locking clip Fig. 5-12 www.dallmeier.com...
  • Page 28 Views and Connection Assignment DDZ40(10)(20)-YY/HS/HD For In-ceiling Mount (IM) and Weather-proof Housing (WM) Lens M3 securing screw Locking clip Fig. 5-13 www.dallmeier.com...
  • Page 29 DDZ40(10)(20)-YY/HS/HD Views and Connection Assignment Rotary/DIP Switches Male connector Rotary switch: Dome ID (camera address 1 – 999) DIP switch: Signal transmission, Video standard, Baud rate, Protocol Fig. 5-14 PTZ dome camera (bottom view) www.dallmeier.com...

  • Page 30: Basic Settings

    To be able to control and configure the PTZ dome camera via the IP I/O interface, the Dome ID = 1 has to be set.  Set the Dome ID with the rotary switches S1 – S3 (see Table 6-1 and Fig. 5-14). www.dallmeier.com...

  • Page 31: Signal Transmission

    IP based applications.  If required, set the correct type of signal transmission with the DIP switch S4 (see Table 6-2 and Fig. 5-14). Signal transmission Analogue Reserved IP based Table 6-2 Signal transmission www.dallmeier.com...

  • Page 32: Video Standard

    IP I/O interface via WebConfig.  If required, set the video standard (as stated in the order) with the DIP switch S5 (see Table 6-3 and Fig. 5-14). Video standard NTSC Baud rate Table 6-3 Video standard www.dallmeier.com...

  • Page 33: Baud Rate

     If required, set the baud rate with the DIP switch S5 (see Table 6-4 and Fig. 5-14). Baud rate 2400 Bd 4800 Bd 9600 Bd 19200 Bd 38400 Bd 57600 Bd 115200 Bd 230400 Bd Table 6-4 Baud rate Default setting (recommended) www.dallmeier.com...

  • Page 34: Protocol

    IP I/O interface, the protocol type Auto (No-Parity) has to be set.  If required, set the protocol type with the DIP switch S6 (see Table 6-5 and Fig. 5-14). Protocol AuTo (No-Parity) AUTO (Even-Parity) DCCP RESET Table 6-5 Protocol Dallmeier Camera Communication Protocol www.dallmeier.com...

  • Page 35: Installation And Commissioning

    UL-certified, Limited Power Source (LPS) Class 2 power supply unit when operating the devices with 24/28 V AC. Notice Ensure the correct settings of the rotary and DIP switches before installing the PTZ dome camera (see chapter “Basic Settings” on page 30). www.dallmeier.com...

  • Page 36: In-Ceiling Mount Variant

     Turn the trim ring counter-clockwise as far as it will go.  Remove the trim ring.  Loosen both securing screws of the plug-in module.  Carefully unplug the plug-in module (without using force). Plug-in module Trim ring Securing screw Securing screw Fig. 7-1 www.dallmeier.com...
  • Page 37 Lens protection cap Adhesive tape Fig. 7-2 Step 2  Loosen the M4 screw eye bolt on the cover plate.  Turn the cover plate counter-clockwise as far as it will go. M4 screw eye bolt Cover plate Fig. 7-3 www.dallmeier.com...
  • Page 38  Run the required cables suspended from the ceiling through the cable entry.  Connect the cables to the connectors of the terminal area (see chapter “Pin Assignment” on page 59). www.dallmeier.com...
  • Page 39 (see Fig. 7-4).  Turn the cover plate clockwise as far as it will go.  Tighten the M4 screw eye bolt on the cover plate.  Ensure that the cover plate is securely fixed. www.dallmeier.com...
  • Page 40  Screw a ceiling hook on the supporting structure.  Insert the housing into the circular recess.  Attach the safety wire to the M4 screw eye bolt (use a carabi- ner) and the ceiling hook (see Fig. 7-7). www.dallmeier.com...
  • Page 41 Supporting structure Safety wire Carabiner Fig. 7-7 Step 5  Tighten the M4 locking screw of both ceiling clamps with a Phillips screwdriver until the housing is fixed. M4 locking screw M4 locking screw (ceiling clamp) (ceiling clamp) Fig. 7-8 www.dallmeier.com...
  • Page 42 Installation and Commissioning DDZ40(10)(20)-YY/HS/HD Ceiling clamp Ceiling clamp Suspended ceiling Phillips screwdriver Fig. 7-9 Locked ceiling clamp Locked ceiling clamp Fig. 7-10 www.dallmeier.com...
  • Page 43 Fig. 7-11 Step 7  Carefully insert the PTZ dome camera into the housing until it clicks into place (ensure the correct alignment of the connec- tors).  Tighten both securing screws of the PTZ dome camera (see Fig. 7-12). www.dallmeier.com...
  • Page 44  Assemble the trim ring to the housing. For this purpose, fit the 3 locking tabs of the trim ring into the appropriate slots of the housing and then tighten the trim ring in clockwise direction (see Fig. 7-13). www.dallmeier.com...
  • Page 45 Installation and Commissioning Trim ring Slot Locking tab Trim ring Fig. 7-13 Step 9  Connect the power supply unit or the PoE switch to the mains socket. The device starts booting and is ready for operation after a short self-test. www.dallmeier.com...

  • Page 46: Surface Mount Variant

    • Hexagon socket screw key (wrench size 1.3) Step 1  Loosen the securing screw of the housing ring.  Unscrew the housing ring (counter-clockwise).  Loosen both securing screws of the plug-in module.  Carefully unplug the plug-in module (without using force). www.dallmeier.com...
  • Page 47 DDZ40(10)(20)-YY/HS/HD Installation and Commissioning Housing ring Securing screw (housing ring): Hexagon socket set screw with cone point DIN 914 M2.5×4 Plug-in module Securing screw Securing screw Fig. 7-14 www.dallmeier.com...
  • Page 48  Run the required cables through the cable entry of the housing base.  Connect the cables to the connectors of the terminal area (see chapter “Pin Assignment” on page 59).  Mount the housing base with 3 screws to the ceiling. www.dallmeier.com...
  • Page 49 Fig. 7-16 Step 3  Carefully insert the plug-in module into the housing base until it clicks into place (ensure the correct alignment of the connec- tors).  Tighten both securing screws of the plug-in module (see Fig. 7-17). www.dallmeier.com...
  • Page 50 Fig. 7-17 Step 4  Carefully insert the PTZ dome camera into the housing base until it clicks into place (ensure the correct alignment of the connectors).  Tighten both securing screws of the PTZ dome camera (see Fig. 7-18). www.dallmeier.com...
  • Page 51 DDZ40(10)(20)-YY/HS/HD Installation and Commissioning Securing screw Securing screw Fig. 7-18 Step 5  Screw the housing ring onto the housing base.  Tighten the securing screw of the housing ring (see Fig. 7-19). www.dallmeier.com...
  • Page 52 DIN 914 M2.5×4 Fig. 7-19 Step 6  Connect the power supply unit or the PoE switch to the mains socket. The device starts booting and is ready for operation after a short self-test. www.dallmeier.com...

  • Page 53: Weather-Proof Variant

    The wall mount bracket shown below (Fig. 7-20) is for demonstra- tion purposes only. For the installation and connection of the weather-proof variants, in principle, the use of the junction box DJB-115W is recommend- ed (optionally available). For detailed information, refer to the relevant documentations. www.dallmeier.com...
  • Page 54 Installation and Commissioning DDZ40(10)(20)-YY/HS/HD Cable harness Grounding cable Grounding cable Grounding connection Fig. 7-20 For pinout information, see chapter “Pin Assignment” on page 59. www.dallmeier.com...

  • Page 55: Connection And Login

    (128 MB or higher recommended) Sound Sound card or on-board sound chip (min. 16 bit) ethernet 100 Mbps Web browser Microsoft Internet Explorer (latest version) Software/Plugins Adobe Flash Player (latest version) JavaScript enabled Microsoft ActiveX enabled ActiveX-based Dallmeier control (latest version) www.dallmeier.com...

  • Page 56: Connection

    (and/or live audio output) simultaneously. • a DirectX compatible graphics card and the ActiveX-based Dallmeier control are not required for the configuration without live video display or live audio output. • the ActiveX-based Dallmeier control can be directly downloaded from the device.

  • Page 57: Login

     Configure the required settings and finally click LoGoUt. For detailed descriptions of the configuration of the devices, refer to the separate documentations at www.dallmeier.com. Note that a new login is required after 5 minutes without user ac- tion.

  • Page 58: Maintenance

    Do not rub acrylic glass with a dry cloth. Do not use common glass cleaners. Avoid excessive rubbing. Dry gently with a clean dry cloth to avoid scratching the surface. www.dallmeier.com...

  • Page 59: 10 Pin Assignment

    (recommended mating connector: Weidmüller BL 3.50/02/180 SN) Fig. 10-2 In order to comply with the UL requirements, you have to use a UL-certified, Limited Power Source (LPS) Class 2 power supply unit when operating the device with 24/28 V AC. www.dallmeier.com...
  • Page 60 PoE+ (PoE conformity IEEE 802.3at) Audio ouT / IN (3.5 mm phone jack) Ring Sleeve Fig. 10-4 3.5 mm phone jack, for stereo plug (TRS) Green (Line-out, stereo) Pink (Line-In, stereo) Left channel Left channel Ring Right channel Right channel Sleeve Ground Ground www.dallmeier.com...
  • Page 61 5 V DC, max. 10 mA to GND I/O RS485 full duplex: Use Tx+/Tx− for data transmission from the camera to the controller. Use Rx+/Rx− for signal transmission from the controller to the camera. RS485 half duplex: Connect Tx+/Rx+ and Tx−/Rx−. www.dallmeier.com...

  • Page 62: Weather-Proof Housing

    (24 V AC, max. 3 A) Black: Power Camera Black/White: (24/28 V AC) Fig. 10-6 I/O cable pinout Notice Note that the built-in fan and heater of the weather-proof vari- ants must be separately supplied with 24 V AC (max. 3 A). www.dallmeier.com...

  • Page 63: 11 Technical Specifications

    (adapter for SDHC card separately available) Ethernet 1× RJ45, 10BASE-T-/100BASE-TX-PoE Programming interface Open API for 3rd party systems integration via ActiveX-based Dallmeier control (ONVIF compliant) Protocols Ethernet protocols IPv4, TCP, UDP, ARP, ICMP, DHCP, NTP, HTTP, RTSP, IGMP V2, FTP, SMTP, RTP, RTCP...
  • Page 64 −10°C to +40°C (14°F to 104°F) Weather-proof variant (Outdoor): −30°C to +50°C (−22°F to 122°F) Relative humidity 0% – 90% RH, non-condensing IP rating IP67 (weather-proof variant) Miscellaneous Approvals/certifications CE, FCC, UL, ACA, UVV-Kassen (DGUV Test), CB, DIN EN 50130-4 compliant www.dallmeier.com...

  • Page 65: 12 Technical Drawings

    DDZ40(10)(20)-YY/HS/HD Technical Drawings 12 Technical Drawings 146 mm (5.75") 227 mm (8.94") Fig. 12-1 In-ceiling mount variant www.dallmeier.com...
  • Page 66 Technical Drawings DDZ40(10)(20)-YY/HS/HD 146 mm (5.75") 166 mm (6.54") (1.11") (2.22") 28.3 mm 56.50 mm Fig. 12-2 Surface mount variant www.dallmeier.com...
  • Page 67 DDZ40(10)(20)-YY/HS/HD Technical Drawings 147 mm (5.79") 167 mm (6.57") 258.50 mm (10.18") Fig. 12-3 Weather-proof variant www.dallmeier.com...
