Summary of Contents for dallmeier DDZ3018-IM/HS

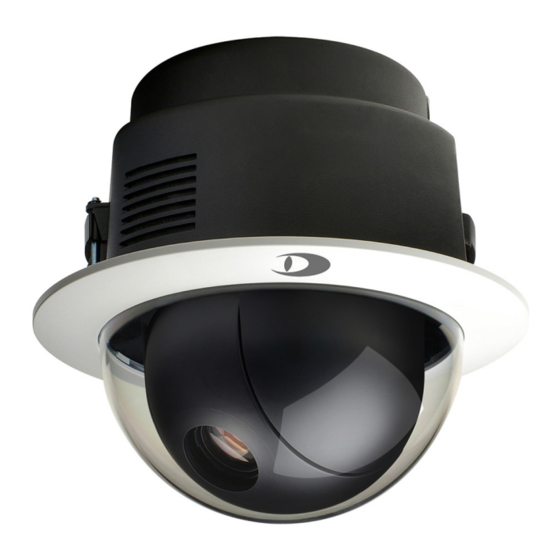

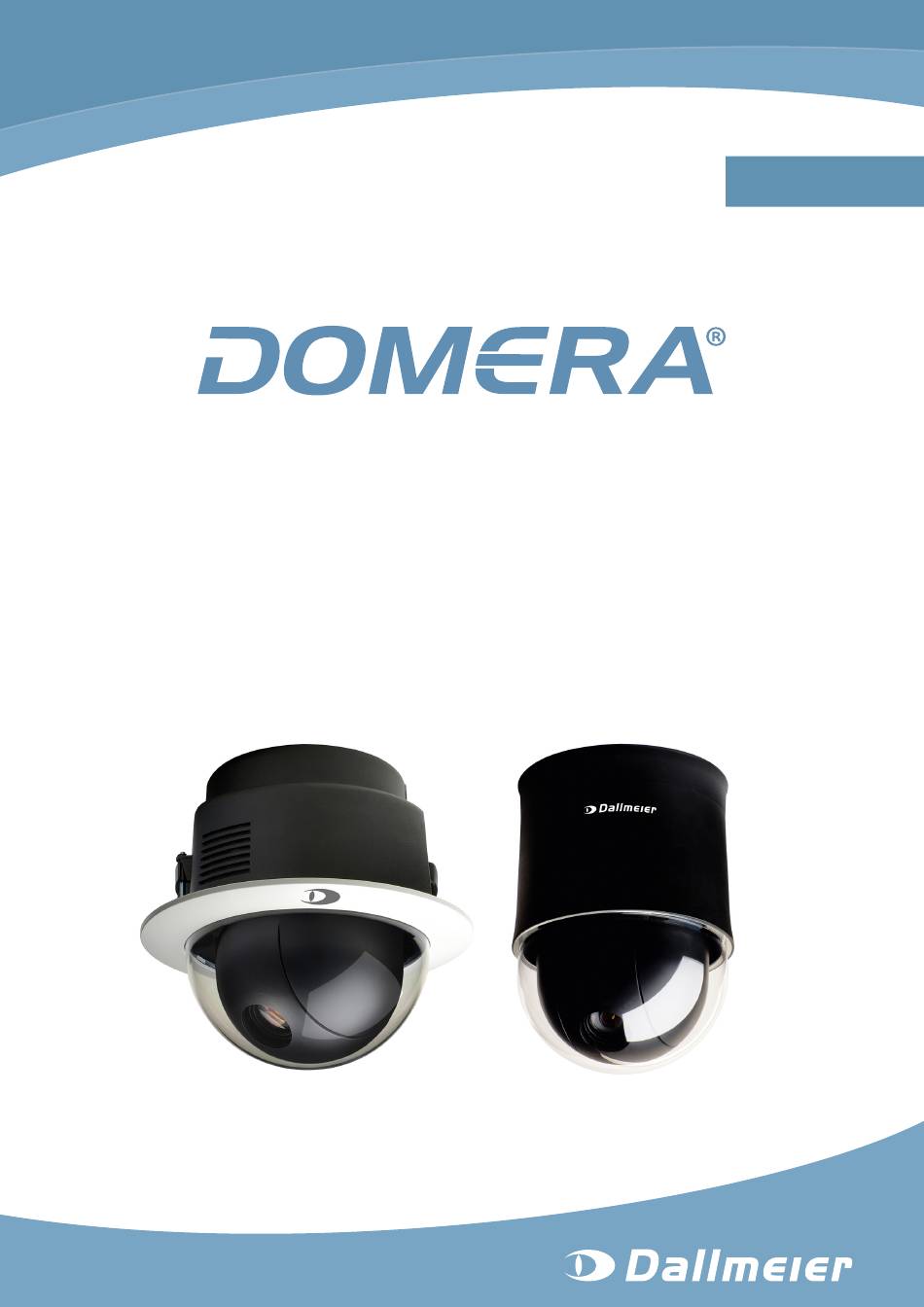

- Page 1 Installation and Configuration English IP Network PTZ Dome Camera System In-ceiling Mount Variant Surface Mount Variant BackBox BackPlate DDZ30IM-IP DDZ30SM-IP PTZ Dome Camera PTZ Dome Camera DDZ3018-IM/HS DDZ3018-SM/HS DDZ3026-IM/HS DDZ3026-SM/HS DDZ3036-IM/HS DDZ3036-SM/HS Rev. 2.0.1 / 100803...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
Wiring ......................26 Installation PTZ Dome Camera..............27 7.4.1 In-ceiling Mount Variant ................27 7.4.2 Surface Mount Variant ..................29 Commissioning .....................31 Connection and Login ................32 System Requirements...................32 Connection ....................32 Login ......................34 Basic Settings .....................36 Language ......................36 System Time ....................36 9.2.1 Manual Configuration ..................37 www.dallmeier.com... - Page 4 Data Display....................68 13.2.1 Filter ......................68 13.2.2 Position ......................69 PTZ Configuration ..................71 14.1 Boot Sequence .....................72 14.2 Normal Display (OSD) ..................73 14.3 Dome Menu (Main Menu) ................74 14.3.1 Preset......................75 14.3.1.1 Edit Title ......................76 14.3.1.2 Edit Position ....................77 14.3.1.3 AE Control.....................77 www.dallmeier.com...
- Page 5 Download ....................111 15.2.2 Upload......................112 15.2.2.1 Configuration Recovery ................112 15.2.2.2 Configuration Transfer to Several Devices ..........112 15.3 Info ......................114 Image Transmission .................115 16.1 Web Browser ....................115 16.2 RTSP Application ..................115 Maintenance ....................117 Vignetting ....................118 Menu Structure..................119 Technical Data ...................121 www.dallmeier.com...
- Page 6 DDZ30XX-YY/HS/IP 20.1 PTZ Dome Cameras ...................121 20.2 BackBox (DDZ30IM-IP) / BackPlate (DDZ30SM-IP) ........124 20.3 Complete System..................124 www.dallmeier.com...
-
Page 7: Introduction
This document applies to the IP Network PTZ Dome Camera System with the following variants and device types: In-ceiling mount variant • BackBox DDZ30IM-IP • PTZ dome camera DDZ3018-IM/HS • PTZ dome camera DDZ3026-IM/HS • PTZ dome camera DDZ3036-IM/HS Surface mount variant • BackPlate DDZ30SM-IP •... -
Page 8: Conventions
Expressions in bold/italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. www.dallmeier.com... -
Page 9: Safety Instructions
System components Only use internal components that have been tested and approved by Dallmeier. Inappro- priate internal components can cause malfunctions, damages and data loss and can result in loss of warranty. - Page 10 Opening The housing of the unit may only be opened by qualified personnel for commissioning, inspection, maintenance and repair. Disposal Disconnect the unit from the power supply. Remove all connected devices. Return the unit to your respective sales partner. www.dallmeier.com...
-
Page 11: General Notes
Transportation and Packaging Store the original packaging for transportation at a later date. Dallmeier electronic is not responsible for damage resulting from unprofessional/improper transportation. The goods should only be shipped in their original packaging. -
Page 12: Warranty
Data” on page 121. Warranty The terms and conditions valid at the signing of the contract shall apply. Certifications Following approvals/certifications were valid at the time of document compilation. Refer to www.dallmeier.com for possible updates. • CE • FCC • UL • ACA •... -
Page 13: Requirements
• The quality of the video image depends on the lens, the lighting and the used monitor. • Automatic white balance depends on the lighting used and can cause colour distor- tions in artificial light. • Poor lighting can lead to faulty white balance. www.dallmeier.com... -
Page 14: Views And Connection Assignment
Thread for PG16 cable gland Ceiling clamp Ceiling clamp Trim ring Bubble Fig. 5-1 Thread for M4 screw eye bolt Thread for PG16 cable gland Ceiling clamp Ceiling clamp Slot for locking tab Locking tab Trim ring Bubble Fig. 5-2 www.dallmeier.com... - Page 15 Fig. 5-3 Slot for locking clip Slot for locking tab M4 locking screw for ceiling clamp IP board M4 locking screw for ceiling clamp Slot for locking tab Slot for locking tab Slot for locking clip Fig. 5-4 Top view www.dallmeier.com...
-
Page 16: Surface Mount Variant
DDZ30XX-YY/HS/IP PTZ Dome Camera Locking clip Lens Locking clip M3 securing screw Fig. 5-5 Surface Mount Variant BackPlate Mounting hole Mounting hole Locking clip Locking clip Cable hole IP board Mounting hole Fig. 5-6 Top view www.dallmeier.com... - Page 17 DDZ30XX-YY/HS/IP Cable hole Locking clip Thread for housing ring Fig. 5-7 Locking clip Thread for housing ring Fig. 5-8 www.dallmeier.com...
-
Page 18: Ip Board
Slot for locking clip M3 securing screw Fig. 5-9 IP Board Ethernet (RJ45 jack) Plug in connector (20-pin) Analogue video preview output (cinch) Audio IN (3.5 mm phone jack) 24 V AC input terminal (2-pin Weidmüller male connector) Fig. 5-10 www.dallmeier.com... -
Page 19: Rotary/Dip Switch
DDZ30XX-YY/HS/IP Rotary/DIP Switch PTZ dome camera (bottom view) Male connector (20-pin) Fig. 5-11 Rotary switch: Dome ID (camera address 1 – 999) DIP switch: Signal transmission, Video standard, Baud rate, Protocol www.dallmeier.com... -
Page 20: Basic Settings Ptz Dome Camera
For a correct signal transmission the PTZ dome camera must be configured accordingly. Set the type of signal transmission with the DIP switch S4 (see Fig. 5-11 on page 19). Signal transmission Analogue Reserved IP based Table 6-2 Signal transmission www.dallmeier.com... -
Page 21: Video Standard Ptz Dome Camera
Set the baud rate with the DIP switch S5 (see Fig. 5-11 on page 19). Baud rate 2400 Bd 4800 Bd 9600 Bd 19200 Bd 38400 Bd 57600 Bd 115200 Bd 230400 Bd Table 6-4 Baud rate Default setting (recommended) www.dallmeier.com... -
Page 22: Protocol
For the operation with the BackBox/BackPlate the protocol DCCP must be selected. Set the protocol with the DIP switch S6 (see Fig. 5-11 on page 19). Protocol AUTO selection (no parity) AUTO selection (even parity) DCCP RESET Table 6-5 Protocol Dallmeier Camera Communication Protocol www.dallmeier.com... -
Page 23: Installation And Commissioning
Screw the PG16 cable gland in the appropriate thread. Connect all required cables (see section “Wiring” on page 26). Insert the BackBox into the cut out recess (Ø 189 mm). Not included in the standard scope of delivery. www.dallmeier.com... - Page 24 Safety wire Fig. 7-2 Tighten the M4 locking screw of both ceiling clamps in clockwise direction using a Phil- lips screwdriver. Ceiling clamp Ceiling clamp Suspended ceiling Phillips screwdriver Fig. 7-3 Locked ceiling clamp Locked ceiling clamp Fig. 7-4 www.dallmeier.com...
-
Page 25: Installation Backplate
Run the required cables suspended from the ceiling through the cable hole of the BackPlate. Mount the BackPlate with 3 screws to the ceiling. Ceiling Drill hole Anchor Mounting screw Fig. 7-5 Connect the required cables (see section “Wiring” on page 26). www.dallmeier.com... -
Page 26: Wiring
If required, connect a CVBS monitor to the analogue video preview output (cinch). If required, connect an audio device (e.g. microphone) to Audio IN (3.5 mm phone jack). Connect the device via the 24 V AC input terminal (2-pin Weidmüller male connector) to an appropriate power supply unit. www.dallmeier.com... -
Page 27: Installation Ptz Dome Camera
The yellow marked locking clip of the PTZ dome camera must be aligned with the yellow marked slot in the BackBox. The 20-pin male connector of the PTZ dome camera (see Fig. 5-11 on page 19) must match the 20-pin plug-in connector of the IP board (see Fig. 5-11 on page 19). www.dallmeier.com... - Page 28 Fig. 7-8 Assemble the trim ring (with bubble) to the BackBox. For this purpose fit the 3 locking tabs of the trim ring into the appropriate slots of the BackBox and then tighten the trim ring in clockwise direction. www.dallmeier.com...
-
Page 29: Surface Mount Variant
20-pin plug-in connector of the IP board (see Fig. 5-11 on page 19). Secure the PTZ dome camera. For this purpose tighten both M3 securing screws of the PTZ dome camera in clockwise direction using a Phillips screwdriver. www.dallmeier.com... - Page 30 DDZ30XX-YY/HS/IP Thread for housing ring Housing ring (with bubble) Fig. 7-10 Tighten the housing ring (with bubble) in clockwise direction onto the BackPlate. www.dallmeier.com...
-
Page 31: Commissioning
Possible damage to the PTZ dome camera! Remove the lens protection of the PTZ dome camera before commis- sioning. Connect the power supply unit to the mains socket. The device is starting and ready for operation after a short self test. www.dallmeier.com... -
Page 32: Connection And Login
• a more powerful PC is required if several devices are configured with live video display simultaneously. • a DirectX compatible graphics card and the Dallmeier control for ActiveX are not required for the configuration without live video display. • the Dallmeier control for ActiveX can be downloaded from the Dallmeier Partner Forum. - Page 33 Activate the Networks with routers (NAT) checkbox if required. Adjust the live video resolution (D) if required. This resolution setting only affects the live video display in the web browser and is not re- lated to the encoder settings. www.dallmeier.com...
-
Page 34: Login
Change the factory default password as soon as possible. Click CONFIG in the user interface of the live mode. The login dialogue is displayed. Fig. 8-2 Enter the Username if required. Enter the Password. Confirm with OK. Dallmeier Video Protocol www.dallmeier.com... - Page 35 G Configuration menu H Configuration dialogues Note that • the live video display in the configuration mode can be disabled if only a low bandwidth is available. • a new login is required after 5 minutes without user action. www.dallmeier.com...
-
Page 36: Basic Settings
The system time can be set manually or synchronized with a UTC time server. The time zone must be set in both cases. Open the Time settings dialogue via Common Settings > Time .. Select the Time zone tab. Fig. 9-2 Set the Time zone. Confirm with OK. www.dallmeier.com... -
Page 37: Manual Configuration
Note that the time server must always be accessible via the network. Select the Time server tab. Fig. 9-4 Enter the IP address of the time server. Activate the Use time server checkbox to enable the UTC time server synchronization. Confirm with OK. www.dallmeier.com... -
Page 38: Camera Name
The authentication with the group password is also possible in “User login” mode. Open the Login options dialogue via Common settings > User management > Login options ..Fig. 9-6 Set the Login mode. Confirm with OK. Dallmeier video management software www.dallmeier.com... -
Page 39: User Groups
..Fig. 9-7 Select the tab of the relevant group. Enter a new Group name if required. Enter a New password. Repeat the new password in the Confirm password field. Finally confirm with Apply. www.dallmeier.com... -
Page 40: User
Select the tab of the relevant group. Click New. The New user dialogue is displayed. Fig. 9-9 Enter a new User name. Enter a New password. Repeat the new password in the Confirm password field. Finally confirm with OK. www.dallmeier.com... -
Page 41: Edit User
• certain rights can not be set to all permission levels. • certain rights are partially or fully relevant for external applications (e.g. DaVid) only. Open the Rights configuration dialogue via Common settings > User management > Rights ..Fig. 9-10 www.dallmeier.com... - Page 42 Find the relevant right (line). Change the permission level with a click on the symbol in the column of the relevant group. Proceed as described above for all rights and groups. Finally confirm with OK. www.dallmeier.com...
-
Page 43: 10 Network
The “Connection type > automatic” (Autonegotiation) is suitable for most applications. Bandwidth limit Limiting the bandwidth (maximum allowed peak bit rate) can be useful to prevent video artifacts or frame drops due to packet loss with low bandwidth connections. www.dallmeier.com... -
Page 44: Manual Configuration
The newly assigned IP address can be determined by the MAC address of the device with the IP-Finder or at the DHCP server. The IP-Finder must be executed in the same LAN where the device is located. IP-Finder: Dallmeier software for determination and configuration of network-compatible Dallmeier devices www.dallmeier.com... -
Page 45: Alarm Hosts
Activate the active checkbox to enable the messaging function. Confirm with OK. The item in the configuration menu and the title of the dialogue is automatically updated with the entered alarm host name after saving the settings. www.dallmeier.com... - Page 46 Enter the e-mail addresses of the Recipients (separated by semicolon) to which the SMTP server should forward the e-mail. Enter the Subject and the Message of the e-mail. Dallmeier Video Protocol Dallmeier evaluation and management software for messages www.dallmeier.com...
- Page 47 Enter the full path to the directory where the live image should be saved to into the Folder path field. Ensure that read and write permissions are set for the specified directory and enough free disk space is available. www.dallmeier.com...
-
Page 48: Messages
Select the Messages tab. Fig. 10-5 Select all relevant messages which should be sent out by activating the related check- box. If necessary, set the Interval of FTP image uploads (see below). Confirm with OK. www.dallmeier.com... -
Page 49: Scheduler
Click Scheduler ..The Week timer tab is displayed. Fig. 10-6 Light gray areas in the week timer represent active periods. During active periods the messaging function is enabled. By default, the entire period in the week timer is active. www.dallmeier.com... - Page 50 Repeat the last two steps until all relevant inactive periods are deleted. It is also possible to delete sections (at least 15 minutes) between inactive periods. Confirm with OK if you do not want to make any additional settings. www.dallmeier.com...
- Page 51 Note that exceptions will overwrite the settings of the entire relevant day in the week timer. Select the Exceptions tab. Fig. 10-8 Click New ..The Calendar is displayed. Fig. 10-9 Select a date. Confirm with OK. The selected date is added to the exceptions list. www.dallmeier.com...
- Page 52 During active periods the messaging function is enabled. In the example shown (Fig. 10-11) the period from 02:00 to 06:00 am is active. During this period messages are sent out. Confirm with OK if you do not want to make any additional settings. www.dallmeier.com...
-
Page 53: Copy Exceptions
10.2.3.2 Copy Exceptions Select a date from the exceptions list. Click Copy ..The Calendar is displayed. Fig. 10-12 Select the new date to which you want to copy the exception settings. Confirm with OK. www.dallmeier.com... -
Page 54: Copy
The related dialogue is displayed. Fig. 10-14 Click Copy ..The configuration menu is expanded with the name of the copied alarm host entry with the addition (1) (represents copy 1) and the related dialogue of the copy is displayed. www.dallmeier.com... -
Page 55: Delete Alarm Host Entry
Click Network > Alarm hosts. Select the alarm host entry to be deleted from the configuration menu. The related dialogue is displayed. Fig. 10-16 Click Delete. The alarm host entry is deleted and its menu item removed from the configuration menu. www.dallmeier.com... -
Page 56: Video Streaming
The video streaming function provides the streaming of audio and video data to the net- work without requesting the data actively with a RTSP (Real Time Streaming Protocol) or DaVid Protocol capable client (e.g. Dallmeier recorder or PView). Note that the format of the RTP payload to be transported must correspond with the encod- ing standard. -
Page 57: Transfer Method
The packets have to be transferred only once, the distribution to the members of the group is done by specially configured routers. A member of the group only receives the data packets if it is aware of the IP multicast ad- www.dallmeier.com... -
Page 58: Ttl
IP packets from breaking through the limits of the LAN and being sent to the WAN (TTL = 1). According to requirements a TTL value from 1 – 255 can be entered. When entering 0 (zero), the default values are used (TTL = 1 for multicast, TTL = 64 for unicast). www.dallmeier.com... -
Page 59: 11 Video
The video settings have a direct effect on the image recording and not only on the image display on the monitor of an evaluation station. Open the Video settings dialogue via Video > Video settings ..www.dallmeier.com... - Page 60 Only when the fluctuation exceeds a set limit, the pixel will be filtered out. Note that setting the filter for fast-moving objects may result in motion blur. This drawback is due to technical reasons and cannot be completely avoided. www.dallmeier.com...
-
Page 61: Encoder Settings
High image compression Small data volume Poor image quality High bit rate Low image compression Large data volume High image quality The most requirements in CCTV systems are met with a bit rate between 4 and 6 Mbps. www.dallmeier.com... - Page 62 “Deinterlacing”. However, the playback thus may be jumpy. In this case disabling this function may, in cer- tain circumstances, result in a smoother playback. www.dallmeier.com...
-
Page 63: Encoder 2
The higher the audio bit rate, the better the audio quality. A higher bit rate, however, requires more hard disk space than a lower bit rate. Select the Audio tab. Fig. 11-5 Select the Audiobitrate. Confirm with OK. www.dallmeier.com... -
Page 64: 12 Motion Detection
The Level SAD (SAD = Sum of Absolute Differences) defines the mini- mum level of alteration necessary to mark an image sector as altered. Major changes required Minor changes required Dallmeier system for the intelligent search of motion events within an image www.dallmeier.com... -
Page 65: Smartfinder
Function disabled 12.1 SmartFinder To enable the intelligent search for motion events within an image with a Dallmeier re- corder, SmartFinder has to be activated. Activate the Enable SmartFinder checkbox. Fig. 12-2 Note the explanations below. -
Page 66: Active Areas
“Encoder 2” is active (see section “Encoder Settings” on page 61). Click Active areas. The Active areas / Encoder 1 dialogue is displayed. Fig. 12-3 Active areas (red) Button Pencil: select active (red) areas Button Eraser: select inactive (green) areas www.dallmeier.com... - Page 67 Move the mouse pointer over the image area, click and hold the left mouse button and draw a rectangle over the relevant area. Release the mouse button. If necessary, repeat the last two steps until all active areas are selected. Confirm with OK. www.dallmeier.com...
-
Page 68: 13 Interfaces
13.2.1 Filter The external transferred data can be filtered before embedding. The filtering (selection) only takes effect on external sent data. Open the Data display - Filter dialogue via Interfaces > Data display > Filter ..www.dallmeier.com... -
Page 69: Position
Duration (frames). 13.2.2 Position The embedded data can be positioned for displaying in live mode with DaVid Protocol ca- pable devices/applications. Open the Data display - Position dialogue via Interfaces > Data display > Position ..Fig. 13-3 www.dallmeier.com... - Page 70 DDZ30XX-YY/HS/IP The right-hand side of the dialogue (blue rectangle with Dallmeier logo) represents a screen for displaying live videos with full “PAL” or “NTSC” resolution. The white lines illustrate the stylized graphical user interface (GUI) of a typical application for displaying live videos.
-
Page 71: 14 Ptz Configuration
C Manual control of zoom, iris and focus Change selected menu items D Display PTZ configuration menu in live video E Exit submenu without saving, close main menu F Save PTZ configuration (Backup Data) G Restore PTZ configuration (Restore Data) www.dallmeier.com... -
Page 72: Boot Sequence
DDZ30XX-YY/HS/IP 14.1 Boot Sequence The boot sequence displays information of the PTZ dome camera for service or trouble shooting purposes. Dallmeier H/W Ver :Vx.x S/W Ver :Vx.x Con. Type :IP :0001 Baud rate :xxxx bps Protocol :DCCP Tilt :Origin set OK... -
Page 73: Normal Display (Osd)
Click Zoom − (WIDE) to zoom out. Click Iris + (IRIS OPEN) to open the iris. Click Iris − (IRIS CLOSE) to close the iris. Click Focus + (FAR) for far focusing. Click Focus − (NEAR) for near focusing. www.dallmeier.com... -
Page 74: Dome Menu (Main Menu)
Click Iris + (IRIS OPEN) to open a submenu, to execute a command or to save settings. Click Iris − (IRIS CLOSE) to exit a (sub)menu (without saving). Click Back (ESC) to exit a (sub)menu without saving or to close the main menu. www.dallmeier.com... -
Page 75: Preset
(see chapter “Technical Data” on page 121). The video motion detection function does not operate at IP based operation. To run a stored preset, go to Run Function in the main DOME MENU. www.dallmeier.com... -
Page 76: Edit Title
Click Iris + or Zoom + / Zoom − to set the selected character. The cursor in the title line moves to the next digit position automatically. To delete all characters, select and execute Delete All. Execute Save and Exit. www.dallmeier.com... -
Page 77: Edit Position
Click IRIS + to save the settings. 14.3.1.3 AE Control See section “AE Control” on page 95. When you enter the “AE Control“ menu, the PTZ dome camera will move to the saved pre- set position if the selected preset number is saved before. www.dallmeier.com... -
Page 78: Motion Setup
Select the Output which should be activated when a motion occurs. Select the Position of the motion detection area. If necessary, edit the motion detection area settings in the Area Setup (see below). Execute Save and Exit. www.dallmeier.com... - Page 79 IRIS OPEN for size IRIS OPEN for size IRIS CLOSE to exit IRIS CLOSE to exit Repeat the last steps until the motion detection area settings meet your requirements. Click Iris − to exit the Area Setup. www.dallmeier.com...
-
Page 80: Scan
Position” on page 77). Edit the scan direction (Dir). Set the Swap option. Edit the Dwell time. Execute Save and Exit. To run a stored scan, go to the Run Function in the main DOME MENU. www.dallmeier.com... -
Page 81: Tour
TOUR: Function number SP (Speed) Normal Mode and Velocity Fast V1 – V8: Diagonal mode and Velocity 1 (low) to 8 (high) DW (Dwell) Dwell time: 03 – 99 sec Displays 16 characters of the predefined function title TITLE www.dallmeier.com... -
Page 82: Pattern
Save and Exit Select the Number (NO) of the pattern. If column SEC is not 000, a recording is already saved at the selected pattern number. Click Iris +, to open the PATTERN AREA SETUP menu. The recording starts. www.dallmeier.com... - Page 83 If the total recording time reaches 480 seconds, the recording is stopped automatically. When you start to record again, the previous data will be overwritten. Execute Save and Exit. To run a stored pattern, go to the Run Function in the main DOME MENU. www.dallmeier.com...
-
Page 84: Actions
The lower number (0 – 8) has higher priority. NO (Normally Open) NC (Normally Closed) Ignore OFF: Relay out 1 R01: Relay out 2 R02: No output OFF: HLD (HOLD) Alarm will be held for programmed time (001 to 255 seconds) www.dallmeier.com... -
Page 85: Alarm List
(see section “Date/Time” on page 101) Displays in 24-hour format only TIME Alarm input number ALARM A001: Alarm input 01, A002: Alarm input 02 …, A008: Alarm input 08 M001: Motion detection alarm at preset 01 (see section “Motion Setup” on page 78), www.dallmeier.com... -
Page 86: Clear Alarm List
The SCHEDULE ACTION SETUP allows you to schedule the automatic execution of a func- tion. SCHEDULE ACTION SETUP Action Number Function Type :---- Function Number :--- Function Status :--- Action Active Action Title Action Day :HSMTWTFS Start Time :00:00 AM Add Action To List Delete Action Exit Up to 99 Action Number www.dallmeier.com... - Page 87 A scheduled action has no duration. You should set a second action to end the previous action. For example, suppose you want to operate the camera in black and white mode after 10:00 pm and in Day/Night auto mode from 06:00 am every day, then follow these steps: www.dallmeier.com...
- Page 88 OFF: The action will not occur on a day of the week. Sets all days to ON for your convenience. All On Sets all days to OFF for your convenience. All Off Select the relevant day. Select the relevant option. Execute Save and Exit. www.dallmeier.com...
-
Page 89: Schedule Action List
The AREA TITLE SETUP allows the assignment of specific names for programmed cam- era angles between Start and End position. Thus, for example, for the screen shown below, “ABC” will be displayed on the screen when the camera is positioned between 124.3° and 359.5° under 90° vertically. www.dallmeier.com... - Page 90 Select Previous or Next to list previous or next area titles. If the PTZ dome camera is positioned over 90° vertically, first move the PTZ dome camera to 90° vertically. Otherwise, the PTZ dome camera moves to 90° vertically automatically when you edit the position. www.dallmeier.com...
-
Page 91: Privacy Zone
Click IRIS + to enter the PRIVACY AREA SETUP. PRIVACY AREA SETUP CONTROL Press IRIS-OPEN to Save ---.-,---.- --.-X Edit the position and the zoom factor to set the privacy zone area. Click IRIS + to save the settings. www.dallmeier.com... -
Page 92: Display
The following settings are available for each label except Alarm. Label is not displayed when activated. Label is permanently displayed when activated. Label is displayed for the selected seconds after activation. 2, 5, 10sec For the Alarm and Date/Time options only ON and OFF are selectable. www.dallmeier.com... -
Page 93: Edit Dome Title
You can assign up to 8 characters (see section “Edit Title” on page 76). Edit Title DOME-ID- 1234567890 Space ABCDEFGHIJ Backspace KLMNOPQRST Insert UVWXYZ()-/ Delete abcdefghij Delete All klmnopqrst Exit uvwxyz*,.: Save and Exit Digit position D Current cursor position www.dallmeier.com... -
Page 94: Camera Setup
Auto focus is not carried out even when the brightness level changes Approximate distance the focus control starts to operate from. Focus Limit NOTICE Possible damage to the lens by high mechanical stress. Do not use the auto focus function (AUTO) in 24-hour operation. www.dallmeier.com... -
Page 95: Wb Control
B GAIN Use the AUTO mode for normal use. 14.3.7.3 AE Control AE CONTROL Mode :AUTO Slow shutter :ON Iris :F3.4 Gain : 0dB Bright Shutter :1/50 Day/Night :Auto Bright Offset: 0 Back Light :OFF :OFF Save and Exit www.dallmeier.com... -
Page 96: Line Lock Control
Line Lock Control allows a synchronization of the vertical video frequency with the mains frequency. If line lock is enabled, vertical video rolling is prevented when switching between multiple cameras connected at a single monitor. If text is displayed slightly tinted on colour monitors, disabling line lock may fix this problem. www.dallmeier.com... -
Page 97: Camera Reset
14.3.7.5 Camera Reset This option provides the power reset of the camera module. Camera Reset Are you sure ? 14.3.7.6 Camera Default This option allows resetting the camera settings to its default values. Camera Default Are you sure ? www.dallmeier.com... -
Page 98: Password
If the passwords don’t match, the message Password is not changed is displayed. If so, try it again. If Enable Password is ON, the INPUT PASSWORD window is always displayed when try- ing to enter the DOME MENU. INPUT PASSWORD:0 UP/DOWN to Change TELE/OPEN to Enter RIGHT to Move www.dallmeier.com... -
Page 99: Setup
010 – 240 seconds Waiting Time Enable / Disable Enable The HOME FUNCTION applies to the predefined functions such as a preset, scan, tour or pattern after the PTZ dome camera has been idle for a programmed time (waiting time). www.dallmeier.com... -
Page 100: View Angle
When you enter the pan limit mode, the PTZ dome camera moves to 90° vertically auto- matically if the PTZ dome camera is positioned over 90° vertically. When you move over 90° vertically, the display of the pan angle is not being changed. www.dallmeier.com... -
Page 101: Date/Time
Time :01:00 AM 02:00 Time :01:00 AM 02:00 Save and Exit Save and Exit The start and end date of the daylight saving time can be set RELATIVE or FIXED. Select all necessary settings and execute Save and Exit. www.dallmeier.com... - Page 102 Select Yes and click IRIS +. To edit/overwrite a holiday, proceed as follows: Select the Number of the holiday you want to edit. Edit the selected holiday as described above. Select Add Holiday and click Iris +. www.dallmeier.com...
- Page 103 LIST HOLIDAY : ALL FIXED :01/01/2009 RELATIVE :11/20/2008 Previous Next Exit ALL, each month (JAN – DEC) List Holiday Select the LIST HOLIDAY type to sort the holiday list. Select Previous or Next to list previous or next holidays. www.dallmeier.com...
-
Page 104: Data
• Installation (see section “System” on page 107) • Alarm list Factory Default Are you sure ? Erase Programmed Data This function erases programmed data from the EEPROM of the selected PTZ dome cam- era. The origin offset value is not affected. www.dallmeier.com... - Page 105 Select YES and click IRIS +. Backup Data This function stores the setting values of the PTZ dome camera to the backup memory. If the connector board has no backup memory, the message No Memory Option! is displayed. www.dallmeier.com...
- Page 106 Are you sure ? Clear Backup Data This function clears all data of the backup memory. If the connector board has no backup memory, the message No Memory Option! is displayed. Clear Backup Data Version :Vx.x Camera :xxxx Are you sure ? www.dallmeier.com...
-
Page 107: System
CHANGE DOME ID DOME ID : Xxxx Save and Exit 0 – 3 Xxxx Dome ID set by the rotary switch S1 – S3 xxx: Changing Dome ID will reboot the Dome. New Dome ID is Xxxx Are you sure ? www.dallmeier.com... -
Page 108: Origin Offset
In order to enable the ORIGIN OFFSET set the Enable option to Enable. 14.3.9.7 Dome Reset If the PTZ dome camera does not position correctly after a longer period of operation, ex- ecute the Dome Reset function to re-calibrate the PTZ dome camera. Dome Reset Are you sure ? www.dallmeier.com... -
Page 109: Dome Information
PRESET, PATTERN, SCAN, TOUR, HOME, ALARM OUT, HEATER, AUTO PAN ON, OFF (only ALARM OUT), 5Min (only HEATER) Action Select the Function type. Select the Number of the function. Set the Action type. Execute Run. www.dallmeier.com... - Page 110 In order to be able to execute a function, the function must be saved first. When the Function type HEATER is run, the TTL (transistor-transistor logic) output of the connector is set to the high level for 5 minutes. www.dallmeier.com...
-
Page 111: 15 Service And Info
15.2.1 Download NOTICE If the configuration file should be transferred to several devices, the Net- work settings must not be exported. Open the Configuration file management dialogue via Service > Configuration file > Download ..Fig. 15-2 www.dallmeier.com... -
Page 112: Upload
However, the configuration of the Network settings must not be included in the configura- tion file. If these settings were included, the same IP address would be transferred to all devices. Since, however, every IP address in a LAN must be unique this would cause mas- sive problems in the network. www.dallmeier.com... - Page 113 Enter the First IP address and the Last IP address of the relevant device group. Enter the Username. Enter the Password. Confirm with OK. At the end of the transfer the list of transferred (or skipped) configuration settings is dis- played. www.dallmeier.com...
-
Page 114: Info
Click Info … in the configuration menu. Fig. 15-5 The following information is displayed: • Device type • Software version number • Version number of the encoder • Version number of the Linux Kernel • Serial number • Uptime www.dallmeier.com... -
Page 115: 16 Image Transmission
Port Note that • UDP provides data transmission with a relatively low delay. • packet loss (lack of images) may occur during transmission. • the used Encoder must be activated. • the RTSP live access right must be activated. www.dallmeier.com... - Page 116 “dual streaming“ functionality (two streams with different quality). The required bandwidth increases proportionally if several applications request the data of one encoder. In this case a multicast configuration should be preferred, because it does only require the bandwidth for one stream. www.dallmeier.com...
-
Page 117: 17 Maintenance
Clean the housing (outside) with a soft, dry and antistatic cloth. Do not use detergents. Clean the plastic bubble with water and some dishwashing agent using a soft, non-linting cloth or sponge. Do not wipe the bubble dry. www.dallmeier.com... -
Page 118: 18 Vignetting
CCD size. However, it has been verified that the vignetting will not be vis- ible in the case of a more than 90% effective image. For your reference, see the following diagram. B/20=5% B/20=5% A/20=5% A/20=5% : Normal scan display area : Under scan display area Fig. 18-1 www.dallmeier.com... -
Page 119: 19 Menu Structure
* The availability of the video motion detection function of the PTZ dome camera is depending on the built-in camera module (see chapter “Technical Data” on page 121). The video motion detection function does not operate at IP based operation. www.dallmeier.com... - Page 120 Dome Information Save and Exit RUN FUNCTION Function :--------- Number :--- Action :--- Exit Not available at IP based operation Alarm Action Not effective at IP based operation Alarm List Not effective at IP based operation Clear Alarm List www.dallmeier.com...
-
Page 121: 20 Technical Data
DDZ30XX-YY/HS/IP 20 Technical Data Following technical data was valid at the time of document compilation. Refer to www.dallmeier.com for possible updates. 20.1 PTZ Dome Cameras General Video standard PAL / NTSC Image capture Interlaced Image capture rate 25 fps (PAL) / 30 fps (NTSC) - Page 122 DDZ30XX-YY/HS/IP Built-in Camera Module (DDZ3018-IM/HS, DDZ3018-SM/HS): 480CP / 480C Sensor ¼" EXview HAD CCD Active picture elements PAL: 752 × 582 pixels, approx. 440000 pixels NTSC: 768 × 494 pixels, approx. 380000 pixels Horizontal resolution 480 TV lines (PAL) / 480 TV lines (NTSC) Lens F1.4 to F3.0 / f=4.1 to 73.8 mm...
- Page 123 DDZ30XX-YY/HS/IP Built-in Camera Module (DDZ3018-IM/HS, DDZ3018-SM/HS): 490DP / 490D Sensor ¼" EXview HAD CCD Active picture elements PAL: 752 × 582 pixels, approx. 440000 pixels NTSC: 768 × 494 pixels, approx. 380000 pixels Horizontal resolution 530 TV lines (PAL) / 530 TV lines (NTSC) Lens F1.4 to F3.0 / f=4.1 to 73.8 mm...
-
Page 124: Backbox (Ddz30Im-Ip) / Backplate (Ddz30Sm-Ip)
Weight BackBox: approx. 1020 g BackPlate: approx. 750 g 20.3 Complete System Communication Protocol DCCP (Dallmeier Camera Communication Protocol), Pelco D Configuration Via web browser, Dallmeier recorder, PView Operating temperature 0 °C to +50 °C (+32 °F to +122 °F) Storage temperature −20 °C to +60 °C (−4 °F to +140 °F) - Page 125 Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC) and the Council Directives relating to Low Voltage (2006/95/EC). The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 93051 Regensburg Germany The measurements were carried out in accredited laboratories.
